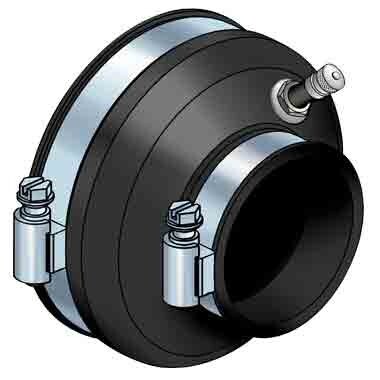

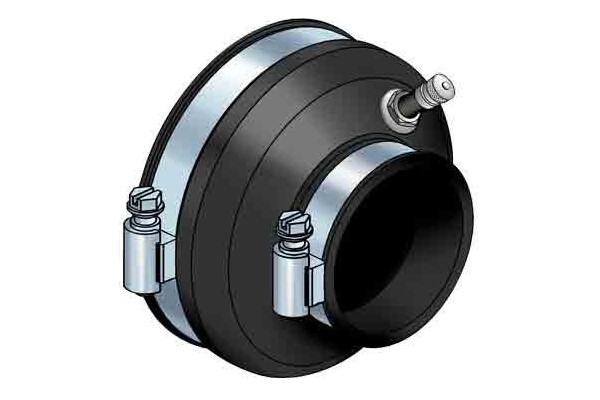

Test Boots

FlexWorks™ Test Boots are used to isolate and air-test the interstitial space between the primary and secondary pipe. One test boot is required for each pipe end.

Model # Application Weight
lbs. kg
TBA-0075 3/4" Test Boot with Air Stem

0.20

0.09

TBA-0100 1" Test Boot with Air Stem

0.20

0.09

TBA-0150 1.5" Test Boot with Air Stem

0.35

0.16

TBA-0200 2" Test Boot with Air Stem

0.40

0.18

TBA-0300 3" Test Boot with Air Stem

0.70

0.32

TBA-3015 3" to 1.5" Test Boot with Air Stem

0.35

0.16

TBA-3020 3" to 2" FRP Test Boot with Air Stem

0.40

1.18

TBA-4015 4" to 1.5" Test Boot with Air Stem

0.75

0.34

TBA-4020 4" to 2" Test Boot with Air Stem

0.75

0.34

TBA-4030 4" FRP or AXP to 3" Test Boot with Air Stem

0.70

0.32

TJ-200A Test Jumper for Air Stems
TLT-36A Test Line Termination Kit for Air Stems
TGA-15 Test Gauge Assembly
TCT-2509 Test Jumper for Double Wall Coupling (DPC and SBC Series)
TTT-2536 Test Tube Termination Kit for Double Wall Coupling (DPC and SBC Series)
