Top: Cast iron.
Body: Cast iron.
Carrier: Zinc-plated steel.
Stem: Copper-nickel-chrome-plated brass.
Poppet spring: Stainless steel.
Seal: M-19 O-ring.
Packing Nut: Brass, Teflon®-coated.
Inlet and outlet thread: 1 1/2" (4 cm) NPT (British threads available).
With black Duragard® E-coating

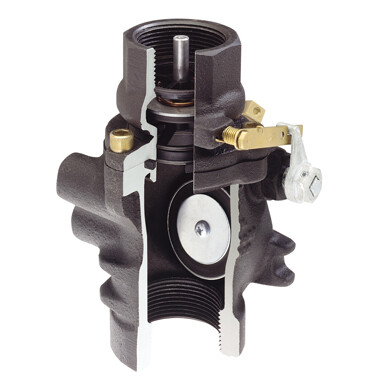

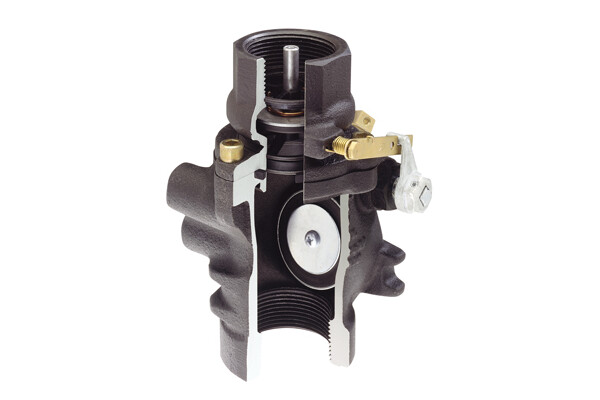

When mounting the OPW 10 Series Emergency Shut-off Valves, the anchoring system employed must withstand a force greater than 650 ft. pounds per valve. NFPA Code 30A, Automotive and Marine Service Station Code, requires that the automatic closing feature of emergency shut-off valves be checked at least once per year by manually tripping the hold-open linkage. OPW recommends the use of PISCES® Stabilizer Bar Support System for proper mounting of 10 Series Valves.
As per NFPA 30A, electrical supply to the submersible pump must always be disconnected before servicing meters, dispensers or emergency shut-off valves.
