Drop Spear Parking Sensors

Liquip offers drop ear parking sensors for loading arms,which provide an electrical signal to associated equipment to confirm the loading arm is safely stowed away and also to drain any residual product from the drop spear.

  • Ensures the loading arm is safely stowed away.
  • Drains residual product from the drop spear.
  • Promotes best practice OH&S procedures.
  • Keeps gantry and loading bay organised and tidy.
  • Can be fitted with prox switch, to detect when the arm is stowed.

Materials
All aluminium except for zinc plated steel fasteners.

Mounting
Mounts onto gantry framework using 12mm (1/2”) bolts and should be mounted where drop spear can come to rest inside container and remain unobtrusive.

Weight
2.16kg.

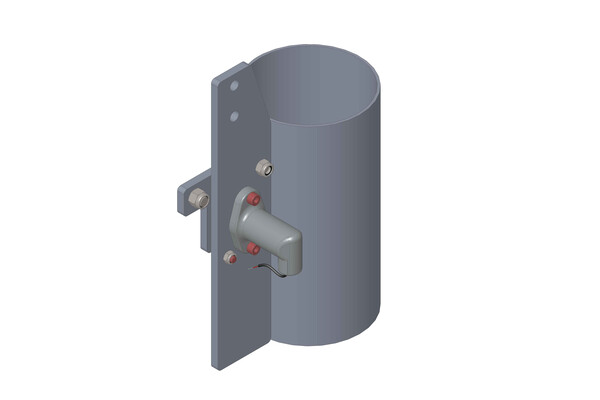

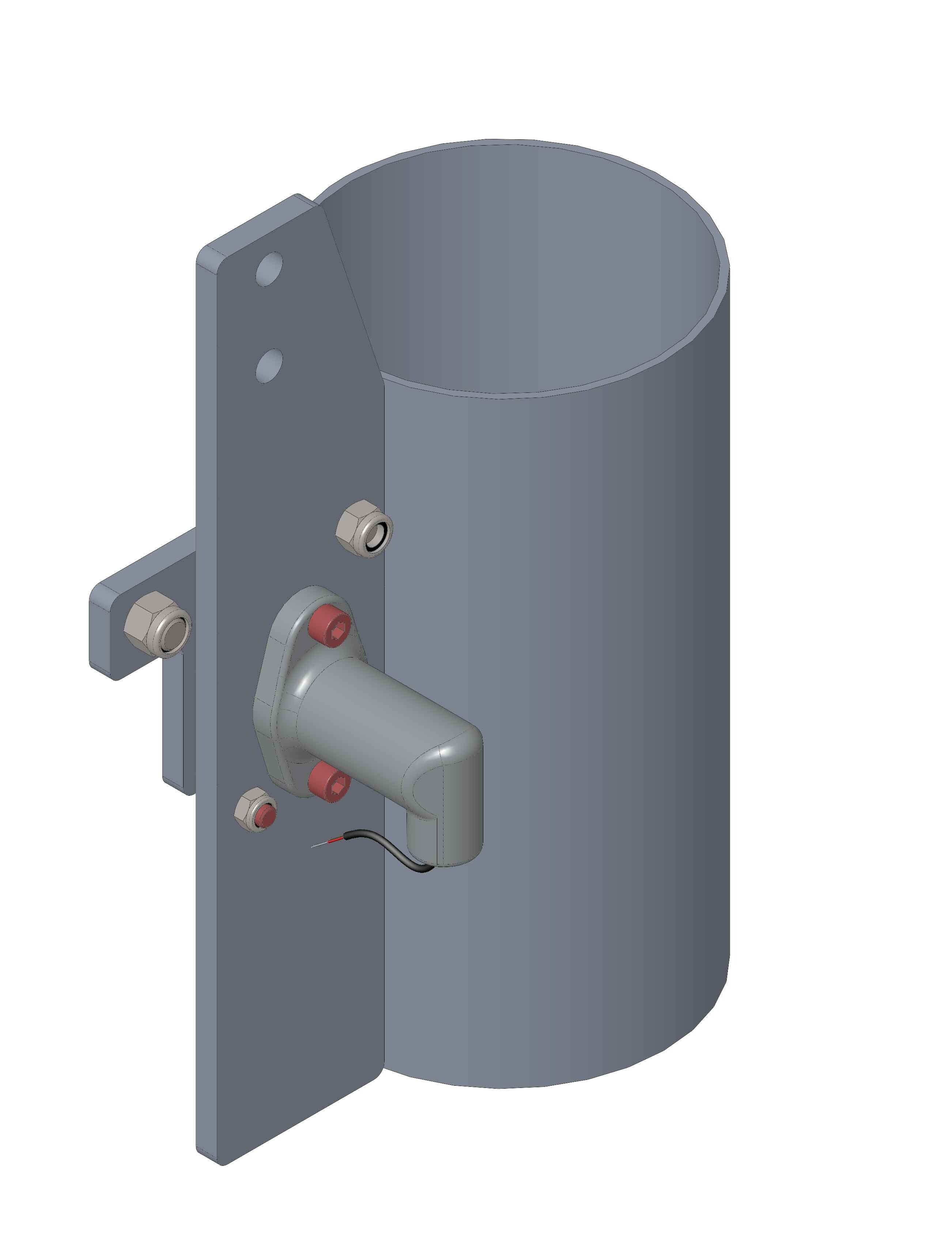

SPS100: Spear Parking Sensor Assembly.
