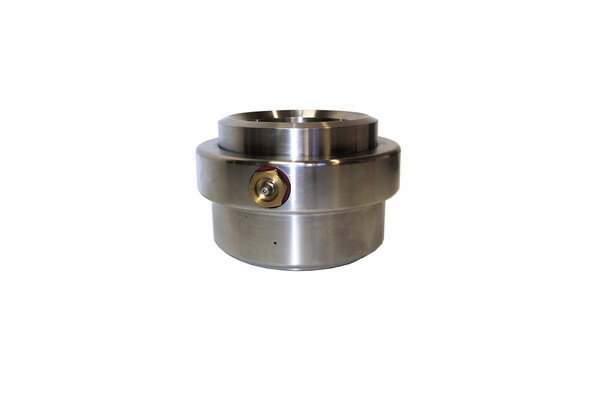

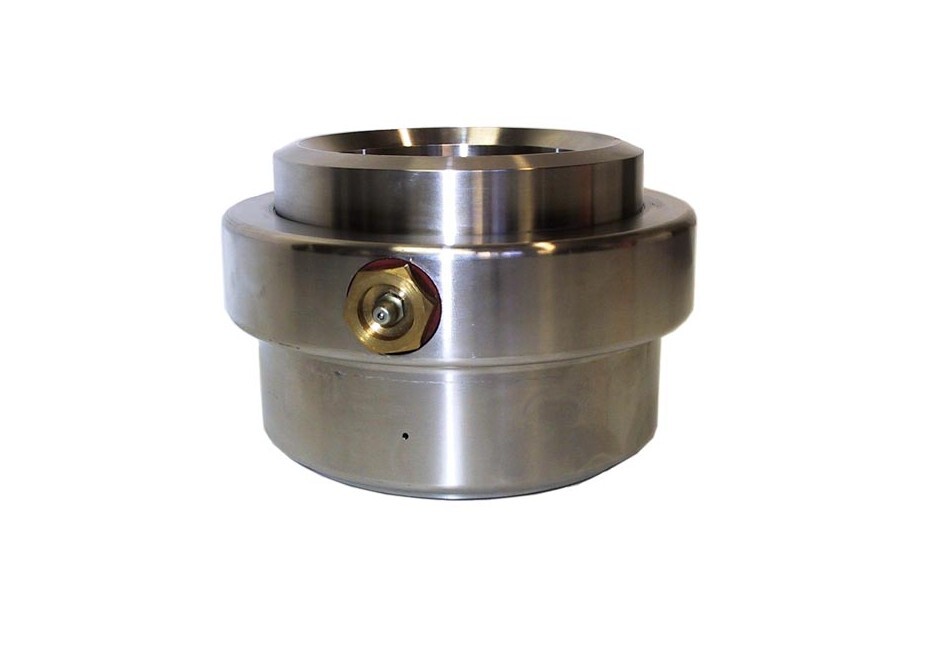

Weld On Swivels - SJW Series

The SJW range of weld on swivels are used for the fabrication of loading arms and pipework requiring up to 360° rotational joints.

They are machined from Nitrided Steel with pre-prepared ends for welding directly to pipe or tube.



  • Cost-effective way of achieving a rotating joint, for loading arms or other equipment requiring swiveling joints.

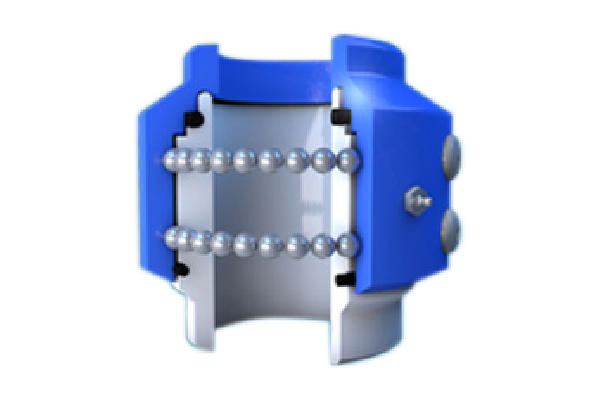

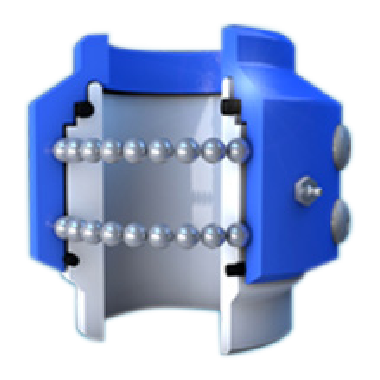

  • Sealing is enhanced by the purpose designed Viton primary seal, and two Viton O-rings, which isolate the bearing pack from product leaks.
  • In the unlikely event that the primary seal leaks, the  product is contained by the O-Ring before it can wash grease from the bearings causing them to fail in operation.
  • Any leaks are immediately visible from a tell-tale weep hole.
  • The greasing system incorporates the Liquip trade-mark pressure relief outlet to ensure correct lubrication, by ejecting old grease and particles that can cause wear.

Operating temperature
-20°C to +220°C.

Sizes
3" or 4".

Materials
Stainless Steel or Mild Steel.

Working pressure
1,100 kPa.

Test Pressure
1,650 kPa.

Mounting
Weld on.

Weight
4.3kg.

SJW075MMVZ - SJW Weld-On 3” Swivel Mild Steel, Viton Main Seal.

SJW100MMVZ - SJW Weld-On 4” Swivel Mild Steel, Viton Main Seal.

SJW075SSVZ - SJW Weld-On 3” Swivel Stainless Steel, Viton Main Seal.
