Euro-Line Bottom Valves



The EURO100-Line Bottom Valves are designed for increased safety, durability and service performance.

The EURO100-Line high flow bottom valves are available as Compact 100-1 series, Super Compact 100-2 series, 4” TTMA or TW 100-3 series and T-shape 100-4 series.

Features & Benefits
  • All EURO100-Line Bottom Valves in accordance with EN13308 (Non Pressure Balanced), EN13316 (Pressure Balanced), ADR and API RP 1004.
  • Available models: Compact, Super Compact, 4” TTMA or TW outlet and T-Shape.
  • Pressure balanced or non pressure balanced operation.
  • Sequenced or non-sequenced operation.
  • 4” or DN100 connection.
  • Lightweight pressure die-cast for improved strength and reduced weight.
  • Hard anodized and stainless steel internals.
  • Stainless steel filter/strainer.
  • Shear Groove to prevent spillage in case of an accident.
  • Superior flow rate:
    - up to 2.500 litres/minute.
    - no moving parts in the flow path.
  • Viton GLFT seals.
  • Valve service inside of the compartment.
  • Manually openable in case of emergency.

Recommended products for replacement

    Categories
    Technical Information

    Nominal size
    4” or DN 100.

    Working pressure
    5 bar (500 kPa).

    Operating air pressure
    4 bar.

    Maximum flow rate
    2.500 litre/minute.

    Seals
    Viton GFLT.

    Working temperature
    -20 °C to 70 °C.
    Other temperatures on request.

    Weight
    EURO100-1 4,6 kg.
    EURO100-2 5,5 kg.
    EURO100-3 4,7 kg.
    EURO100-4 5,8 kg.

    Ordering Information

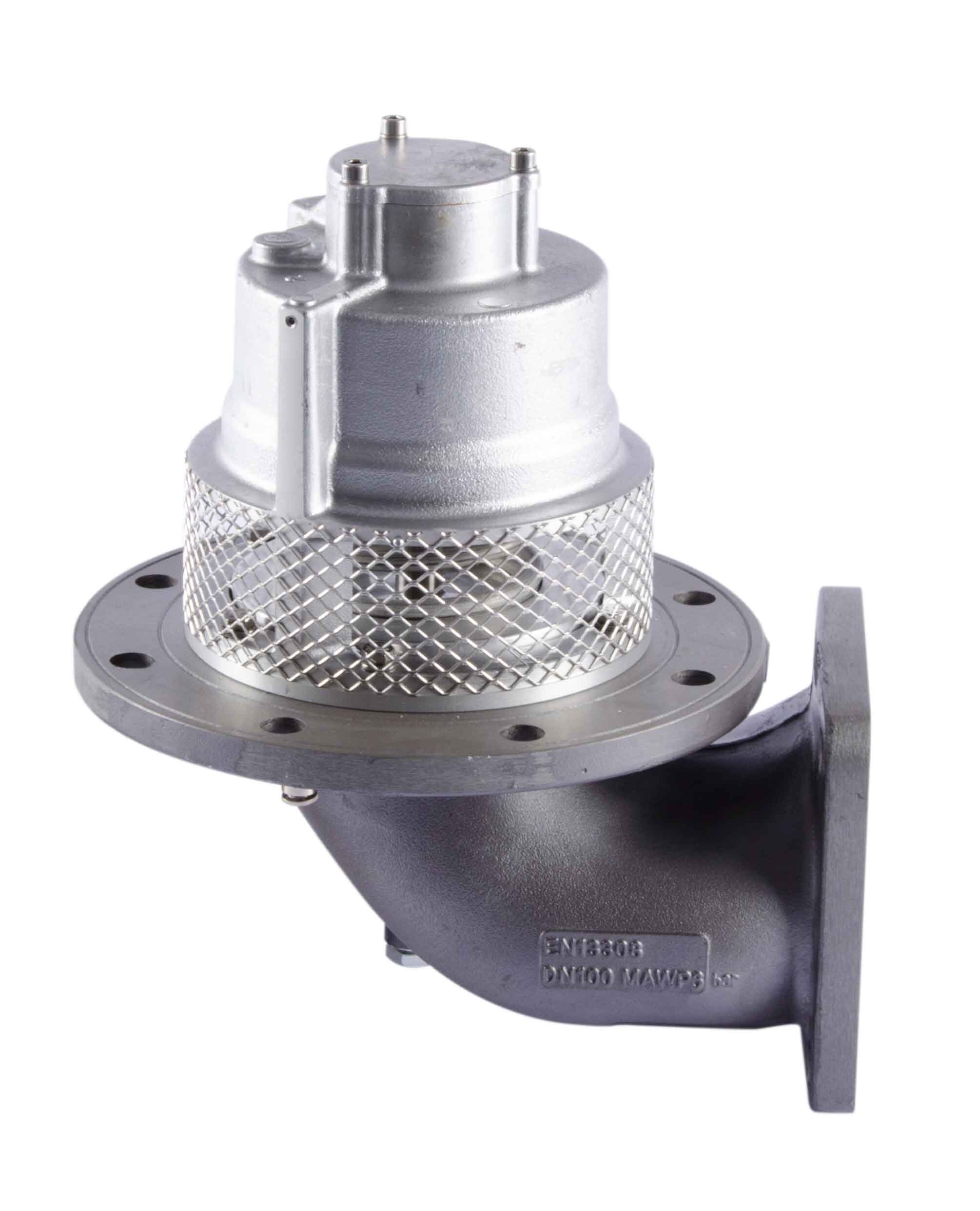

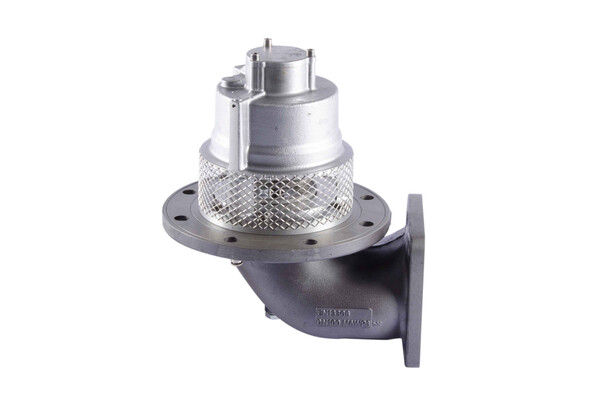

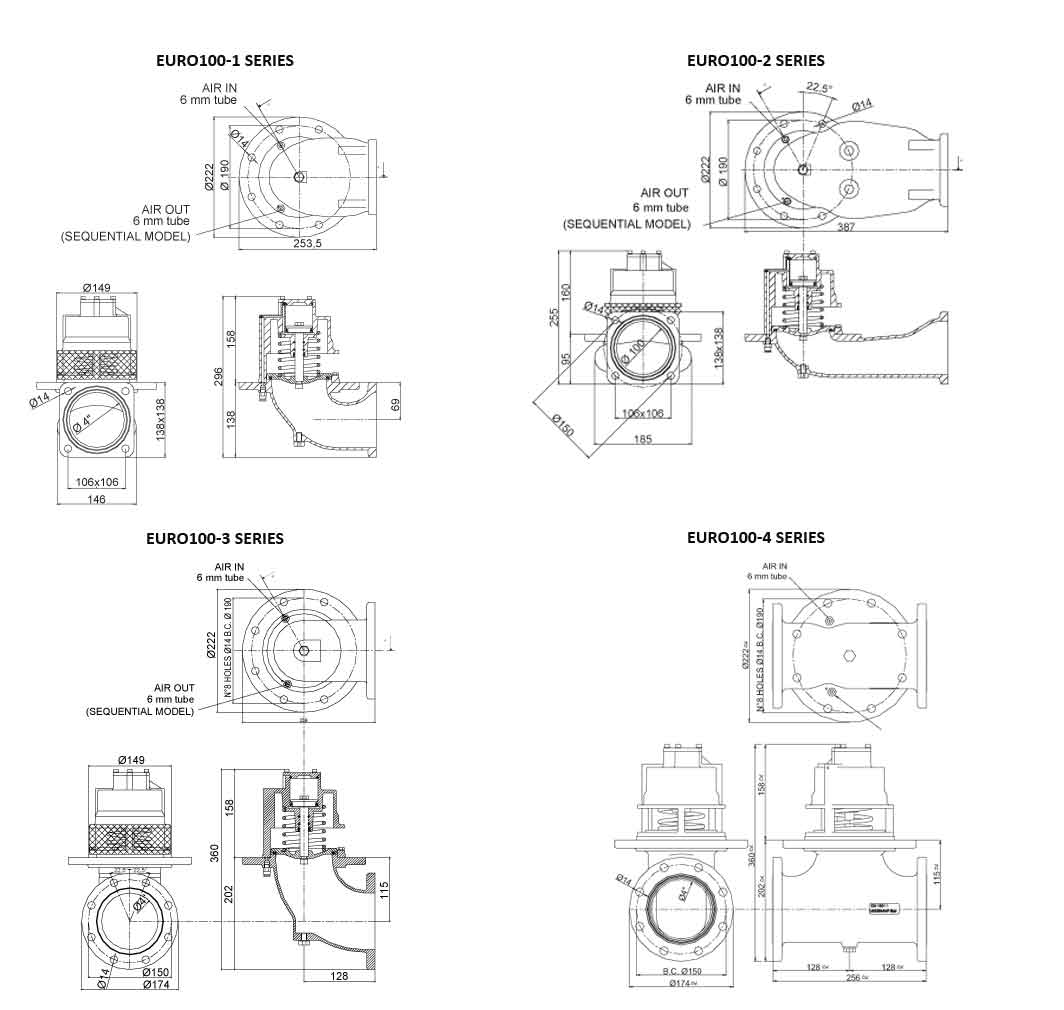

    Compact Model: EURO100-1 series
    EURO100-1-AL40: 4” non-pressure balanced, non sequenced.
    EURO100-1S-AL40: 4” non-pressure balanced, sequenced.
    EURO100-1B-AL40: 4” pressure balanced, non sequenced.
    EURO100-1BS-AL40: 4” pressure balanced, sequenced.

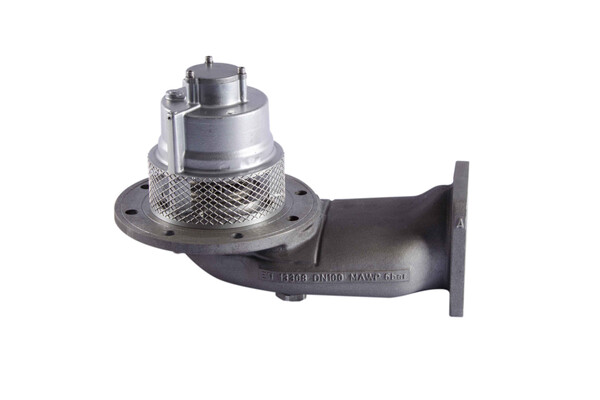

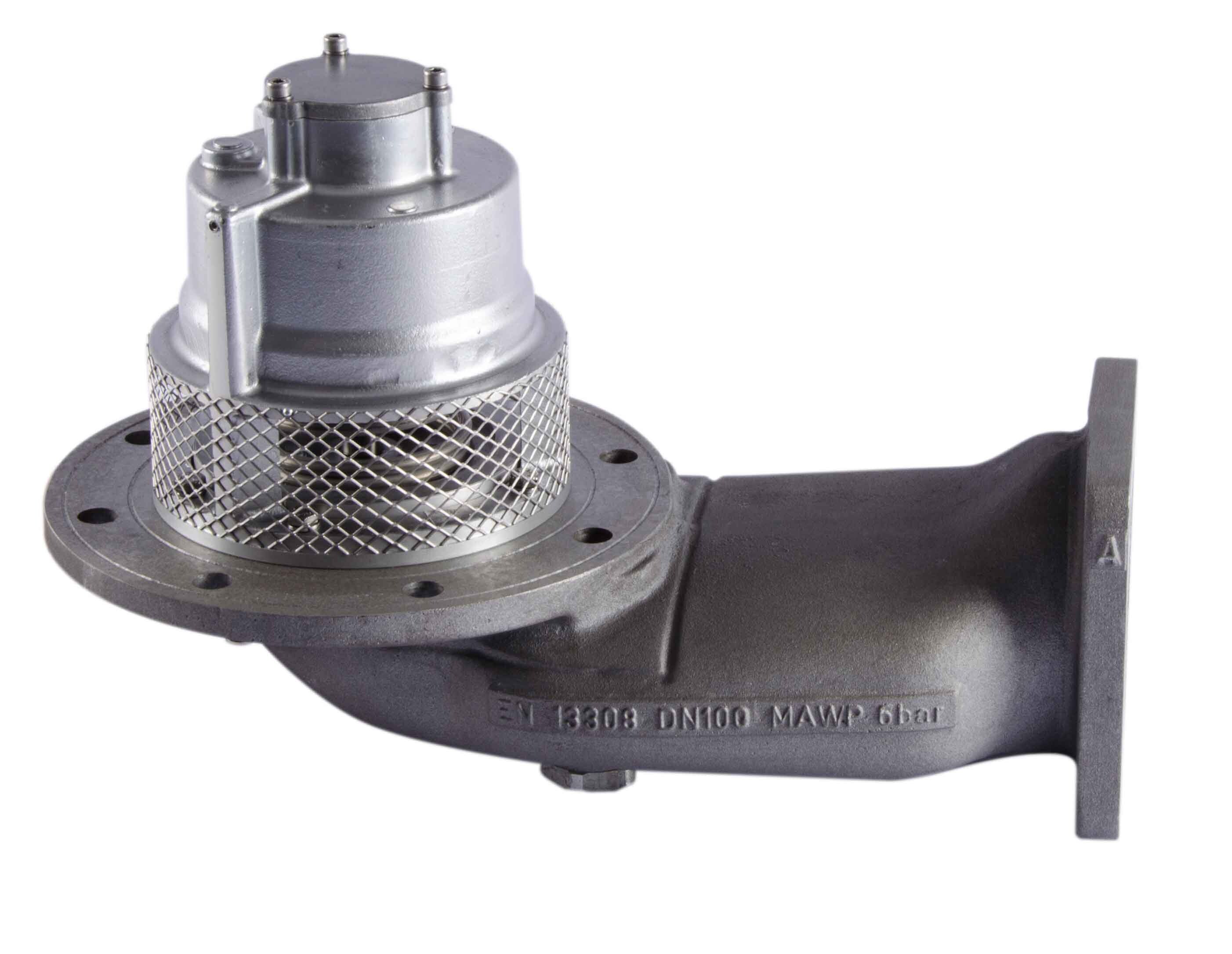

    Super Compact Model: EURO100-2 series
    EURO100-2-AL40: 4” non-pressure balanced, non sequenced.
    EURO100-2S-AL40: 4” non-pressure balanced, sequenced.
    EURO100-2B-AL40: 4” pressure balanced, non sequenced.
    EURO100-2BS-AL40: 4” pressure balanced, sequenced.

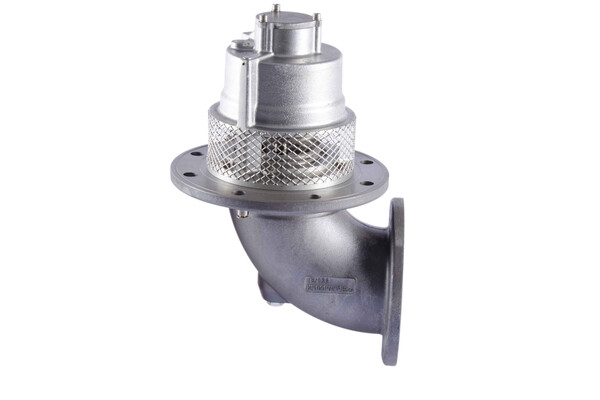

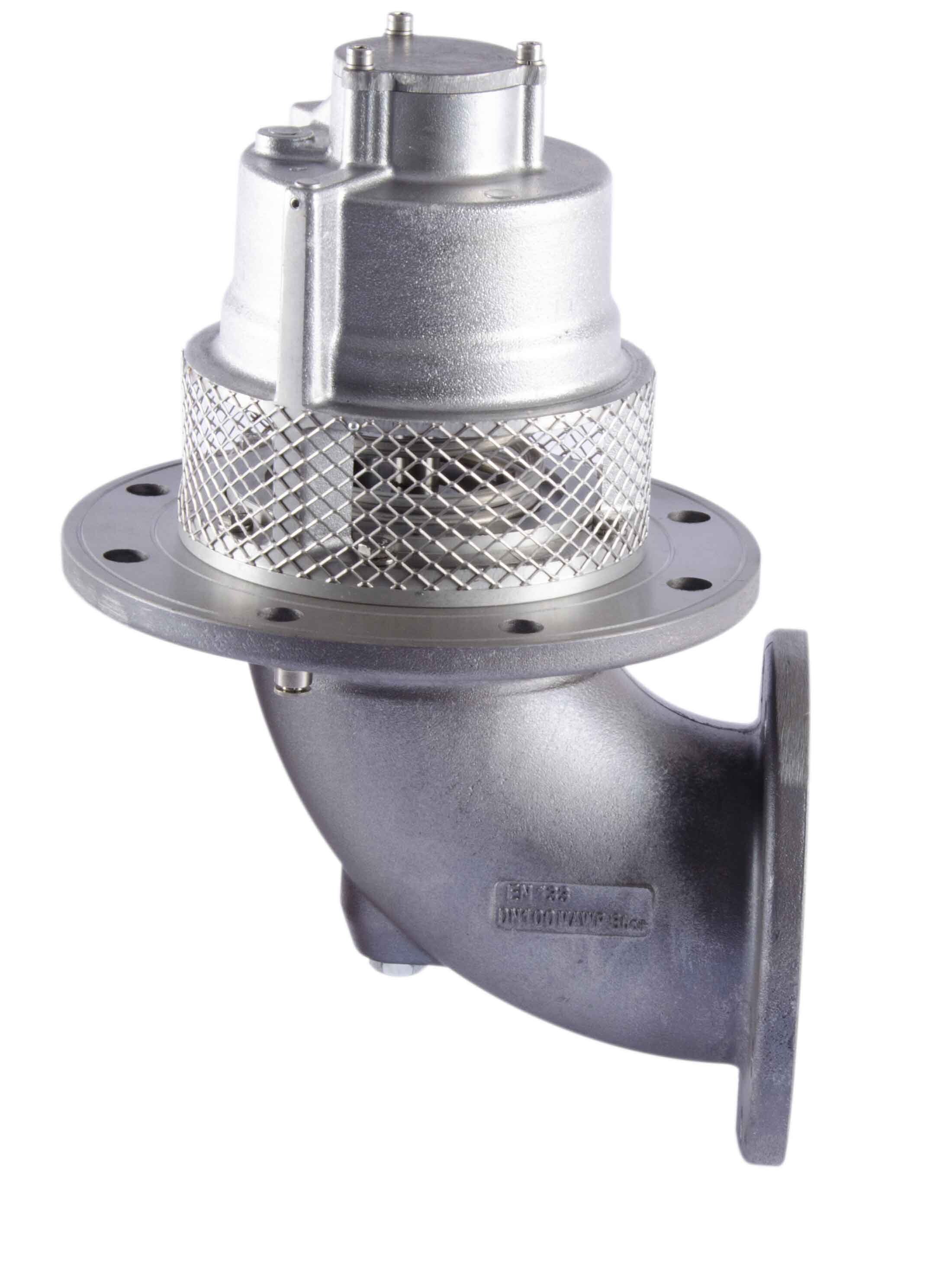

    4” TTMA Outlet Model: EURO100-3 series
    EURO100-3-AL40: 4” non-pressure balanced, non sequenced.
    EURO100-3S-AL40: 4” non-pressure balanced, sequenced.
    EURO100-3B-AL40: 4” pressure balanced, non sequenced.
    EURO100-3BS-AL40: 4” pressure balanced, sequenced.

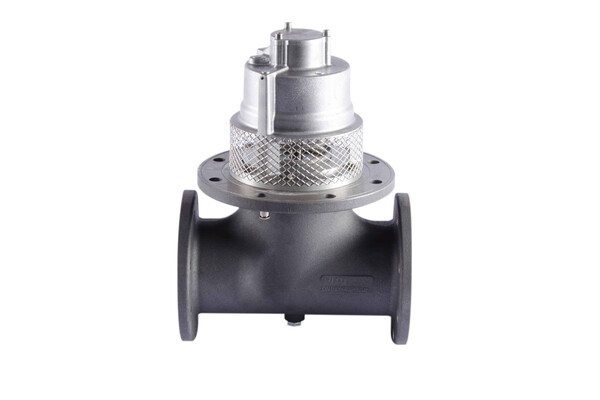

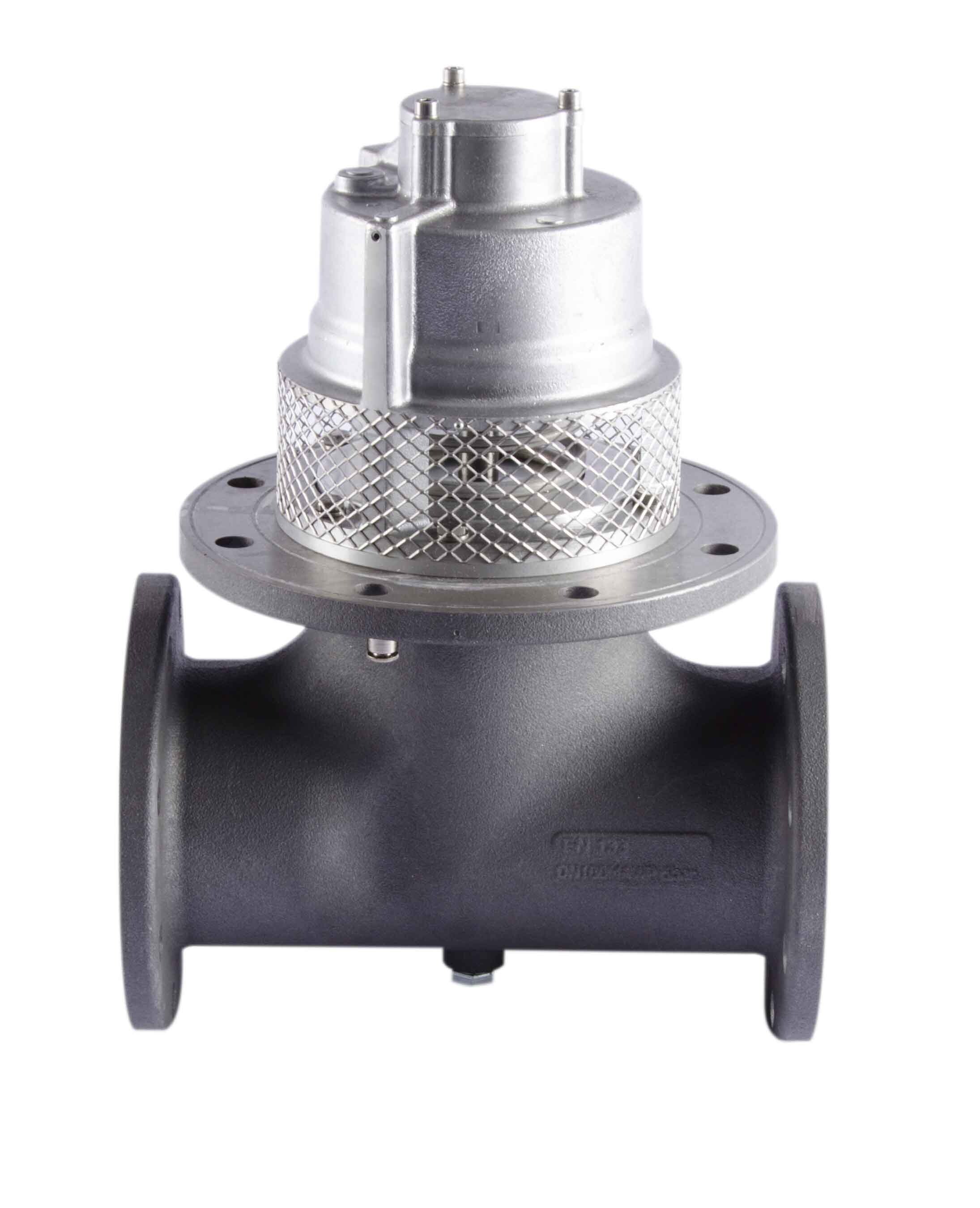

    4” T-Shape Model: EURO100-4 series
    EURO100-4-AL40: 4” non-pressure balanced, non sequenced.
    EURO100-4S-AL40: 4” non-pressure balanced, sequenced.
    EURO100-4B-AL40: 4” pressure balanced, non sequenced.
    EURO100-4BS-AL40: 4” pressure balanced, sequenced.

    Associated Equipment

    Repair kit
    EURO100RK: Seal kit for EURO100-series Bottom Valve.

    Contents EURO100RK Repair kit
    89-60-75/V: O-ring (Viton).
    26-60-27: Gasket (Viton).
    26-60-26: O-ring (Viton).
    82-30-53: Gasket (Viton).
    89-60-76/V: O-ring (Viton).
    92-60-70: O-ring (Viton).

    Related Products
    SF-100-ST40: Steel sump flange.
    10-02-43: Aluminium sump flange.
    10-01-74/EU: Aluminium square outlet flange.
    10-01-84: Gasket for square outlet flange.
