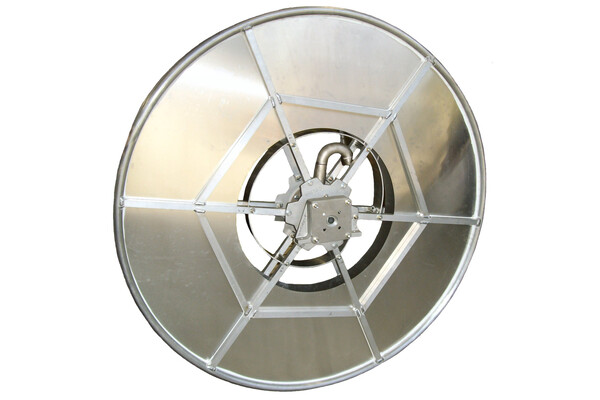

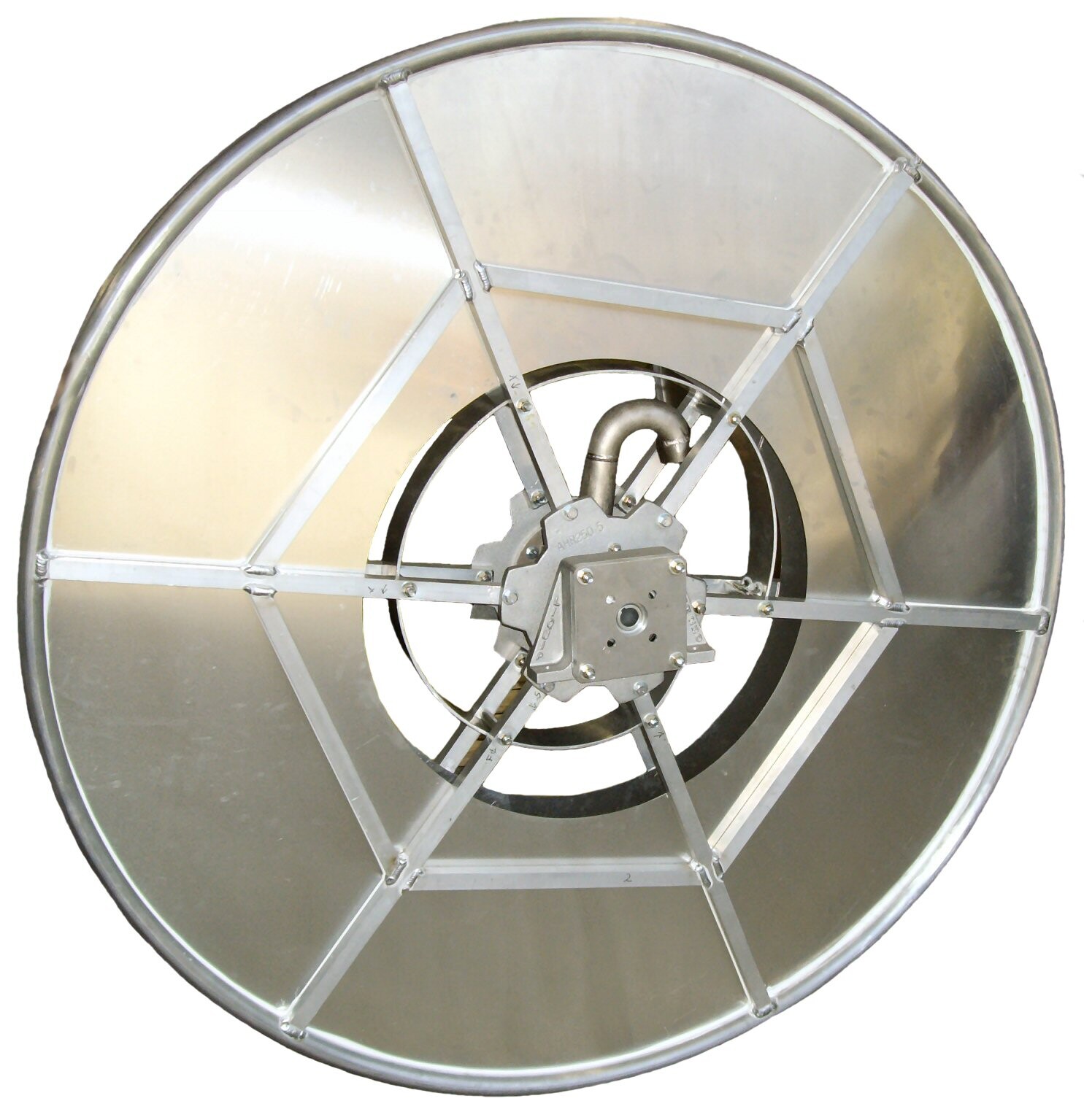

Aviation Hose Reel Cartwheel Style - AHR250 Series



The AHR250 series cartwheel style hosereels are suitable for aviation fuels. They can cover a large number of sizes, variations and options.

The reels are available in various diameters and widths to accommodate a large range of hose diameters and lengths, with or without hose beads/protection rings.

Features & Benefits
  • Open frame design or with side infill panels.
  • Can incorporate a hose guide or "chute" and nozzle stowage.
  • Interlocks can be added to prevent drive away accidents and product spills.
  • Easy operation - Just unhook nozzle and dispense hose to the required location.
  • Rewinds options are hydraulic motor or hand/manual rewind.

Categories
Technical Information

Sizes
Hose size: 1", 1 1/4", 1 1/2", 2" and 2 1/2" nominal bore.
Rewind type: manual or hydraulic.
Cartwheel lining for hoses with wear beads.
Please refer to ordering information for more options.
Custom design is available.

Pressure
Rated to 2,100kPa.

Servicing
Annually remove and repack bearing on the inlet side of the reel.

Mounting
Support frame not supplied.
Inlet flange is to suit 75mm (3") TTMA - 8 off 3/8" BSW x 25mm deep blind threads on a 124 PCD.

Weight
37kg.

Materials
Aluminium cart wheels and drum, nickel plated steel gooseneck and Viton seals.

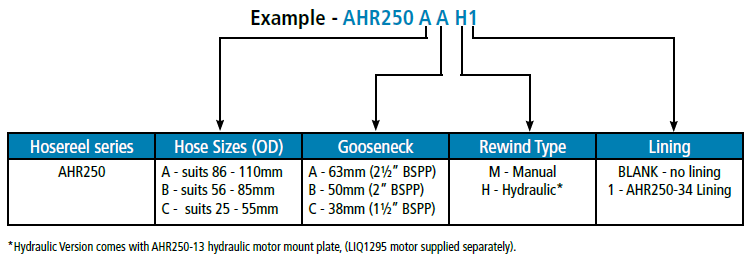

Ordering Information

Note: Electric available as an assembly

AHR250A: Hosereel suit hose sizes from diameter 86mm to 110mm and will accept 2" (50mm) and 2 1/2" (63mm) hoses with hose beads.

AHR250B: Hosereel suits hoses sizes from diameter 56 mm to 85mm and will accept 1 1/4" (32mm) and 1 1/2" (38mm) hoses with hose bead, or 2" (50mm) and 2 1/2" (63mm) hoses without hose beads.

AHR250C: Hosereel suits hose sizes from diameter 25mm to 55mm and will accept 1 1/4" (32mm) and 1 1/2" (38mm) hoses without hose beads.
