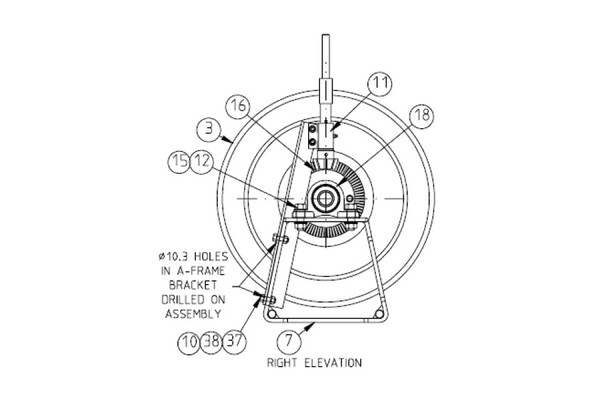

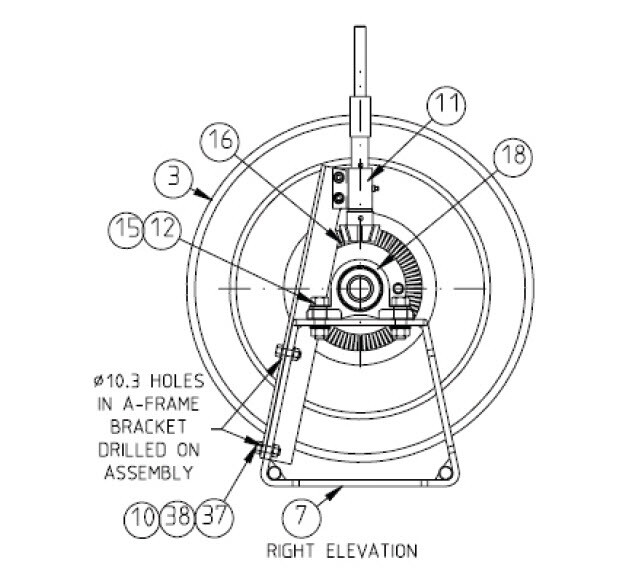

Aviation Hose Reel Drum Style - HPNP Series

The HP series of hose reels are a generation of reels for high pressure use and available with hand or hydraulic rewind and in different sizes.

  • Sealing is by lip seal and all models incorporate a lock assembly.
  • Ball bearings look after rotation, with end thrust being taken care of by heavy duty circlips and thrust washers.
  • All components are easily replaced and all wetted surfaces are nickel plated for longer life.
  • Stainless steel inlet flange, nickel plated gooseneck with 1 1/4" MBSPP.

Sizes
Hose size: 25mm, 32mm or 38mm diameter.
Rewind type: manual or hydraulic.
Drum width: 300mm, 450mm or 600mm.
Anti-rotation lock to prevent hose unraveling.

Pressure
Rated to 2,100kPa.

Servicing
Quarterly grease plumber block bearing
Annually remove and repack bearing on the inlet side of the reel.

Mounting
4 x M10 bolts.

Materials
Stiffened steel cheek plates, extremely study thick wall manifold with added strength from steel inner drum, steel base frame and self aligning bearing.
Polyurethane seals.

Options
Hot dip galvanised version.
1 1/2" N/P FBSP gooseneck.
Rollers and guides.
