Hydrant Pit Lids

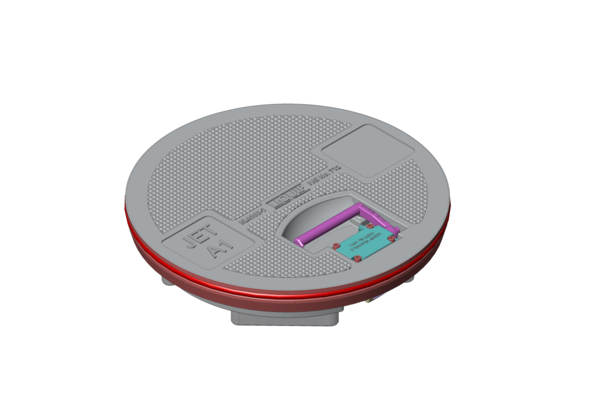

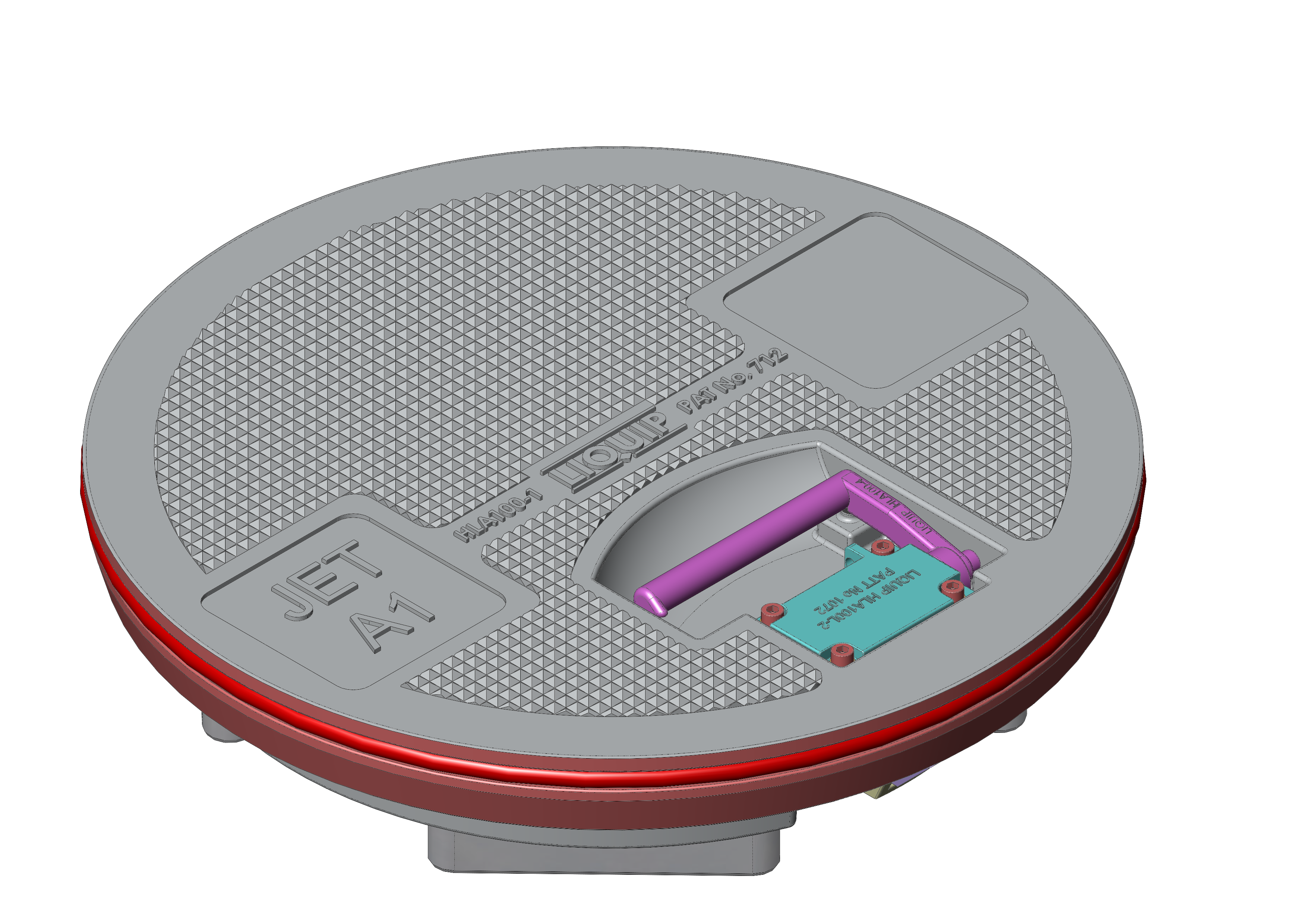

Liquip offer the HLA100 a 18" lightweight aluminium hydrant pit cover.

The HLA100 reduces the weight of the hydrant pit lid assembly to increase safety.

Liquip's hydrant pit lids are also fitted with two self-latching mechanisms that provide efficient and effective seals that prevent the ingress of water and dirt.

Features & Benefits
  • Lightweight design.
  • The cover has been designed to be dropped straight into the pit rim, no rotation or locking is required: the cover’s latches lock the cover into place with a light press of your foot.
  • With both latches locked the seal provides a water resistant and durable seal.

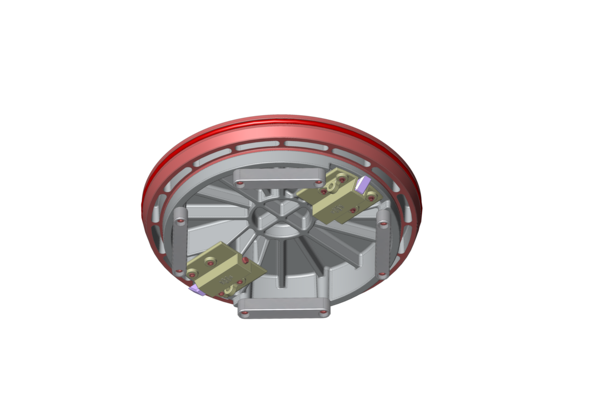

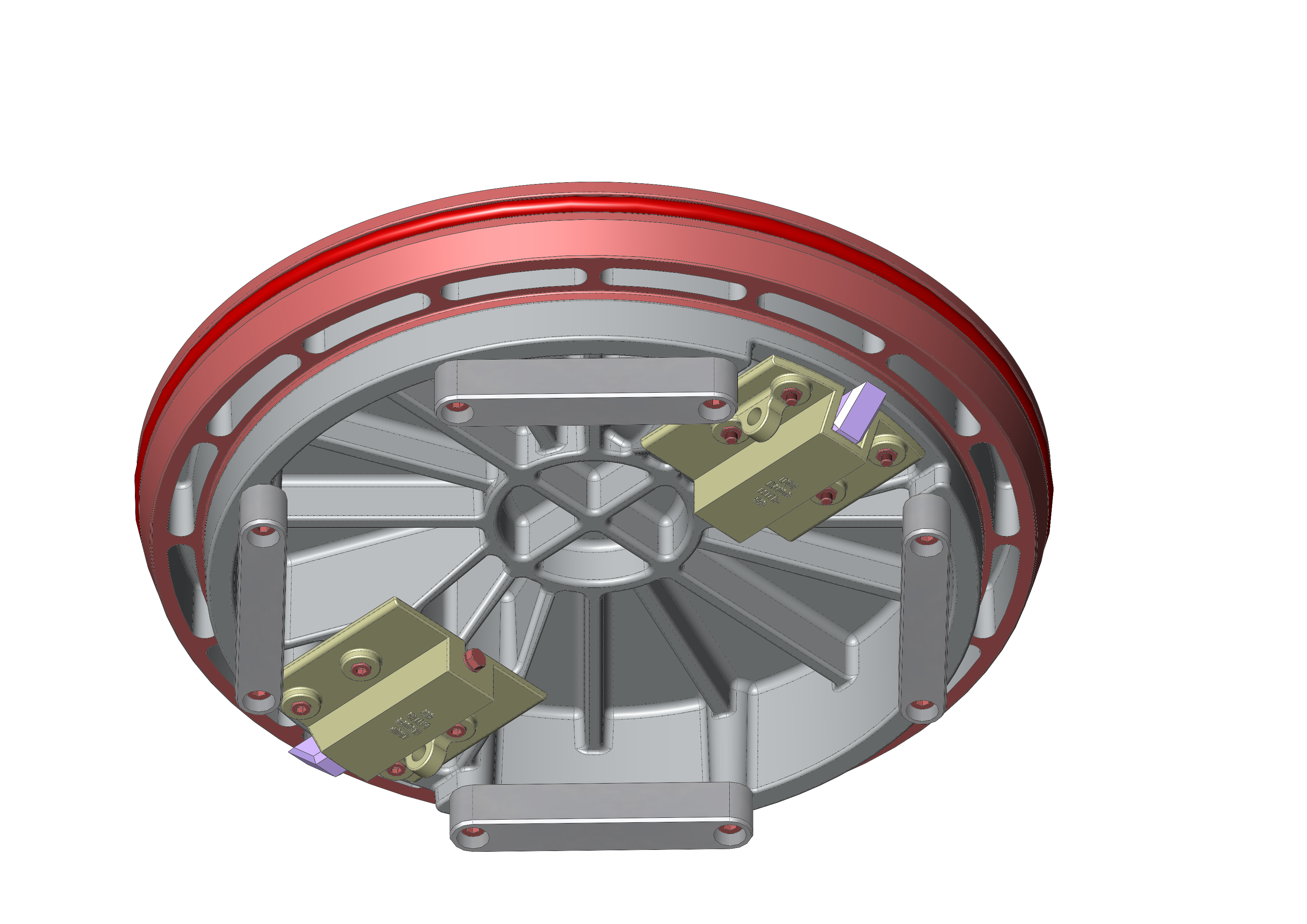

  • Special, high wear and chemical resistant plastic feet protect latching mechanisms and the bottom of the pit cover from damage.

Recommended products for replacement

    Technical Information

    Operation
    The cover comes completely assembled and will only fit the following specific hydrant pits HPA1x0 and HPA2x0 series.

    To remove the cover a single hand is required to grasp the handle and with one motion draw the handle up and toward you releasing the lock, opening the special vacuum breaker and removing the cover.

    To replace simply slid into the rim and press with your foot if the cover fails to latch under it’s own weight. Cast-in recesses are provided for labels

    Weight
    13.4kg.

    Operating Temperature
    -40°C to +60°C.

    Materials
    Cast Aluminium,
    Special engineering grade Polyethylene
    Stainless Steel
    Nitrile.

    Ordering Information

    HLA100: 18” Lightweight aluminium hydrant pit cover.

    HLA100-5: Sealing O-ring cord to suit HLA100 lid.

    Associated Equipment

    HPA100: 570mm diameter lightweight Hydrant pit assembly with intergral bellows to accept a special 100 NB flange & 100NB pit valves. The assembly comes complete with both inner and outer covers.

    HPA150: 570mm diameter lightweight Hydrant pit assembly with integral bellows to  accept a special 150 NB flange & 100NB pit valves. The assembly comes complete with both inner and outer covers.

    HPA200: 700mm diameter lightweight Hydrant pit assembly with integral bellows to  accept a special 100 NB flange & 100NB pit valves. The assembly comes complete with both inner and outer covers.

    HPA250: 700mm diameter lightweight Hydrant pit assembly with integral bellows to  accept a special 150 NB flange & 100NB pit valves. The assembly comes complete with both inner and outer covers.

    HYDRANT PIT SPARES

    HLC200-12 Base flange to suit HPA100 & HPA200

    HLC250-12 Base flange to suit HPA150 & HPA250

    HLC200-11 Bonding kit for Polyflex Pits
