Pipe Couplers
We have a coupler that is engineered to meet your needs. A variety of styles include the Bolt Together, Easy Opening and a Durable LST coupler.
We have developed a solution for your most common problem – coupler freeze up. The solution is oil impregnated bronze bushings at critical hinge points. Another added solution from Civacon to solve your common problems.
Features & Benefits

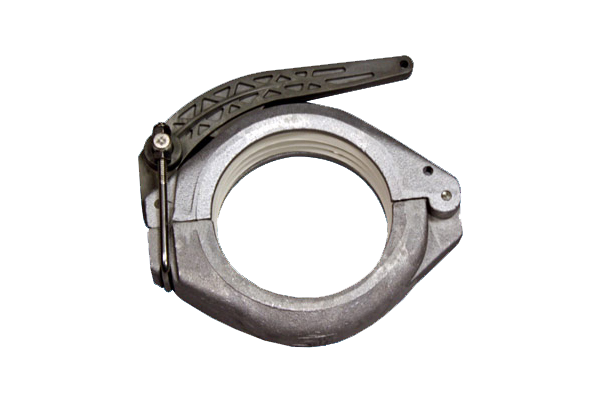

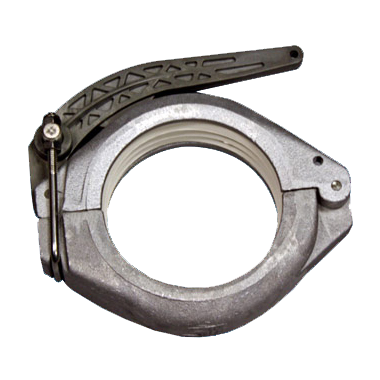

Aluminum Quick Release Coupler
- Oil impregnated bronze bushings
- Completely made from stainless steel and aluminum for superior corrosion resistance and light weight
- With no void areas in the gasket there is no place for contamination to hide - a quick disassembly and visual inspection is all that is necessary
- Most band clamps are rated at 10 psi, where Civacon couplers are rated at 50 psi

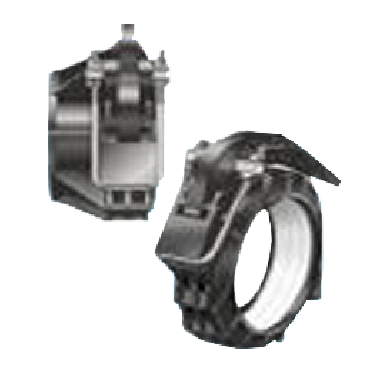

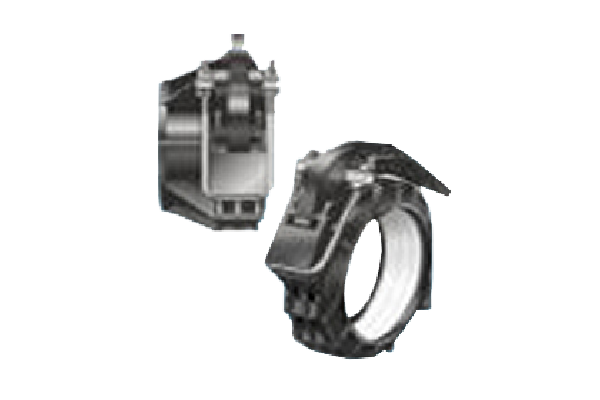

LST Coupler
- Clean seal gaskets are easy to install and replace
- White gaskets are special formulated for dry bulk applications where F.D.A. approval is required
- Black gaskets are specially formulated for petroleum products, while red gaskets are for high temp applications up to 400 degrees Fahrenheit
- With no void areas in gasket there is no place for contamination to hide - a quick disassembly and visual inspection is all that is necessary
- 40% lighter than comparable couplers
- Stronger than standard aluminum couplers
- Tougher on corrosion
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer serviceSave as Wishlist
Save as Wishlist - handy function for account holdersSend to a Friend
Send you selection of products to a friend via a convenient email link| Image | Item | Description |
Add Item into Enquiry Cart
|
|---|---|---|---|
| ALUMINIUM QUICK RELEASE COUPLER | |||
 |
632GGB | 3” Aluminium Coupler Groove to Groove Black Nitrile Gasket | |
|
|
632GGR | 3” Alumiinum Coupler Groove to Groove High Temp, Gasket | |
|
|
632GGV | 3” Aluminium Coupler Groove to Groove Viton Gasket | |
|
|
632GGW | 3” Aluminium Coupler Groove to Groove White Neoprene Gasket | |
|
|
635GGB | 4” Aluminium Coupler Groove to Groove Black Nitrile Gasket | |
|
|
635GGR | 4” Aluminium Coupler Groove to Groove High Temp, Gasket | |
|
|
635GGW | 4” Aluminium Coupler Groove to Groove White Neoprene Gasket | |
|
|
635GPB | 4” Aluminium Coupler Groove to Plain Black Nitrile Seat | |
|
|
635GPR | 4” Aluminium Coupler Groove to Plain High Temp. Gasket | |
|
|
635GPW | 4” Aluminium Coupler Groove to Plain White Neoprene Gasket | |
|
|
635PPB | 4” Aluminium Coupler Plain to Plain Black Nitrile Gasket | |
|
|
635PPW | 4” Aluminium Coupler Plain to Plain White Neoprene Gasket | |
|
|
637GGB | 5” Aluminium Coupler Groove to Groove Black Nitrile Gasket | |
|
|
637GGR | 5” Aluminium Coupler Groove to Groove High Temp, Gasket | |
|
|
637GGW | 5” Aluminium Coupler Groove to Groove White Neoprene Gasket | |
|
|
639GGB | 6” Aluminium Coupler Groove to Groove Black Nitrile Gasket | |
|
|
639GGR | 6” Aluminium Coupler Groove to Groove High Temp, Gasket | |
|
|
639GGW | 6” Aluminium Coupler Groove to Groove White Neoprene Gasket | |

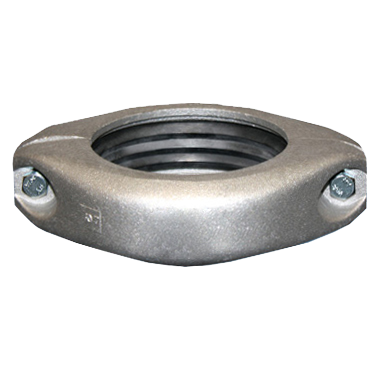

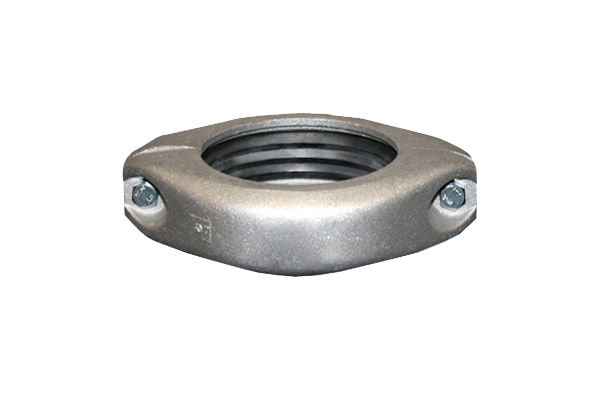

| BOLT TOGETHER COUPLER | |||
|
|
432B | 3” Aluminium Bolt-Together Coupler Black Nitrile Gasket | |
|
|
432V | 3” Aluminium Bolt-Together Coupler Viton Gasket | |
|
|
432W | 3” Aluminium Bolt-Together Coupler White Neoprene Gasket | |
|
|
435B | 4” Aluminium Bolt-Together Coupler Black Nitrile Gasket | |
|
|
435V | 4” Aluminium Bolt-Together Coupler Viton Gasket | |
|
|
435W | 4” Aluminium Bolt-Together Coupler White Neoprene Gasket | |
|
|
634B | 4” Aluminium Bolt-Together Standard Coupler Black Nitrile Gasket | |
|
|
634W | 4” Aluminium Bolt-Together Standard Coupler White Neoprene Gasket | |
| LST COUPLERS | |||
|
|
LST735GGW | 4”Plastic Coupler w/Stainless Steel Hardware Groove to Groove | |
|
|
LST735GPW | 4” Plastic Coupler w/Stainless Steel Hardware Groove to Plain | |
|
|
LST735PPW | 4” Plastic Coupler w/Stainless Steel Hardware Plain To Plain | |
