Trench Widths up to 1m (40”) – End to End Configuration

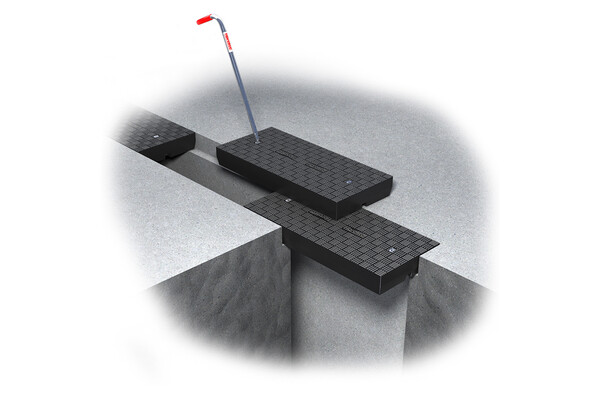

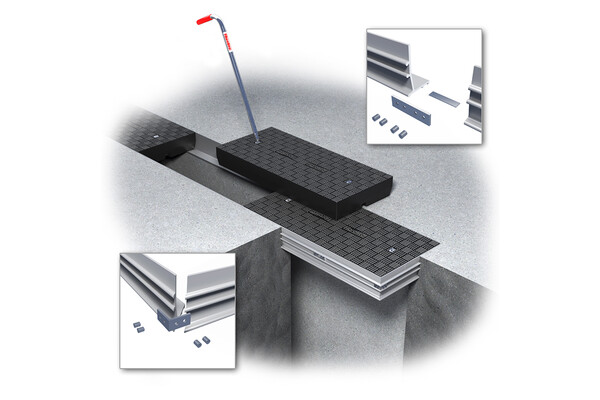

Frame or Rebate Installation

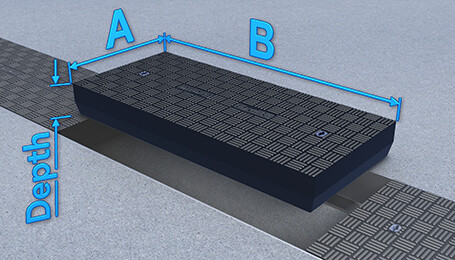

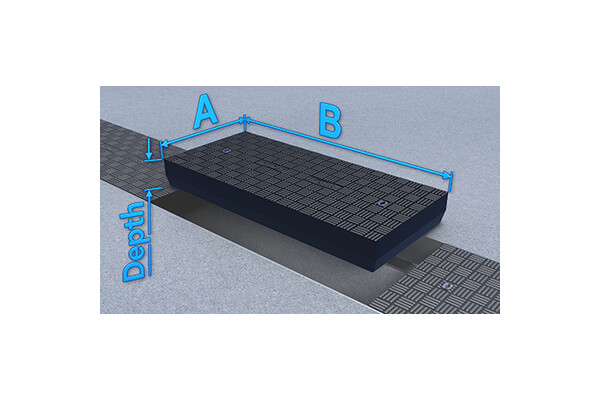

Dimension ’A’ Dimension ’B’ Depth Weight
300 - 800mm (12" - 32") 450 - 1800mm (18" - 72") 76mm (3") 44 kg/M² (9 lbs/ft²)
300 - 1000mm (12" - 40") 450 - 1800mm (18" - 72") 101.6mm (4") 40 kg/M² (18 lbs/ft²)
300 - 1000mm (12" - 40") 450 - 1800mm (18" - 72") 117mm (4 5⁄8") 44 kg/M² (9 lbs/ft²)
300 - 1000mm (12" - 40") 450 - 900mm (18" - 36") 203.2mm (8") 61 kg/M² (12 lbs/ft²)
300 - 800mm (12" - 32") 450 - 1200mm (18" - 48") 203.2mm (8") 61 kg/M² (12 lbs/ft²)
300 - 600mm (12" - 24") 450 - 1600mm (18" - 64") 203.2mm (8") 61 kg/M² (12 lbs/ft²)

Please CONTACT LIQUIP for all ordering information.
