Trench Widths up to 1m (40”) – End to End Configuration

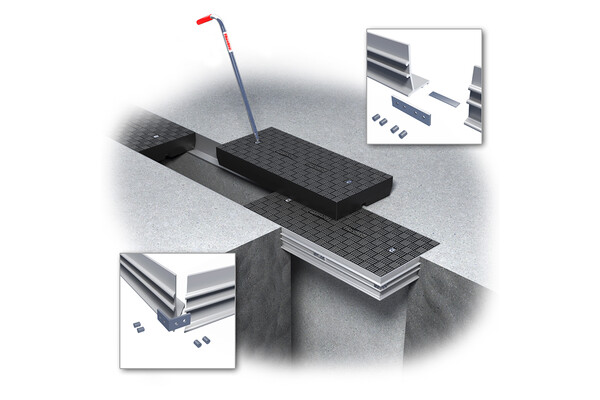

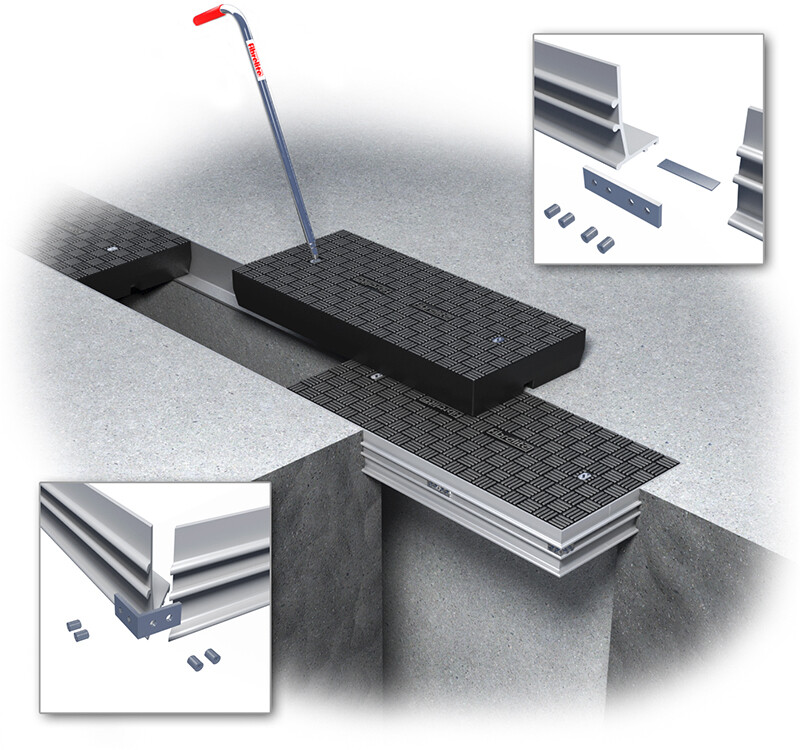

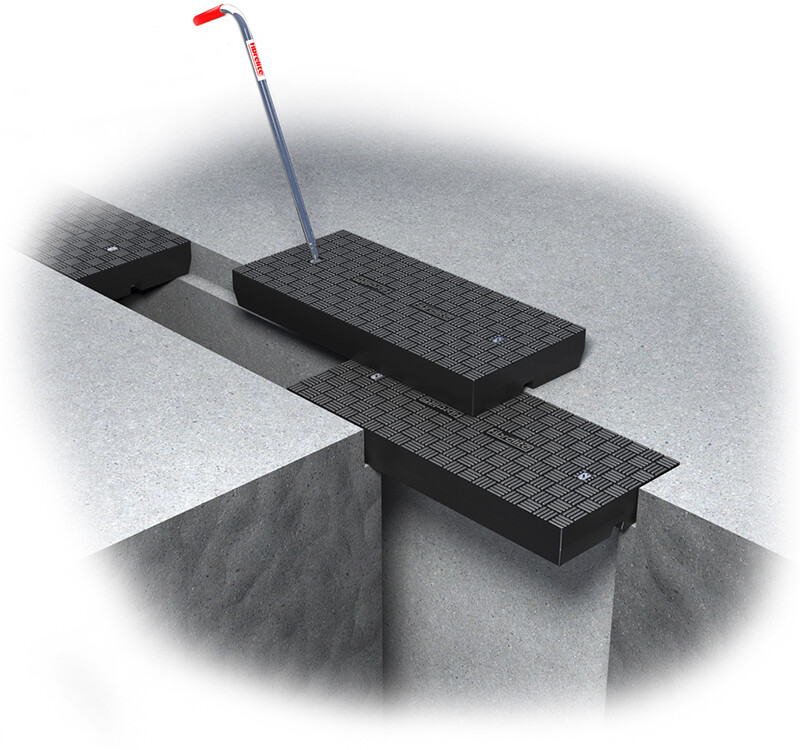

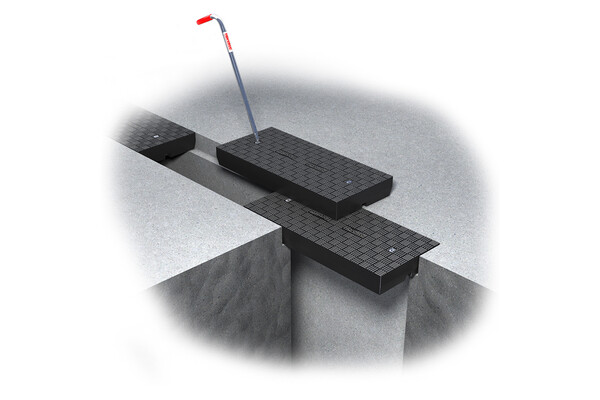

Frame or Rebate Installation

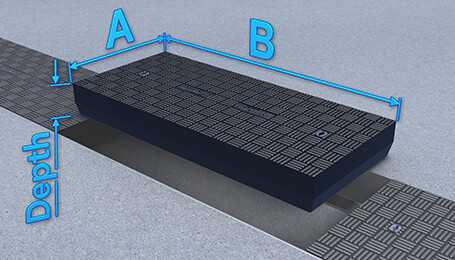

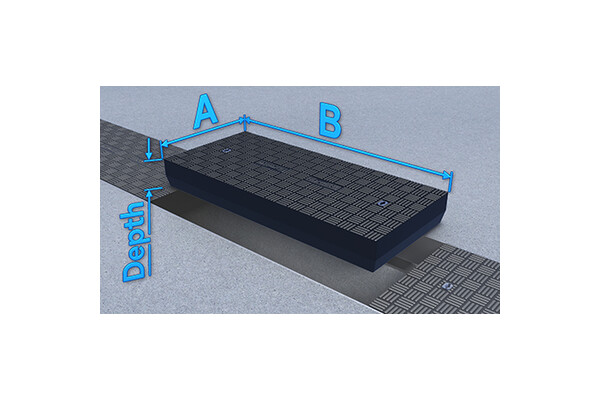

Dimension ’A’ Dimension ’B’ Depth Weight
300 - 700mm (12" - 28") 450 - 1800mm (18" - 72") 76mm (3") 48 kg/M² (10 lbs/ft²)
700 - 1000mm (28" - 40") 900 - 1200mm (36" - 48") 76mm (3") 48 kg/M² (10 lbs/ft²)
300 - 1000mm (12" - 40") 600 - 1200mm (24" - 48") 101.6mm (4") 46 kg/M² (9 lbs/ft²)
300 - 500mm (12" - 20") 450 - 1800mm (18" - 72") 117mm (4 5⁄8") 60 kg/M² (12 lbs/ft²)
500 - 1000mm (20" - 40") 450 - 1000mm (18" - 40") 117mm (4 5⁄8") 60 kg/M² (12 lbs/ft²)
300 - 1000mm (12" - 40") 450 - 700mm (18" - 28") 203.2mm (8") 83 kg/M² (17 lbs/ft²)

Please CONTACT LIQUIP for all ordering information.
