Capacitance C = 1.1 nF.
Inductance L = 12 μH.
Inductance/Resistance Ratio L/R = 35 μH/Ω.
All materials are non-static producing.
3.5kg for GP10x only.
5.0kg for total including junction box.
Junction box has two internal mounting holes for 8mm diameter bolts.
Notes: Replace the cable gland with appropriate approved explosion-proof types if directly installed to the Overfill monitor.

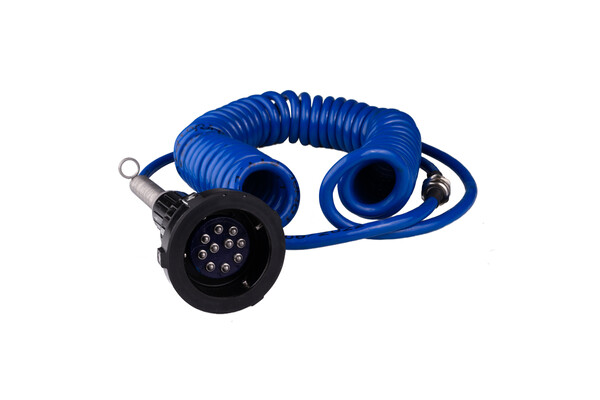

5115 Self-store coiled cable, Blue.
Plugs are available as spare part, order as GP103-3 or GP104-4.
