Mounting
2 x Ø8.5 holes through base allow for mounting with M8 bolts.
Junction Boxes
Electronic junction boxes provide an intrinsically safe and easy method of wiring to terminate and connect the gantry plug with the overfill rack monitor.
- Connection through industry standard 3 or 4 bayonet 10 pin plug for intrinsically safe signals only and/or earthing connection.
- Replace gantry plug components without the need to access the overfill monitor’s explosion proof housing.
- Protects the monitor’s housing from damage and potential hazard exposure should a drive-away occur.
- Provision for connection of the earth lead is provided.
- Easy maintenance.

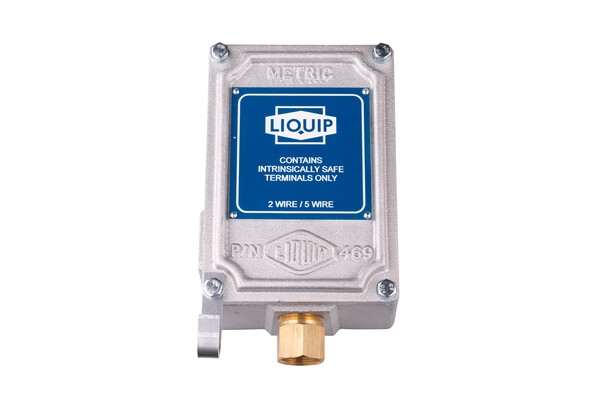

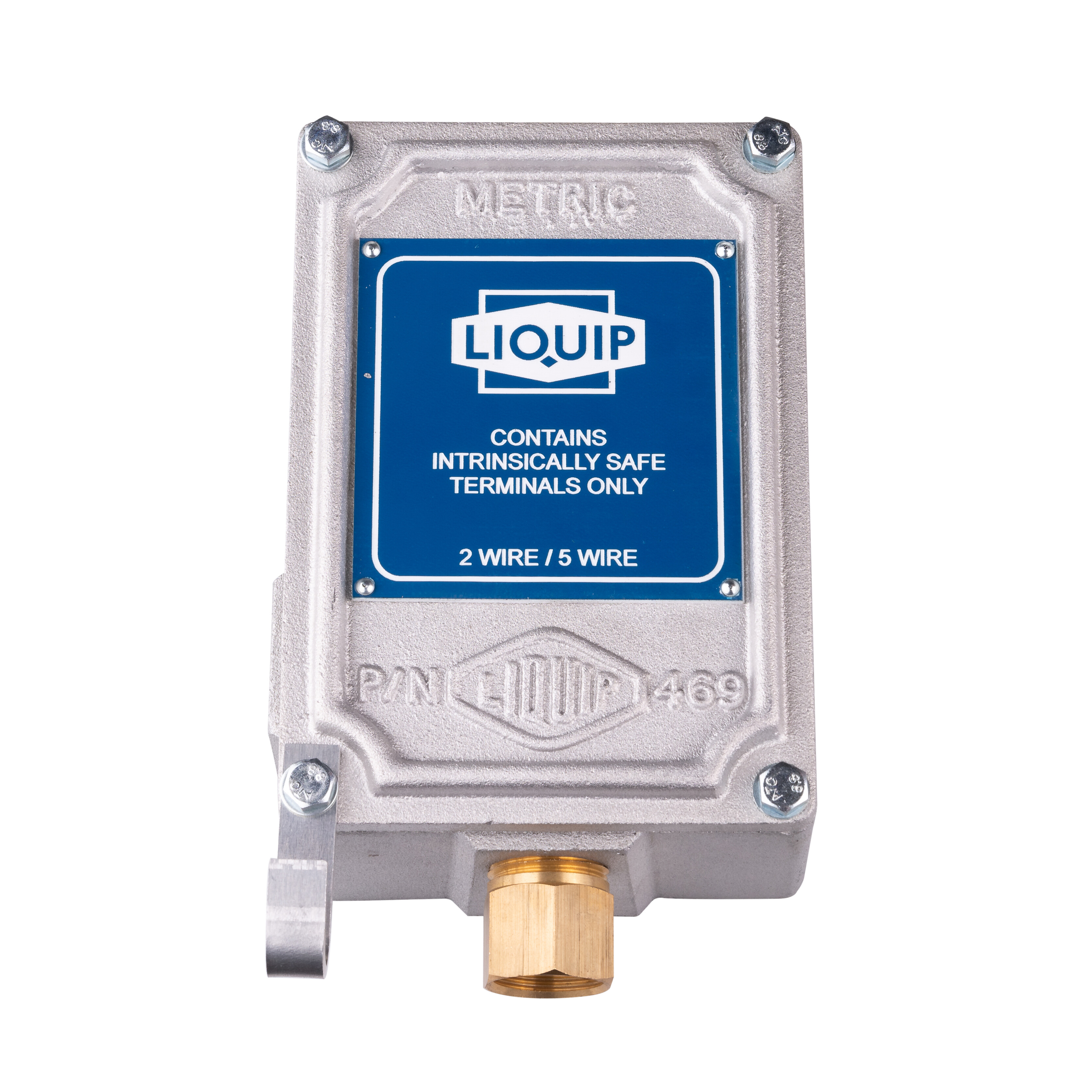

JB100: Junction box comes with 2 x 3/4” NPS cable entries at top and bottom.
JB103: Junction box comes with 3 x 3/4” NPS cable entries at top, bottom and left hand side.
GP103: Gantry plug, 3-pin bayonet, Navy Blue, supplied with cable & gland.
GP104: Gantry plug, 4-pin bayonet, Black, supplied with cable & gland.
GP114: 4 pin gantry plug with self coiling cable. (Quick Release).
GP214: 4 pin gantry plug with straight cable. (Quick Release).
EAC201: Earth Assurance clamp with 8m straight cable.
EAC202: Earth Assurance clamp with 8m self-storing (curly) cable.
RM140D: Overfill monitor (typical configuration for Australian market).
RM140E: Overfill monitor (typical configuration for Global markets).
