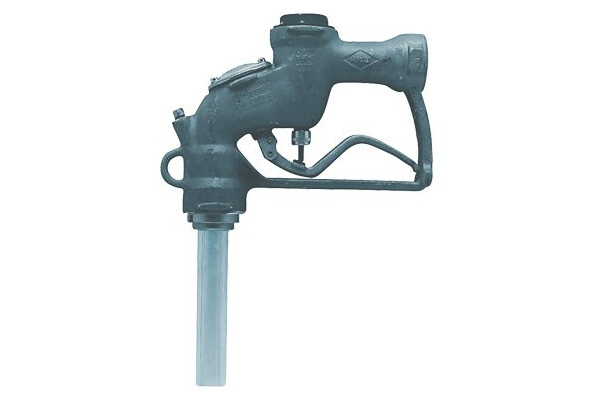

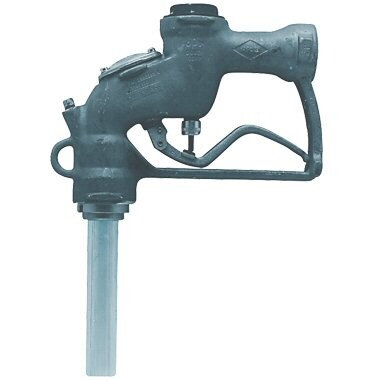

1291 Automatic Shut-Off Nozzles


For Heavy-Duty, High-Flow Truck, Bus and Home Fuel Oil Delivery Service.

  • Venturi-Type Shut-Off Mechanism - for automatic shut-off.
  • Aluminum Body - lighter in weight and easier to maneuver than other nozzles on the market.
  • Two-position hold-open device*.
  • One-Hand Control of Hold-Open Mechanism - means easy setting of flow rate.
  • Right Angle Design - provides larger lever area for better grips and easier control, permitting the nozzle to fit into awkward spaces close to walls and into corners.
  • Easily-Replaced Spout - simply remove the spout retainer nut.
  • Built-In Outlet Check Valve - meets all known requirements of the Division of Measurement Standards.
  • Dual Poppets - make nozzle easy to open against high inlet pressure.

Design working pressure

  • 50 psi (3.45 bar) maximum pressure.
  • Service Temperature range: -20º F to 140º F

Listings and Certifications



*1291C-0050 ONLY *1291C Nozzles are not permitted and sold with Hold-Open Clips per ULC S620 requirements.

Materials

  • Body: Aluminium
  • Main stem: Stainless steel
  • Packing: Graphite with Teflon®
  • Main Disc: Viton®
  • Inlet Size: 1-1/2" NPT

Performance



Ordering Specifications

Item Description

Inlet Thread

Weight

in.

mm

lbs.

kg

1290-0050 New

38

6.8

3.1

1290-0055 Rebuilt

38

6.8

3.1

1291C-0050* New 38 6.8 3.1
1290G-0050 New

38

6.8

3.1

Note:  *1291C Nozzles are not permitted and sold with Hold-Open Clips per ULC S620 requirements.
Government National Stock #s:
  • 1290-0050; NSN 4930-01-290-0756
  • 1290G-0050; NSN 4930-01-352-1660 green anodized
  • 1290GS-0050; NSN 4930-01-352-1661 tan anodized
  • (1290GS-AR50; tan anodized without kamlok coupler and dust plug)
