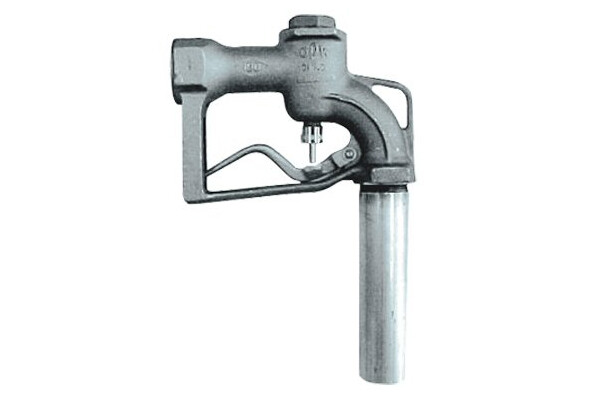

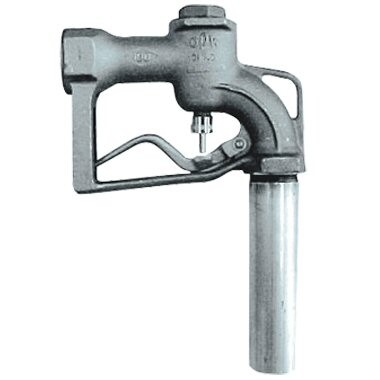

190 High-Flow Nozzles (Obsolete product)

Sorry About That… This Product is an Obsolete Item…

This product is no longer available. To assist you with finding an alternative product that will perform the same function we have offered some suggested replaceable products below.

We have also made information about obsolete products available to assist with purchasing spare parts that may still be available. You can view obsolete product information by searching for product codes in our SEARCH bar.

If you would like any further information regarding our parts please don’t hesitate to contact your local Liquip representative and we will get back to you as quickly as possible.


For High-Flow, Bulk Fuel Oil Delivery Service

Designed to handle high flow when line pressure is not a critical consideration or otherwise absorbed.

For applications over 50PSI, please use 210 Series Nozzles.

  • Aluminium Body - lighter weight, easier to maneuver.
  • Dual Poppets - allow for low flow metering (this nozzle is not intended for high pressure pump applications).
  • Replaceable Hold-Open Rack - for use when fueling large-capacity tanks. Nozzle must be attended at all times during usage.
  • Right Angle Design - provides larger lever area for better grip and easier control; permits nozzle to fit into awkward spaces close to walls and into corners.
  • Drag Lugs - protect the nozzle when dragged across rough surfaces; enhances long-life durability.
  • Easily Replaced Spout - the spout is easily threaded into the body. Replacement spouts are readily available from OPW.
  • NPT or BSP Female Threads at Inlet End - standard pipe threads accept all standard 1", 1-1/4", 1-1/2" and 2" male connections.

190L-584LLIQUIP: NOZZLE 1 ¼" 190 BSP C/W SPOUT

190L-586LLIQUIP: NOZZLE 1 ½" 190 BSP C/W SPOUT

190S-7063-114Z: STRAINER & SPACER KIT FOR 1¼" NOZZLE.

190-0113: Nozzle 1¼" NPT VITON, NO SPOUT **NPT THREADS**

190-0114: Nozzle 1½" NPT VITON, NO SPOUT **NPT THREADS**

297-9020: Aluminium Spout 1 ¼" NPT OPW SUIT 190L and 210L series nozzles.

297-9030: Aluminium Spout 1 ½" NPT OPW SUIT 190L and 210L series nozzles.

Please CONTACT LIQUIP for all ordering information.

Design working pressure
50 psi maximum pressure.

Materials
Body: Cast aluminium.
Main Stem: Stainless steel.
Stem Seal: Graphite with Teflon®.
Disc: Viton®.

Spout: OPW 296 brass or 297 aluminium (optional).

Performance
