210 High-Flow Nozzles

For High-Flow, Bulk Fuel Oil Delivery Service

  • Aluminium Body - lighter weight, easier to maneuver.
  • Dual Poppets - allows for low-flow metering.
  • Replaceable Hold-Open Rack - for use when fueling large-capacity tanks. Nozzle must be attended at all times during usage.
  • Dash Pot - non-adjustable, to minimize closing line shock.
  • Right Angle Design - provides larger lever area for better grip and easier control; permits nozzle to fit into awkward spaces close to walls and into corners.
  • Drag Lugs - protect the nozzle when dragged across rough surfaces; adds to long life with rough usage.
  • Easily Replaced Spout - the spout is simply threaded into the body. Replacement spouts are readily available from OPW.
  • NPT or BSP Female Threads at Inlet End - standard pipe threads accept all standard 1-1/4" and 1-1/2" male connections.

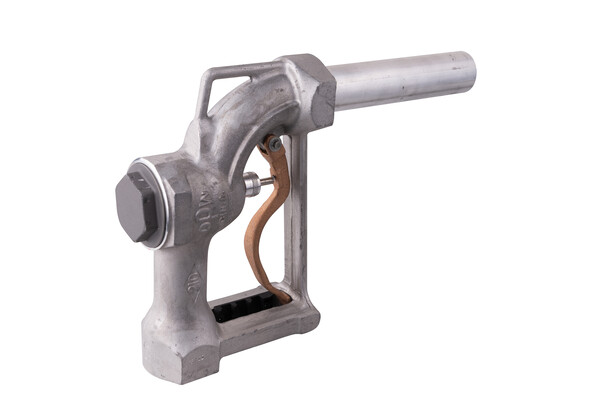

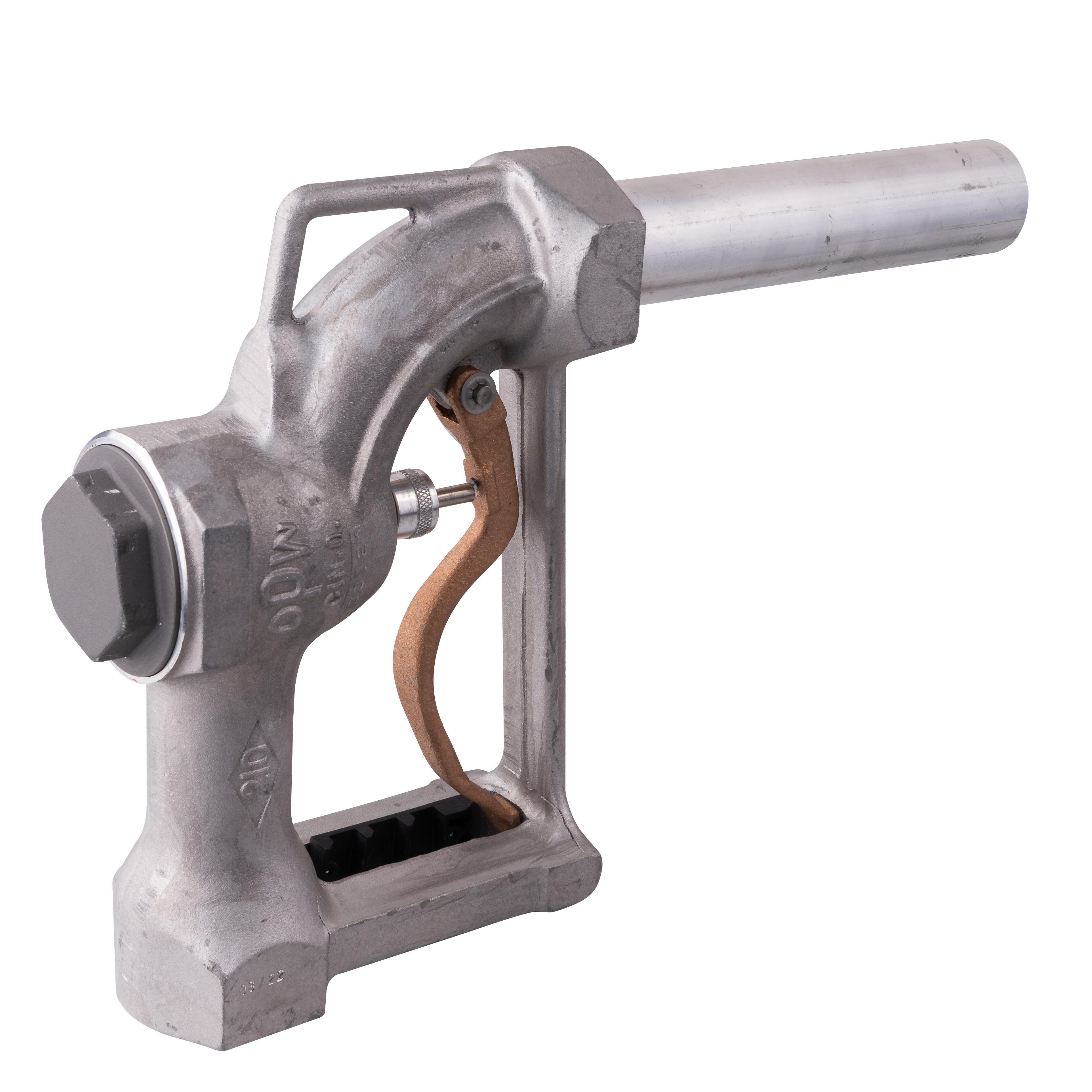

210L0104LLIQUIP: Nozzle 1 ¼" 210 BSPP W/ Spout.

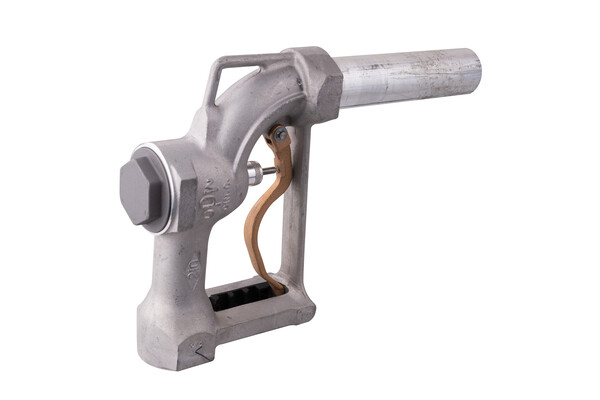

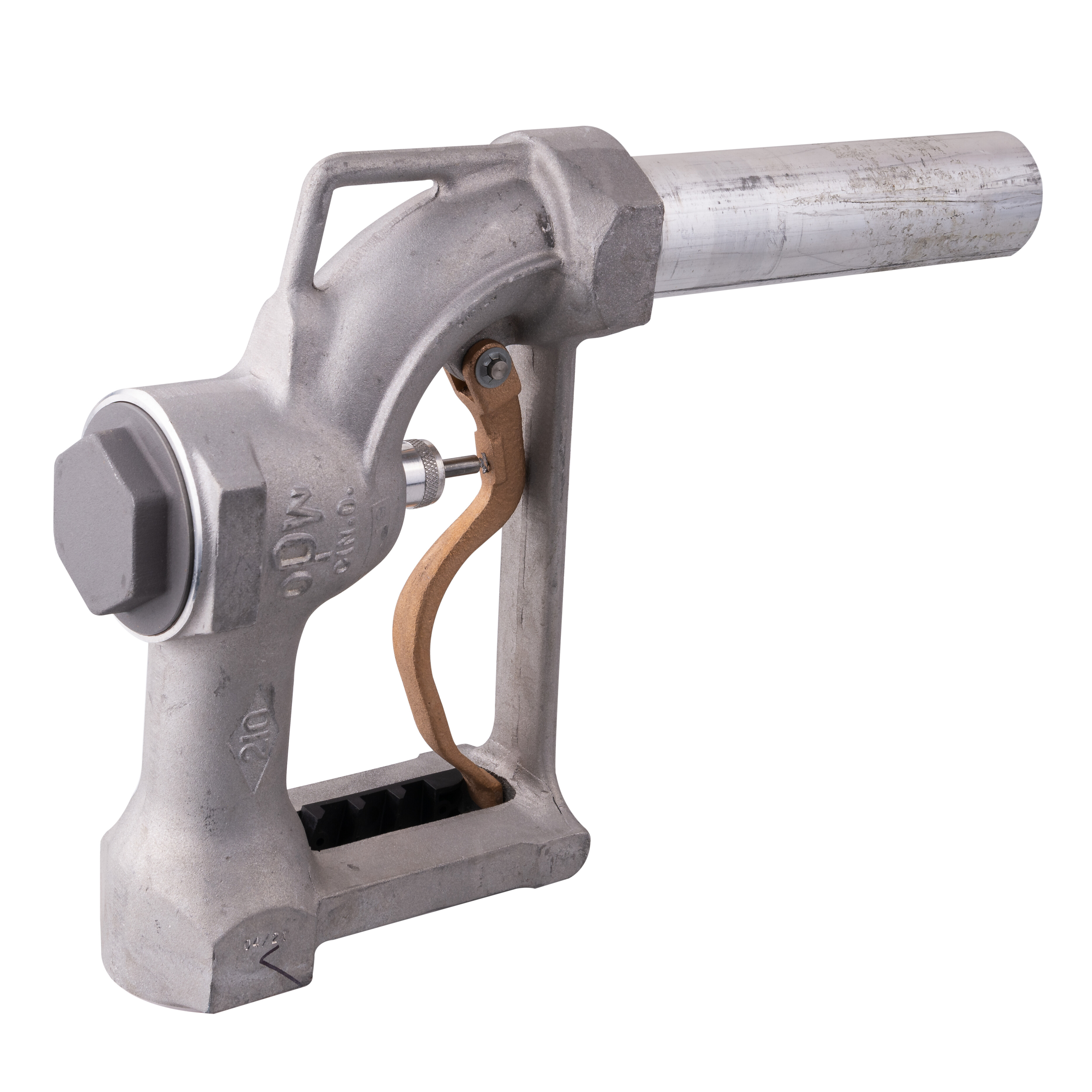

210L0105LLIQUIP: Nozzle 1½" 210 BSPP W/ Spout.

210-0104: Nozzle  1¼" NPT VITON, NO SPOUT **NPT THREADS**

210-0105: Nozzle 1½" NPT VITON, NO SPOUT **NPT THREADS**

Spare Parts

297-9020: Aluminium Spout 1 ¼" NPT OPW SUIT 190L and 210L series nozzles.

297-9030: Aluminium Spout 1 ½" NPT OPW SUIT 190L and 210L series nozzles.

H00195RB: Stuffing Box suit 210 Nozzle

C04495M: Packing suit 210 Nozzle

H07012M: Packing gland suit 210 Nozzle

H01841: Lower Disc S/A suit 210 Nozzle

190K-0001:Upper Poppet suit 210 Nozzle

H00999M: Brass Lever suit 210 Nozzle

H08163M: NUT PUSH TO SUIT THE 190 LEVER

Design working pressure
50 psi maximum pressure.

Materials
Body: Cast aluminium.
Main Stem: Stainless steel.
Stem Seal: Graphite with Teflon®.
Disc: Viton®.
Spout: OPW 296 brass or 297 aluminium (optional).

Catalog Page

Performance
