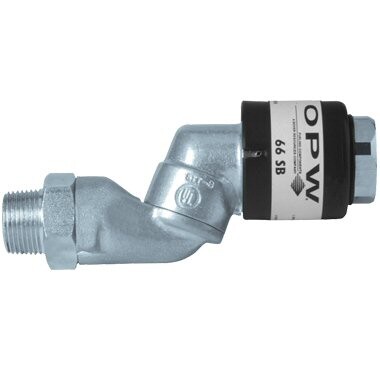

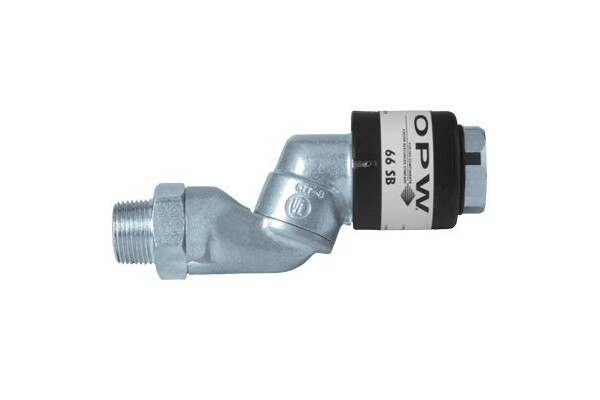

66SB Swivel Breakaway

The OPW 66SB Swivel Breakaway is intended for easy installation at the nozzle inlet. The compact, lightweight design incorporates a 360° swivel rotation at both the male end and middle joint, with a simple and easily-reconnectable breakaway on the opposite end.

  • UL and ULC listed for use in gasoline, diesel and up to 10% ethanol blends. See specific listings.
  • Pull Force - the 66SB will break away with a pull force of no more than 350 lbs.
  • Easily Reconnected at Waist Height - after relieving line pressure, simply push coupling halves together until latched. Reconnection force is approximately 15 lbs.
  • Protected Coupling and Poppet - the breakaway's poppet and sealing surface are protected from impact during separation by a plastic sleeve.
  • Reduces Connections - the single-unit design replaces the standard swivel, breakaway and whip hose, eliminating possible leak points.
  • Double O-Ring Seal - both swivel joints are protected by a double O-Ring design.

Design working pressure
50 psi (3.45 bar) maximum pressure.

Listings & Certifications
UL

Materials

Body: Aluminium

Sleeve: Nylon, HDPE

Seals: Viton®

Spring: Stainless steel

Poppet: Aluminium

Packed: 20 per case

Performance

Item Number Description

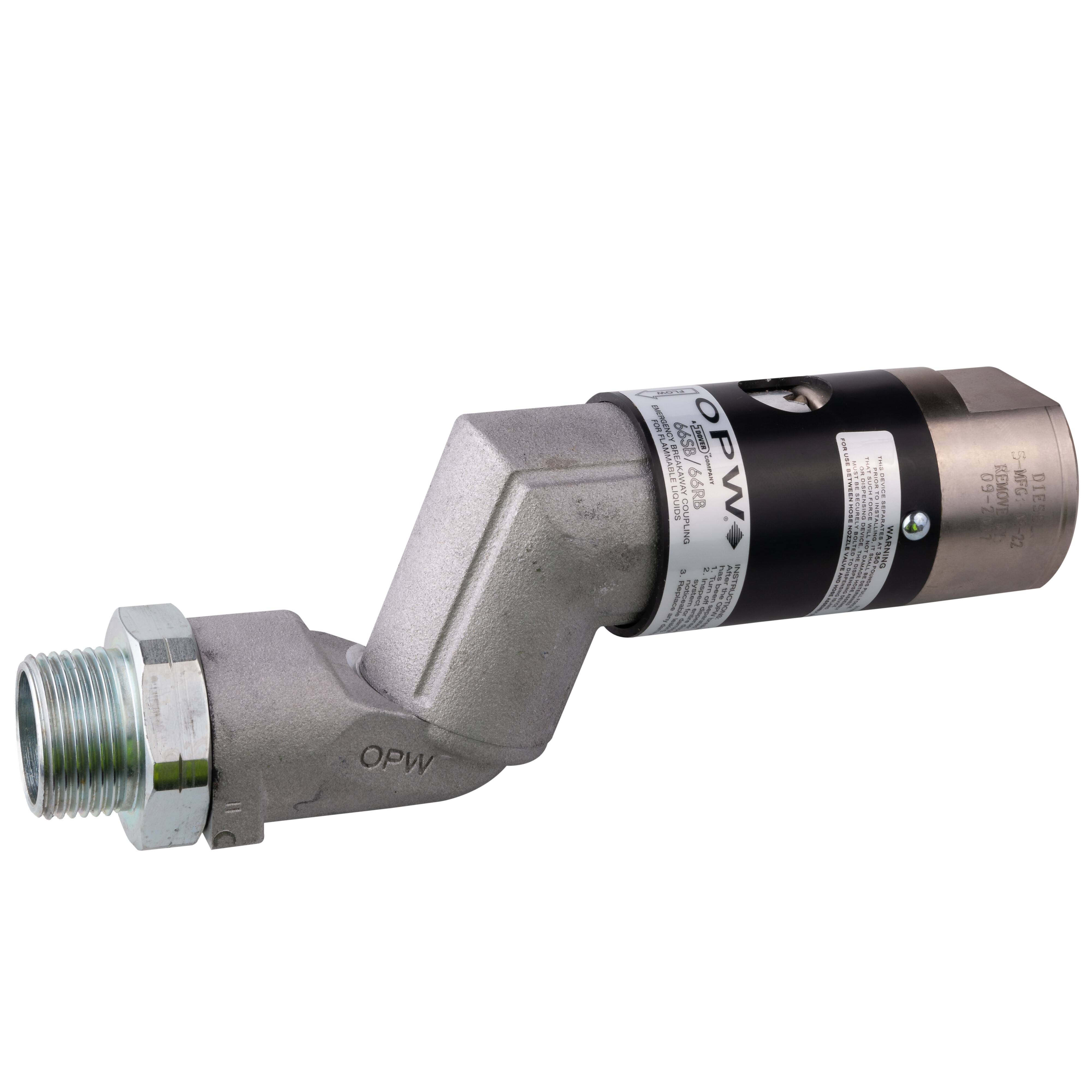

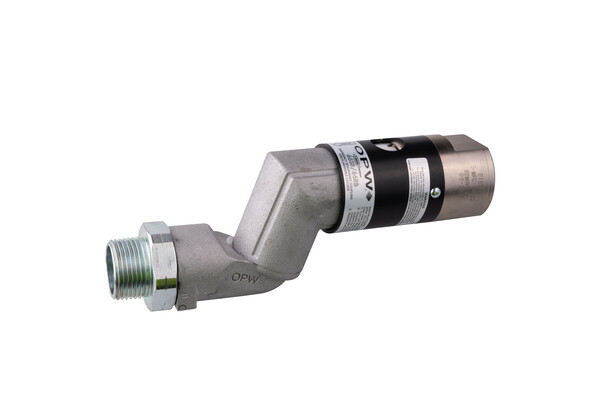

66SB-1010L BREAKAWAY SWIVEL 1" X 1" BSPT
66SB-1010-BSPP BREAKAWAY SWIVEL 1" X 1" BSPP
66SB-1010 BREAKAWAY SWIVEL 1" X 1" NPT
