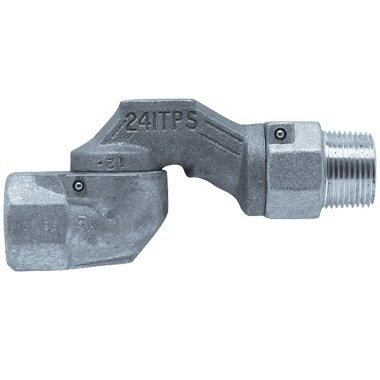

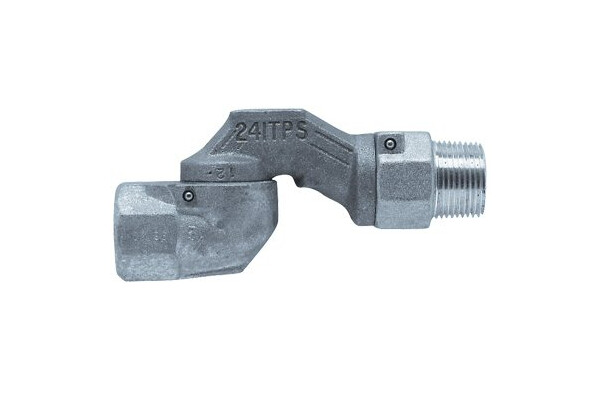

241TPS Series Hose Swivels

The OPW 241TPS Series of swivels are designed and rigorously tested for applications where easy nozzle and hose handling is important for customer convenience. Swivels are installed in between the nozzle and the hose to provide flexibility in the system to reduce customer strain, position the nozzle properly and reduce premature hose wear.

  • UL and ULC listed for use in gasoline, diesel, and up to 10% ethanol blends. See specific listings.
  • Allows for easy nozzle positioning in fill pipes – Utilizing two planes of rotation.
  • Reduces premature hose wear – Utilizing two planes of rotation.
  • Added protection vs. thermal and chemical degradation – Dual Seals.
  • 50 psi (3.45 bar) maximum pressure.

Materials

  • Body: Aluminium
  • Inlet Adaptor: Zinc
  • Outlet Adaptor: Zinc
  • Seals: Buna-N, Viton®
  • Bearing: Nylon
  • Weight: 3/4": .65 lbs. (.30 kg), 1": 1.55 lbs. (.703 kg)
  • Packed: 60 per case

Performance

Listings & Certifications



Item Number Inlet/Outlet

Length

Depth

A

B

241TPS-0241 241TPS-0492* (E85)

241TPS-75RF** (E25/B20)

3/4" F x 3/4" M (NPT) 4-7/8" 2-3/16"
19 mm x 19 mm 124 mm 56 mm

241TPS-1000

241TPS-10RF*** (B20)

1" F x 1" M (NPT) 6-1/32"  2-17/32"
25 mm x 25 mm 153 mm 64 mm

*241TPS-0492 is UL Listed for up to 85% Ethanol. **241TPS-75RF is UL Listed for up to 25% Ethanol and 20% Biodiesel. ***241TPS-10RF is UL Listed for up to 20% Biodiesel.o 20% Biodiesel.

Dimensions
