Dispenser Pan Fittings and Accessories

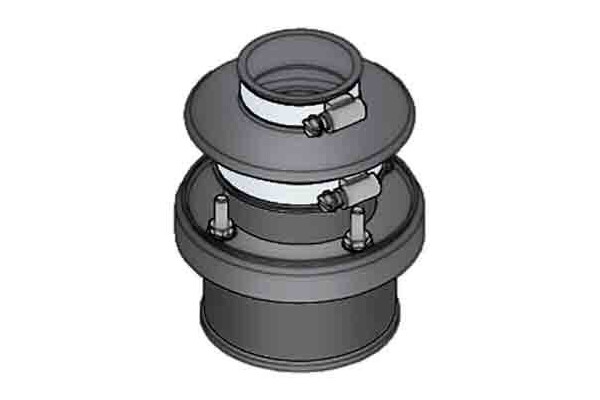

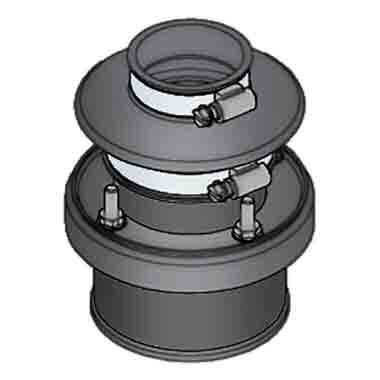

FlexWorks™ Dispenser Pan fittings are installed in the bottom of FlexWorks Dispenser Pans to accommodate Pipe and Flex Connector Entries. "The FIT-3530 and FIT-4530 are used to isolate and contain Flex Connectors."
Ordering Specifications - Dispenser Pan Fittings and Accessories
| Model | Application | Nominal Boot I.D. | Hole Saw Required | Weight | ||
|---|---|---|---|---|---|---|
| in. | cm | lbs. | kg | |||
| PEF-3520R | Pan Entry Fitting, 2" (5 cm) FRP Pipe Entry | 2-3/8 | 6 | 3" (8 cm) | 2.5 | 1 |
| PEF-3515R | Pan Entry Fitting, 1.5" (4 cm) Pipe Entry | 2 | 5 | 3" (8 cm) | 2.5 | 1 |
| PEF-3515X | Pan Entry Fitting, 1.5" (4 cm) Flex Connector (Hex Seal) | 2 (Hex) | 5 | 3" (8 cm) | 2.5 | 1 |
| FIT-3530 | Flexible Isolation Jacket, 30" (76 cm) Long x 3.5" (9 cm) I.D. | 2 | 1 | |||
| ITR-3015 | Isolation Tube Reducer, 3" (7.62 cm) x .5" (1.27 cm) | 1 | .5 | |||
| ITR-3020 | Isolation Tube Reducer, 3" (7.62 cm) x 2" (5.08 cm) | 1 | .5 | |||
