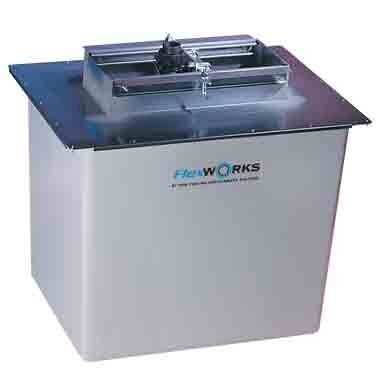

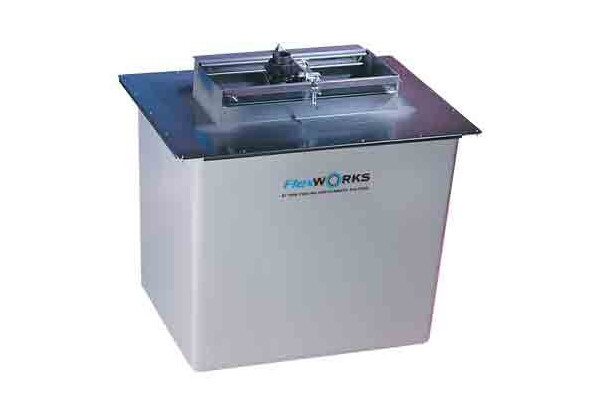

Wide-Access Fiberglass Dispenser Sumps



The wide sump surface area is designed to accommodate up to 4 product lines into the sump.

Features & Benefits
  • Conduitless Design – the fiberglass base and metal cap and frame are designed to direct conduit into the dispenser along the side of the sump to avoid requiring additional entry boot penetrations.
  • Multi-Product Flexible – the wide sump surface area is designed to accommodate up to 4 product lines into the sump.
  • Structural Integrity – engineered with thick side walls to withstand backfill and high water table forces. Precise glass and resin metering throughout the molding process ensures material consistency and maximizes the strength-to-weight ratio.
  • Smooth Sealing Surfaces For Leak-tight Sump Entry Fittings – our fully enclosed molding manufacturing method produces a uniform wall thickness while eliminating air entrapment. The result is a flat, smooth finish, both inside and out, which provides leak-tight pipe entries.
  • Full-Perimeter Liquid Collection Channel – facilitates quick leak detection and allows flexibility in locating leak sensors.
  • Convenient Shipping and Storage – sump boxes are nestable. Two sizes accept multiple frames to accommodate all common dispensers.
  • Full-Access Working Area – frame is attached after plumbing is complete.
  • Mounting Flange – Sump rests on island form crossbars for support during installation.

Categories
Ordering Information



Sump Model # Dimensions Weight with Top Box Part No. Top Assembly Part No.
A B C D
in. cm in. cm in. cm in. cm lbs. kg
DSF-1120 15 38 11 28 37 94 20 51 87 40 D02198M D02210
DSF-1123 15 38 11 28 37 94 23 58 87 40 D02198M D02212
DSF-1123F* 15 38 11 28 37 94 23 58 87 40 D02198M D02213
DSF-1543C** 18.5 47 14.75 37 40.5 103 39 99 90 41 210034 211351
DSF-1630 20 51 16 41 37 94 30 76 80 36 D02198M D02536
DSF-1741C 20.7 52.5 16.7 42.4 40.5 103 37 94 90 41 210051 212272
DSF-1836C** 21.5 55 17.25 44 40.5 103 36.5 93 90 41 210051 211350
SL-1100 Urethane Sealant - One Tube required per Sump (Packaged 12 tubes/case) * Flush Mount model supplied without rain lip due to dispenser frame clearance limitations; Frame Gasket Included. Anchor bolts provided, Stabilizer Bar Kits ordered separately; One kit required for each emergency & vapor valve. Refer to FlexWorks Dispenser Sump Selection Chart (See Pages 41 - 42 of the catalog) to select sumps for particular dispensers. Yellow indicates metal top model. ** These sumps are designed for Conduitless applications.



Dimensions

FlexWorks Dispenser Sump Selection Guide

Gilbarco

  Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
Gilbarco in. cm
Commercial 625, 650, 684 Series (21" / 53 cm Frame) 15-11/16" x 21" 40 x 53 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
Salesmaker-2 Series (21" / 53 cm Frame) 15-11/16" x 21" 40 x 53 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
Highline 11B Series (21" / 53 cm Frame) 15-11/16" x 21" 40 x 53 DS-1117F DSW-1117F     DSF-1117F SBK-1100J
Highline 111B Series (27" / 69 cm Frame) 15-11/16" x 27" 40 x 53 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Trimline 251, 252, 261, 262 (27" / 69 cm Frame) 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Trimline 154, 164, 251, 262 (27" / 69 cm Frame) 15-11/16" x 21" 40 x 69 DS-1117F DSW-1117F     DSF-1117F SBK-1100J
Commercial 650 Series (27" / 69 cm Frame) 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Highline Salesmaker Series 15-11/16" x 21" 40 x 69 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
Highline Salesmaker Series (27" / 69 cm Frame) 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Salesmaker-4 Series (27" / 69 cm Frame) 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Legacy Series 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Encore Series 23-1/2" x 40-9/16" 60 x 103 DS-1836 DSW-1836 DSW-1836CL DP-1836 FDS-4021 DSF-1836 DSF-1836C SBK-1800*
Advantage (36" / 91 cm Frame Models) 21-1/2" x 36" 55 x 91 DS-1630 DSW-1630 DP-1630   DSF-1630 SBK-1600
Quad or Dual
Blender X + O (36" / 91 cm)
Advantage (48" / 122 cm Frame Models) 21-1/2" x 48" 55 x 122 DS-1642 DSW-1642     DSF-1642 SBK-1600*
Blender Six-Hose
Blender Single-Hose
Blender X + O (48" / 122 cm) or X + 1 (48" / 122 cm)
MPD-1, MPD-2, MPD-3 16" x 48" 41 x 122 DS-1036         SBK-1000J
MPD Fixed Blender 16" x 48" 41 x 122 DS-1036         SBK-1000J

* For FDS-4721 Models, use Stabilizer Bar SBO-0300.

Bennett

Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
Bennett in. cm
Bennett Pacific 19-1/2" x 43-1/2" 49 x 110 DS-1543A         SBK-1500
Bennett 3000 Series 20" x 30" 51 x 76 DS-1123B         SBK-1100J

PD McLaren

Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
PD McLaren in. cm
RDR HSx (Single Product, Single Hose) 21" x 17.75" 53 x 45   DSW-1922 DSF-1922     SBK-1900
RDR HSx-D1 (Single Product, Dual Hose) 21" x 17.75" 53 x 45   DSW-1922 DSF-1922     SBK-1900
RDR HSx-D2 (Dual Product, Dual Hose) 21" x 17.75" 53 x 45   DSW-1922 DSF-1922     SBK-1900
RDR HSx-SAT (Master Unit and Satellites) 21" x 17.75" 53 x 45   DSW-1922 DSF-1922     SBK-1900
RDR HSx-X2 (Single Product, Dual Hose, One at a Time) 21" x 17.75" 53 x 45   DSW-1922 DSF-1922     SBK-1900

Gasboy

Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
Gasboy in. cm
0215A, 216A (197/8" Frame / 50.5 mm) 17-1/4" x 19-7/8" 49 x 50.5 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
52 and 53 Series 17" x 19-7/8" 44 x 50.5 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
8700, 8800, 9100, 9800 Series 17-1/4" x 25" 44 x 63.5 DS-1120         SBK-1100J
25" Frame 63.5 mm 17-1/4" x 25" 44 x 63.5
8700, 8800, 9100, 9800 Series (28-1⁄4" Frame / 72 mm) 17-1/4" x 28" 44 x 71 DS-1123 DSW-1123 DP-1123   DSF-1123F SBK-1100J
9850A 15-11/16" x 21" 40 x 69 DS-1120 DSW-1120     DSF-1120 SBK-1100J

* Stabilizer bar is installed widthwise in dispenser sump

Dresser / Wayne

Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
Dresser / Wayne in. cm
350, 357, 358, 360, 370 Series 15" x 25-7⁄8" 30 x 66 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Vista 380 Series (387, 389) 20" x 35" 51 x 89 DS-1229 DSW-1229     DSF-1229 SBK-1200J
Vista 590 Series (590, 595) 20" x 48" 51 x 122 DS-1242 DSW-1242     DSF-1242 SBK-1200J
Vista 390 Series (395, 399) 20" x 48" 51 x 122 DS-1242 DSW-1242     DSF-1242 SBK-1200J
Vista 490 Series 20" x 48" 51 x 122 DS-1242 DSW-1242     DSF-1242 SBK-1200J
DL390, 395, 399 Series 20" x 48" 51 x 122 DS-1242 DSW-1242     DSF-1242 SBK-1200J
HS1 Satellite / 287 Series 20" x 35" 51 x 89 DS-1229 DSW-1229     DSF-1229 SBK-1200J
Ovation 19-1⁄2" x 43-1⁄2" 50 x 110 DS-1543A** DSW-1543 DSW-1543C   FDS-4319* DSF-1543 DSF-1543C SBK-1500
Select 19-3⁄8" x 32-5⁄16" 49 x 82 DS-1928         SBK-1500A
Global Century 19-3⁄8" x 32-5⁄16" 49 x 82 DS-1928         SBK-1500A
Reliance 19-3⁄8" x 32-5⁄16" 49 x 82 DS-1928         SBK-1500A
HS4 / HS3 / Vista 19-3⁄8" x 32-5⁄16" 49 x 82 DS-1630 DSW-1630*** DP-1630   DSF-1630*** SBK-1600
Narrow Frame Helix (2000, 4000) 20" x 33" 51 x 84 DS-1630         SBK-1600
Wide Frame Helix (5000) 26" x 44" 51 x 112 DS-1741         SBK-1700

* For FDS-4319 Model use Stabilizer Bar SBO-0250 ** For DS-1543A Model use Stabilizer Bar SBK-1500A; for DSF/DSW-1543 Models use Stabilizer Bar SBK-1500 *** For DS-1928 Model use Stabilizer Bar SBK-1500A; for DSF/DSW-1630 Models use Stabilizer Bar SBK-1600

Tokheim

  Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
Tokheim in. cm
1200, 1248, 1250 Series 17-1/4" x 25" 44 x 64 DS-1120 DSW-1120     DSF-1120 SBK-1100J
330B, 333B Series 17-1/4" x 44" 44 x 112 DS-1642 DSW-1642     DSF-1642 SBK-1600
