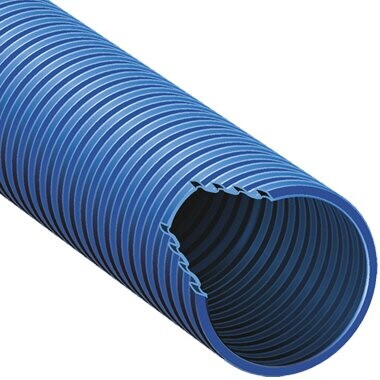

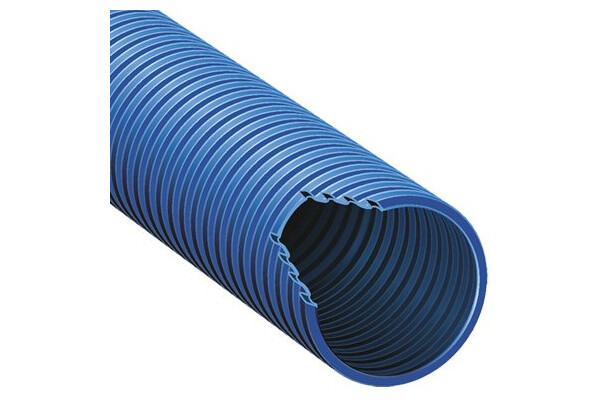

FlexWorks Dual Layer Access Pipe

A 4" diameter corrugated flexible conduit used to provide access to, and permit the future replacement of, the Flex piping, if desired. This corrugated pipe is strong enough to withstand H-20 loading requirements when properly buried and thick enough to minimize damage from shipping and jobsite handling. Access pipe can accommodate the 3/4", 1", 1-1/2", 2" and 3" FlexWorks supply pipe.

• Crush and puncture-resistant

• Semi-smooth liner facilitates ease of installation

• Saves you time and money

• No buried joints

Ordering Specifications - FlexWorks Double Layer Access Pipe



Item Number Application Minimum Bend Radius Packaging Dimensions Box Size Weight
I.D. O.D.
in. mm in. mm in. mm in. lbs. kg
AXP40-100 4" Double Layer Access Pipe 18 457 Box 100 ft. 4 102 4.760 121.0 42x42x32 115 52
AXP40-250 4" Double Layer Access Pipe 18 457 Box 250 ft. 4 102 4.760 121.0 60x60x32 218 99

Access Pipe Installation Instructions Sheet Order Number: API-0001
