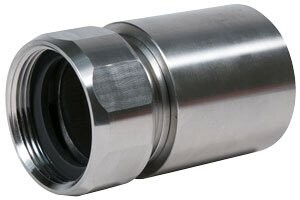

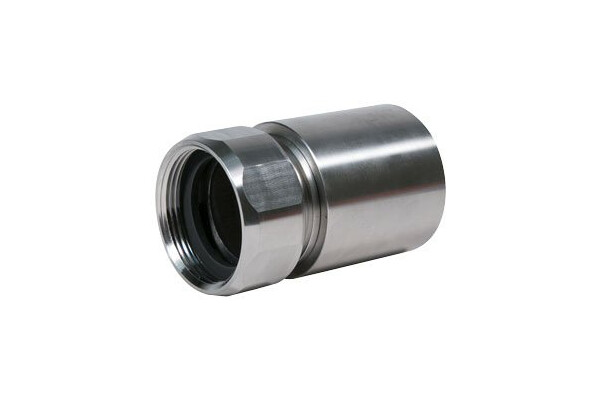

FlexWorks Swedge-On Couplings and Fittings

Double-Wall Swivel Pipe Couplings are a proven coupling and fitting system designed exclusively for use with FlexWorks Piping.

Double-Wall swivel couplings and fittings are of a double-wall design and are used to interconnect FlexWorks flexible piping. These UL/ULC-listed stainless steel couplings must be contained within containment sumps and not directly buried.

This pipe connection system includes an internally expanded stainless steel coupling attached to the end of a FlexWorks pipe section. The swivel coupling has a smooth sealing face fitted with a Viton® ring gasket.

Double-wall swivel couplings eliminate the need for cutting back the secondary jacket and rubber test boots. They have an integral interstitial access port for connector and test tubes.

These double-wall couplings permit higher interstitial testing pressures and eliminate added parts and labour costs.

Double-wall swivel couplings eliminate the need for cutting back the secondary jacket and rubber test boots. They have an integral interstitial access port for connector and test tubes. These double-wall couplings permit higher interstitial testing pressures and eliminate added parts and labour costs.

Double-wall pipe couplings require the use of an OPW Retail Fueling coupling machine to internally expand the stainless steel fitting onto the end of a FlexWorks pipe section. Internally expanded couplings have a long, successful history of reliable performance.

  • Crush and puncture-resistant
  • Semi-smooth liner facilitates ease of installation
  • Saves you time and money
  • No buried joints



Features & Benefits

  • UL / ULC listed for use with Flex piping
  • Quick, easy to install
  • All stainless steel couplings
  • Internally expanded couplings
  • Permanent Interstitial Test Port

3" Double Wall Coupling



  • Fully compatible with our 3" FlexWorks Piping
  • Interstice integrated with the pipe secondary

    Listings & Certifications

Ordering Specifications - FlexWorks Double-Wall Swivel Couplings and Fittings

Model Application Packaging
DPC-2150A 1.5" Double-Wall Swivel Pipe Coupling, Flat Gasket

EA

DPC-2200A 2" Double-Wall Swivel Pipe Coupling, Flat Gasket
DPC-2300A 3" Double-Wall Couplings

Ordering Specifications* - FlexWorks Swedge-On Couplings and Fittings

Model Application
SPC-0075 3/4" Pipe Coupling, Male NPT*
SPC-0100 1" Pipe Coupling, Male NPT
SPC-0150A 1.5" Swivel Coupling, Flat Gasket
SGP-0150 1.5" Swivel Gasket Pack for SPC-0150 (6 ea)
SGP-0200 2" Swivel Gasket Pack for SPC-0200 (6 ea.)
SGP-0300 3" Swivel for SPC-0300 (6 ea)
SPC-0200A 2" Swivel Coupling, Flat Gasket
SPC-0300 3" Swivel Coupling, Flat Gasket

STC-0150 1.5" Swivel Test Coupling
STC-0200 2" Swivel Test Coupling
STC-0300 3" Swivel Test Coupling

DPC-2150A 1.5" Double Wall Swivel Pipe Coupling, Flat Gasket
DPC-2200A 2" Double Wall Swivel Pipe Coupling, Flat Gasket
DPC-2300A 3" Double Wall Swivel Pipe Coupling

SFA-7575 3/4" Adaptor, 3/4" Female NPT to 3/4" Female NPT
SMA-7575 3/4" Adaptor, 3/4" Female NPT to 3/4" Male NPT
SFA-1010 1" Adaptor, 1" Female NPT to 1" Female NPT
SMA-1010 1" Adaptor, 1" Male NPT to 1" Female NPT
SMA-1515 1.5" Adaptor, 1.5" NPSH to 1.5" NPT
SMA-1520 1.5" Adaptor, 1.5" NPSH to 2" Male NPT
SMA-2020 2" Adaptor, 2" NPSH to 2" Male NPT
SMA-3030 3" Adaptor, 3" NPSH to 3" NPT

STF-1515 1.5" Tee, 1.5" NPSH x 1.5" NPSH x 1.5" NPT
STF-2020 2" Tee, 2" NPSH x 2" NPSH x 2" NPT
STF-2215 2" Tee, 2" NPSH x 2" NPSH x 1.5" NPT
STF-3030 3" Tee, 3" NPSH x 3" NPSH x 3" NPT

SEF-1515 1.5" Elbow, 1.5" NPSH x 1.5" NPT
SEF-2020 2" Elbow, 2" Female NPT to 2" Male NPSH*
SEF-3030 3" Elbow, 3" NPSH x 3" NPT

SRE-2015 2" Elbow Reducer, 2" NPSH x 1.5" NPT
SRT-2151 2" Reducer, 2" NPSH x 1.5" NPSH x 1.5" NPT

SCC-1515 1.5" Connector, 1.5" NPSH to 1.5" NPSH
SCC-2020 2" Connector, 2" NPSH to 2" NPSH
SCC-3030 3" Connector, 3" NPSH to 3" NPSH
*British Fittings are available in Europe. Please contact Liquip
