Flexible Entry Boots

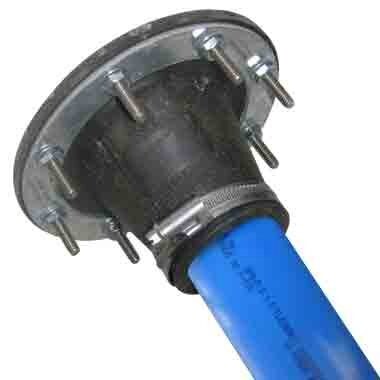

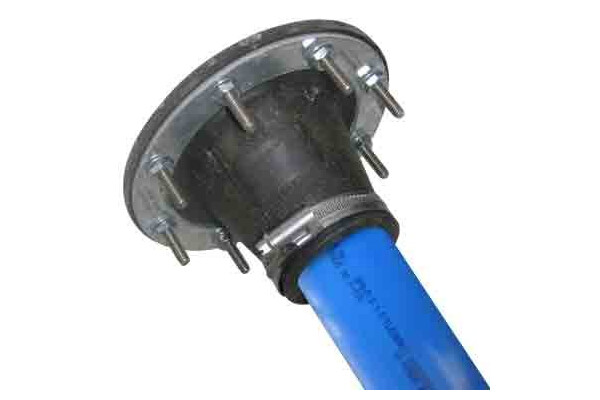

FlexWorks™ Flexible Entry Boots are reliable, safe seals for pipe and conduit entries into underground containment sumps.

These entry boots allow for angled pipe entries and have no exposed metal parts to the underground environment.  These entry boots are available in a variety of sizes and designs to accommodate rigid and flexible piping, ducting and Access Pipe.

  • Watertight pipe and conduit entries
  • Installation on flat or round surface
  • Added flexibility permitting angled entries up to 15 degrees
  • 3rd Party Testing Approved
Item Number Application

Weight

Hole Saw

lbs.

kg

in.

cm

EBF-0751 1/2", 3/4" and 1" Conduit Entry Boot Fitting

1.2

0.5

2-3/8"

6.03

EBF-0150 1.5"  Entry Boot Fitting for 1.5” DW FlexWorks Pipe

1.5

0.7

3-3/4"

9.52

EBF-0200 2" Entry Boot Fitting for 2" DW FlexWorks Pipe or 2" LCX

1.8

0.8

3-3/4"

9.52

EBF-0200F 2" Entry Boot Fitting for 2" DW FlexWorks or 2" Rigid Pipe

1.3

0.6

3-3/4"

9.52

EBF-0300 3" Entry Boot Fitting for 3" DW FlexWorks Pipe

1.8

0.8

5-1/2"

12.7

EBF-0400 4"  Entry Boot Fitting for 4" Rigid Pipe/AXP Pipe

2.0

0.9

5-1/2"

13.97

EBF-0600 6" Entry Boot Fitting for 6" Rigid Pipe

Saber Saw

SAB-7400 4" Sump Access Boot

2.0

0.9

5"

12.7

Flexible Entry Boot Manual Order Number: EBM-0001
