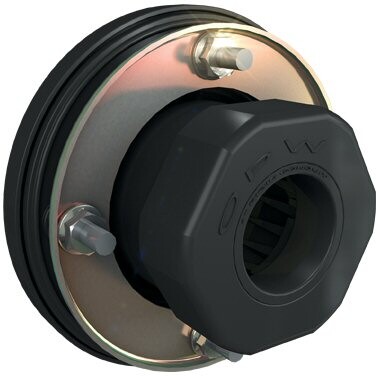

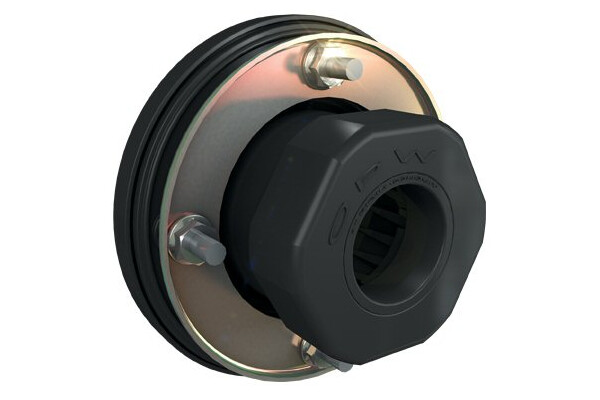

The "REF" Rigid Entry Fitting

As a result of OPW Fueling Containment System's all inclusive development program to bring Next Generation Solutions to the market, OPW is proud to announce the release of our new state-of-the-art Rigid Entry Fitting.

How is this fitting different than other fittings in the industry? Our new Rigid Entry Fitting has minimal exposed rubber, yet still accommodates ground movement. The sealing redundancy throughout the fitting provides maximum containment and unmatched protection from water intrusion.

  • Sealing redundancy throughout – maximum containment and unmatched protection from water intrusion
  • Preserves total accessibility – for monitoring, maintenance, testing and repair
  • Maintains flexibility to accommodate pipe and ground movement
  • Hard shell exterior – to weather the elements and abuse of the underground environment
Item Number Description

Weight

lbs.

kg

REF-0075C Rigid Entry Fitting, 3/4" Rigid Conduit, Nylon

.90

0.40

REF-0100C Rigid Entry Fitting, 1.0" Rigid Conduit, Nylon

.95

0.43

REF-0150 Rigid Direct Bury Entry Fitting for 1.5" Flexworks

2.35

1.06

REF-0200 Rigid Direct Bury Entry Fitting for 2" Flexworks

2.45

1.11

REF-0200F Rigid Direct Bury Entry Fitting for 2.0" Smith SW FRP

2.45

1.11

REF-0200X Rigid Direct Bury Entry Fitting for 2" LCX DW FRP

2.45

1.11

REF-0300F Rigid Direct Bury Entry Fitting for 3" Smith SW FRP

2.85

1.30

REF-4015 Flexworks Rigid Entry Fitting 4" x 1.5"

2.75

1.25

REF-4020 Flexworks Rigid Entry Fitting 4" x 2.0"

2.85

1.29

Hole Saw Size Table

Entry Fitting Model #

Hole Saw Dimension

REF-0075C, REF-0100C

2.5"

REF-0150, REF-0200, REF-0200F, REF-0200X, REF-4015, REF-4020

4"

REF-0300F

5"
