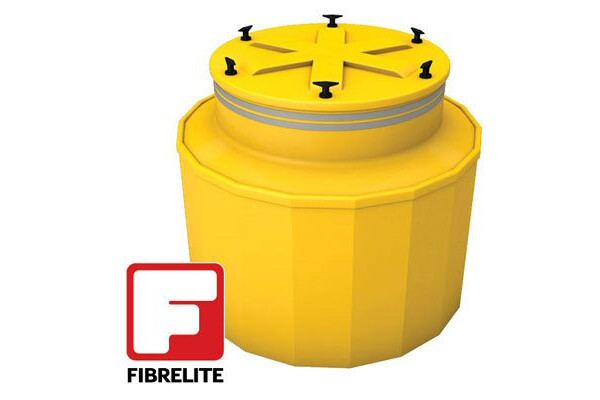

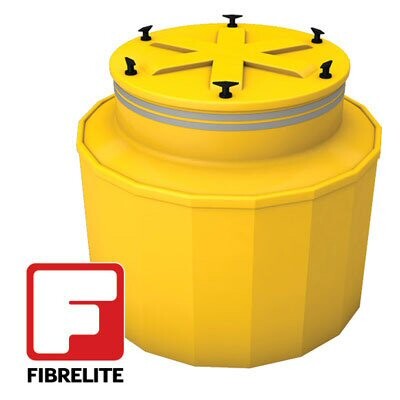

Fibrelite Tank Sump Systems

OPW Fibrelite tank sumps function as a liquid-tight isolation container providing secondary containment for tank fittings valves, pumps and Flexworks or Fiberglass pipe fittings.

They also provide surface access to the tank itself, as well as a clean, dry environment for future service and maintenance. The height adjustable risers accommodate different tank bury depths.

  • Watertight – structure will not deform under water pressure
  • For depths greater than 60”, use S8CRD “deep bury” sumps or extensions.
  • Vacuum testable – during and after installation
  • Available for both new and retrofit applications
  • Sump extensions available; extend sump height by 12" per extension
  • Sump material is Fibreglass

Tank Sump Systems Include: Tank Sump Base, Top-hat with Stainless Steel Retaining Ring, Water Tight Internal Tank Sump Lid, Manhole Cover and Frame, Skirt Bonded to Frame, Polyurethane Sealant.

Resin Kit must be ordered separately. See the Ordering Specifications Chart below.

Part #   Application Tank Collar (in) Dia. (in) Height (in) Base WT Cover (in) Bonded Manhole
Skirt I.D. (in) Colour
S8CR-390BL-WT33 45" x 33" Tank Sump with Black MH Cover

42

45

33

Collar Ring

33

36 FL90

Black

S8CRD-390BL-WT33  45" x 45" Tank Sump with Black MH Cover

42

45

45

Collar Ring

33

36 FL90

Black

S8SB-390BL-WT33 45" x 33" Solid Tank Sump with Black MH Cover

N/A

45

33

Solid

33

36 FL90

Black

S14CR-390BL-WT33  52" X 33" Tank Sump with Black MH Cover

48

52

33

Collar Ring

33

36  FL90

Black

S14CR-390BL-WT33  52" X 33" Tank with Gray MH Cover

48

52

33

Collar Ring

33

36  FL90

Black

Ordering Specifications - Tank Sump Resin Kits

  Part # Application
S-CR-FGK FRP Kit Used For Bonding Collar Ring Sump to FRP Tank Collar And Top Hat To Sump Base
RK-5000 Fiberglass Epoxy Kit (Qt. Size)
S-TH-FGK FRP Kit used for Top Hat to Sump

Tank Sump Resin Kit Matrix

  Tank Sump Part #

Collar Ring Attachment to Tank

Top Hat Attachment to Sump Base

S-CR-FGK (1 gal)

RK-5000

S-TH-FGK (1 qt)

S8SB / S8SBD

n/a

n/a

1

S8CR / S8CRD

1

1

n/a*

S14CR

1

2

n/a*

S15CR

2

3

n/a*

* S-CR-FGK kit covers both Collar Ring and Top Hat application
