Fibrelite Tank Sumps

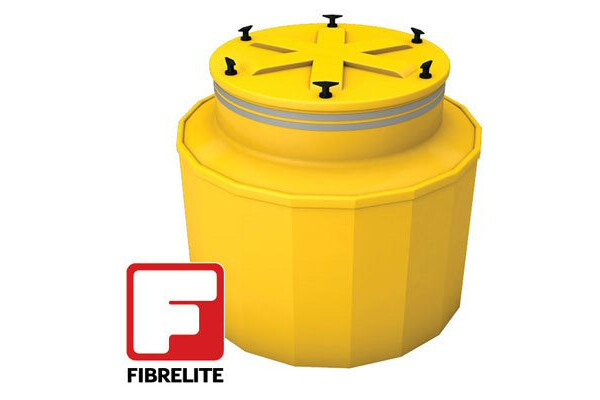

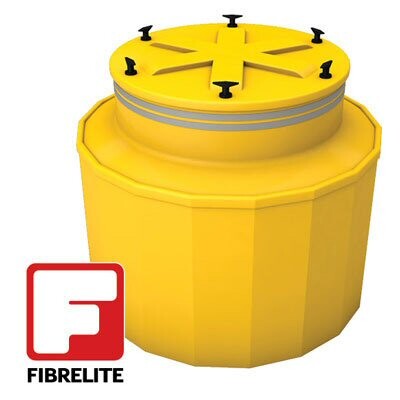

OPW Fibrelite tank sumps function as a liquid-tight isolation container providing secondary containment for tank fittings valves, pumps and Flexworks or Fiberglass pipe fittings.

They also provide surface access to the tank itself, as well as a clean, dry environment for future service and maintenance. The height - adjustable risers to accommodate different
tank bury depths.

  • Watertight – structure will not deform under water pressure
  • Tank Sump bury depths 40" to 60". For depths greater than 60", see extensions below.
  • Vacuum testable – during and after installation
  • Available for both new and retrofit applications
Part #

Dia. (in)

Overall Height (in)

Base

Reducer Opening (in)

Cover (in)

Weight (lbs)

S8SB-390WT-KIT

45

39

Solid

33

33

138

S8SBD-390WT-KIT

45

48

Solid

33

33

146

S8CR-390WT-KIT

45

48

Collar Ring

33

33

116

S8CRD-390WT-KIT

45

63

Collar Ring

33

33

93

S14CR-390WT-KIT

52

48

Collar Ring

33

33

138

S15CR-3100WT-KIT

57

51

Collar Ring

37

37

165

Kit's include Base, Reducer and Cover.

Resin Kit must be ordered separately.

Ordering Specifications - Sump Base

Part #

Application

Dia. (in)

Height

(in)

Base

Weight (lbs)

S45 18" Dia. X 18" Deep FRP Solid Base Sump

18

18

Solid

33

S8SB 45" Dia. X 24" Deep FRP Sump W/ Solid Structural Base

45

24

Solid

90

S8SBD 45" Dia. X 33" Deep FRP Sump W/Solid  Structural Base

45

33

Solid

98

S8CR 45" Dia. X 33" Deep FRP Sump W/ 42" Collar Ring Attachment

45

33

Collar Ring

68

S8CRD 45" Dia. X 45" Deep FRP Sump W/ 42" Collar Ring Attachment

45

45

Collar Ring

45

S14CR 52" Dia. X 33" Deep FRP Sump W/48" Collar Ring Attachment

52

33

Collar Ring

75

S15CR 57" Dia. X 36" Deep FRP Sump W/54" Collar Ring Attachment

57

36

Collar Ring

100

Tank SUMP BASE, TOP-HAT, COVER and RESIN KIT must be ordered separately.

Ordering Specifications - Top Hat

Part #

Application

Dia. (in)

Reducer Opening (in)

Weight (lbs)

S42-3100-TH 42" Dia. Round Sump - 37" Dia. Reducer Opening Other FRP Sumps

42

37

36

S8-390-TH S8 Sump system includes retaining ring

45

33

35

S8-3100-TH S8 Sump system includes retaining ring

45

37

37

S14-390-TH S14 Sump system includes retaining ring

52

33

40

S14-3100-TH S14 Sump system includes retaining ring   57       33      50
S15-3100-TH S15 Sump system includes retaining ring   57  37 52


Ordering Specifications - Optional Extensions for Deep Bury Applications

Part #

Application

Dia. (in)

Reducer Opening (in)

Weight (lbs)

S8-EX12 12" Deep Yellow FRP Extension For S8 Sump

45

12

18

S14-EX12 12" Deep Yellow FRP Extension For S14 Sump

52

12

21

S15-EX12 12" Deep Yellow FRP Extension For S15 Sump

57

12

23

Dimensions - Turbine Sump Watertight Cover Lids

Part #

Application

Dia. (in)

Weight (lbs)

WT-31 31" Dia. Watertight, Structural Spill Platform

31

11

WT-33 33" Dia. Watertight, Structural Spill Platform

33

13

WT-37 37" Dia. Watertight, Structural Spill Platform

37

17





Ordering Secifications - Tank Sump Accessories

Part #

Application

SL-1100 Urethane Sealant
S-CS-SEALANT 2 Part Self Leveling Sealant - Used to Seal Gap Between the Top-Hat and Skirt
S-CR-FGK Kit for Bonding Collar Ring to Tank Collar - Includes Resin, Catalyst and Glass Tape.
RK-5000 Epoxy Resin Kit Bonding Collar Ring Sump to Fiberglass Tank Collar
PLEX-TUBE 1 Tube Of Plexus Adhesive
Plexis Applicator Single Barrel Manual Applicator
WSP-WTS-OPC 6" Nitrile Observation Port Cap for WSP
WTS-CAP-14 14" Nitrile Container Port Cap for WSP
WS-RING-31 31" Stainless Steel Retaining Ring for Top-Hat
WS-RING-33 33" Stainless Steel Retaining Ring for Top-Hat
WS-RING-37 37" Stainless Steel Retaining Ring for Top-Hat
S-TH-RISER-31 10" Deep Top-Hat Riser for All 31" Dia. Opening
S-TH-RISER-33 10" Deep Top-Hat Riser for All 33" Dia. Opening
S-TH-RISER-37 10" Deep Top-Hat  Riser for All 37" Dia. Opening
