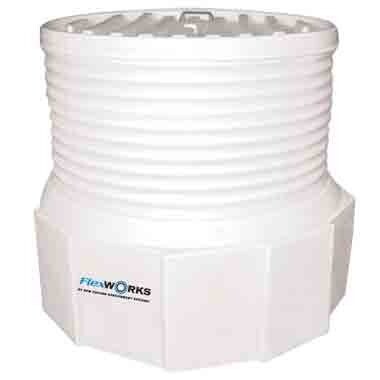

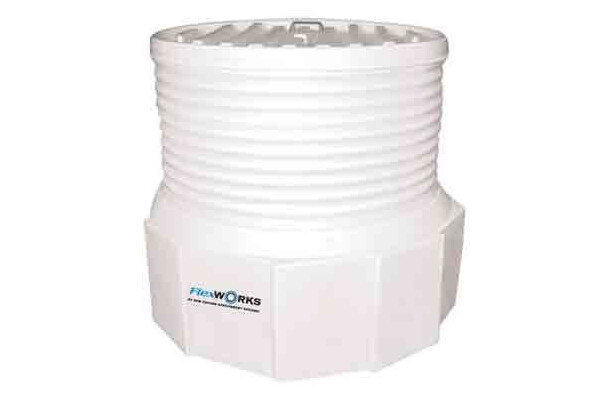

FlexWorks Polyethylene Tank Sumps with Compression Fit Covers

OPW-FCS one piece polyethylene tank sumps are listed with Underwriters Laboratories, Inc., (UL), and have passed the requirements for Canada at Underwriters Laboratories of Canada (ULC), KIWA and IP.

  • Liquid-tight covers
  • Liquid-tight riser/base joints and pipe entries
  • Chemically compatible
  • Structurally strong
  • Height adjustable
  Model # Application

Dimensions

Sump Base Burial Depth

Weights

Manway Diameter

A Cover

B Height

C x D Panel

No. of Panels

E Base

max.

min.





in.

mm

in.

mm

in.

mm

in.

mm

in.

mm

in.

mm

in.

mm

lbs.

kg

MBS-3645H Tank Sump Medium Bury 36" x 45"

 36

 914

 33

 838

 39

 990

 16 x 9

 406 x 229

 12

 45

 1,143

 44

 1,118

 24

 610

 90

 40.8

DBS-3645H Two-Piece Deep Bury 36" x 45"

36

914

46

1168

48.5

1231

18 x 10

457 x 254

12

49

1,244

55

1,397

33

838

140

63.5

Dimensions



Replacement Parts & Accessories

Part Number Description
SCS-0030-HW Sump Cover Seal
TSC-0030 Tank Sump Cover
SCS-0036-HW Sump Cover Seal
TSC-0036 Tank Sump Cover
SCS-0042-H Sump Cover Seal
TSC-0042 Tank Sump Cover
WIP-HK-8000 Sump Cover Handle
