FlexWorks Polyethylene Tanks Sumps with Mechanically Fastened Covers

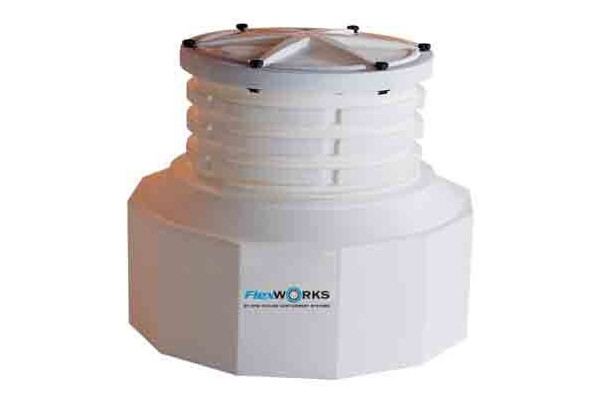

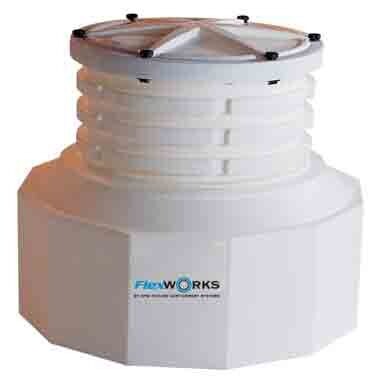

OPW-FCS one piece polyethylene tank sump with Mechanically Fastened Cover.

  • Long-Term Watertight Performance/Strength & Rigidity – one-piece design provides reliable watertight integrity and long product life. Designed to resist deformation under burial and high water table forces.
  • Installation Flexibility – multiple flats provide maximum area for locating pipe entries.
  • Easy Field Height Adjustability – the special ribbed height adjustment design makes adjustments to finished grade, if necessary, quick and easy.
Part # Application

Dimensions

Sump Base Burial Depth

Weight



Manway Diameter

A Cover

B Height

C x D Panel

No. of Panels

E Base

max.

min.

in.

mm

in.

mm

in.

mm

in.

mm

in.

mm

in.

mm

in.

mm

lbs.

kg

TSS-4536 Tank Sump Shallow Bury, 36" x 45"

36

914

33

838

34

864

12 x 12

305 x 305

12

45

1,143

39

991

28

711

84

38

TSM-4536 Tank Sump Medium Bury, 36" x 45"

36

914

33

838

39

991

17 x 12

432 x 305

12

45

1,143

44

1,118

33

838

86

40

TSM-4842 Tank Sump Medium Bury, 42" x 48"

42

1,066

39

991

39

991

17 x 11

423 x 279

14

48

1,219

44

1,118

33

838

88

40

TSD-4536 Tank Sump Deep Bury, 36" x 45"

36

914

33

838

51

1,295

17 x 11

423 x 279

14

48

1,219

56

1,422

33

838

90

41

TSD-4842 Tank Sump Deep Bury, 42" x 48"

42

1,067

39

991

51

1,295

17 x 11

432 x 279

14

48

1,219

56

1,422

33

838

92

42

Parts Diagram

Dimensions - Deep Bury (TSD)

Dimensions - Medium Bury (TSM)

Dimensions - Shallow Bury (TSS)

Replacement Parts and Accessories

Part Number   Description
H13257M Knob
H13213M Bracket
H13214M Seal 33" (838 mm)
H13215M Seal 39" (991 mm)
C04420M Ring 33" (838 mm)
C04432M Ring 39" (991 mm)
D02025M Cover 33" (838 mm)
C02034M Cover 39" (991 mm)
CLC-33 Latched Fiberglass Tank Sump Lid
