Special Application Sumps & Extensions

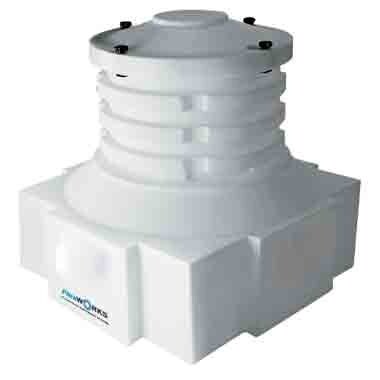

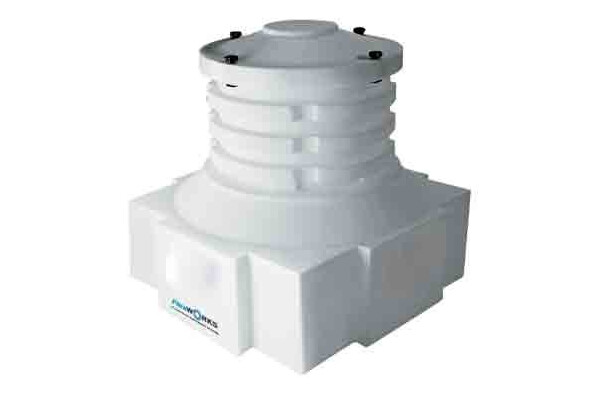

FlexWorks™ Special Application Sumps are installed below-grade and provide a convenient means of housing a multitude of underground piping connections and equipment, including valves, filters, meters and pumps. The PSL-3830 Line Connection Sump has large horizontal flats to accommodate multiple piping entries. The PSL-3630 Tall Mini-Sump has long vertical flats to accommodate applications with varying pipe entry heights. The PSL-2430 Mini-Sump is ideal for connecting long pipe runs in a contained area.

Model # Application

Manway Diameter

Dimensions

A Cover

B Height

Dimension C x E

No. of Panels

E Base

Burial Depth

Weight

Max.

Min.

in.

mm

in.

cm

in.

cm

in.

cm

in.

mm

in.

mm

in.

mm

lbs.

kg

PSL-2430 Special Application Sump, 24" x 30"

30

762

27

686

24

914

16 x 10

406 x 254

8

26

660

36

914

26

660

36

16

PSL-3830 In-Line Sump, 38" x 30"

30

762

27

686

36

914

12 x 38

305 x 965

12

38

965

41

1041

29

737

85

38

PSL-3630 Special Application Sump, 36" x 30"

30

762

27

686

36

914

28 x 20

711 x 254

8

26

660

48

1219

40

1016

42

19

Special Application Sump Dimensions
