Transition Sumps
FlexWorks Above-Grade / Below-Grade Transition Sumps.
Features & Benefits

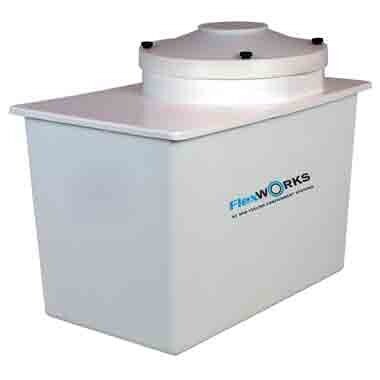

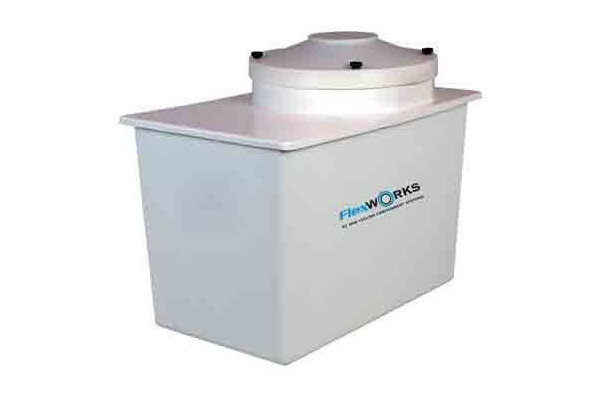

Model PSTF-4630 Transition Sump (Fiberglass Sump/Fiberglass Top)
- Large, injection-molded FRP containment chambers are stackable for convenient shipping and storage
- Removable FRP top allows maximum access during installation of fittings and equipment, and provides a rigid entry fitting area adjacent to the cover for vertical entry of above-grade piping
- The PSTF-4630 is not adjustable, but FRP Sump Height Extenders (DSFE-4612) are available for the PSTF-4630 to accommodate deeper bury applications
Model PST-4630 Transition Sump (Polyethylene Sump/Fiberglass Top)
- Large, heavily ribbed polyethylene containment chamber provides structural rigidity
- Adjustable to a minimum of 26"
Model PST-5030 One-Piece Polyethylene Transition Sump
- Flat entry fitting area extending from the sump base accommodates vertical pipe entries
- Heavily ribbed riser provides strength and rigidity
- Adjustable to a minimum of 29"
- Ordering Information
Model # Application Height Weight in cm lbs kg PSTF-4630 Fiberglass Transition Sump with Fiberglass Top 39 99 90 41 PST-4630 Poly Transition Sump with Fiberglass Top 42 107 100 45 PST-5030 One Piece Poly Transition Sump with Poly Top, 38" x 50" 38 97 100 45 PTS-4021 Two-Piece Poly Transition Sump with Poly Top 46.5 118 110 49 Model PSTF-4630 Transition Sump (Fiberglass Sump/Fiberglass Top)
Model PST-4630 Transition Sump (Polyethylene Sump/Fiberglass Top)
Model PST-5030 One-Piece Polyethylene Transition Sump
