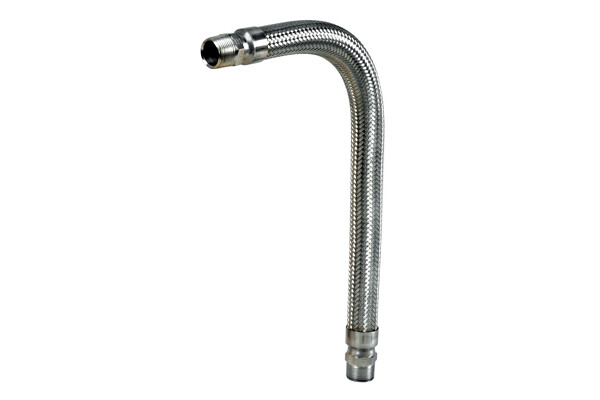

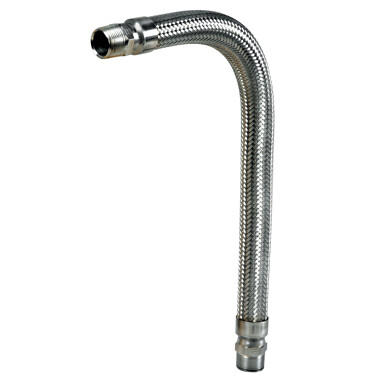

Stainless Steel Flexible Connectors

Stainless Steel Flexible Connectors provide flexibility in the installation and operation of fuel piping systems. Flexible Connectors can be used as a convenient means of connecting piping to pumps and dispensers and throughout the piping systems where connections and changes of direction are necessary. Flexible Connectors dampen the effect of ground and/or piping movement.

All stainless steel construction ensures long service life and corrosion protection. Flexible Connectors are rated for 150 psig (10 bar) working pressure, as well as for full vacuum service. Compatible with diesel, gasoline, methanol, ethanol and MTBE. Available as Male by Male and Male Swivel by Male, Male 90º and Easy Clamp Connectors.

NAFTA approved, can be used in any country.

  • Maximum working pressure: 150 PSIG (10 bar)
  • Service temperature range: –320° F to 1500° F
  • Minimum burst pressure: 750 PSIG (52 bar)
  • Inherent hoop strength of convoluted hose allows full vacuum service

Materials
Hose:
322 Stainless Steel..
Wire Braid: 304 Stainless Steel.
Pipe Nipples: SCH. #80 Stainless Steel.
Swivel: Viton®/Buna Seals.

Approvals

The UL and ULC rating for the OPW Flex Connectors are rated for both UST and AST applications. Refer to the summary chart below.

OPW Product US Classification UL Approval ULC Approval Testing std. ORD536, ASME and CSA B51
FC075 MVTV UST ONLY UST and AST
FC10 MVTV UST ONLY UST and AST
FC15 (1-1/2") QLWV UST and AST UST and AST
FC20 (2") QLWV UST and AST UST and AST
FC30 MVTV UST ONLY UST and AST

Ordering Specifications - Male x Male


Max. Angular Bending (Degree)
Max. Lateral Offset
Min. Bend Radius
Model No.
NPT Thread Size
Length
Hose O.D.
Static Pos.
Intermit. Flexing
Static Install.
Intermit. Flexing
Static Install.
Intermit. Flexing
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
FC075-MM12
.75
19.1
12
304.8
1.0
25.4
100º
55º
2.0
50.8
1.2
30.5
4.5
114.3
8
203.2
FC10-MM12
1
25.4
12
304.8
1.3
33.0
70º
45º
1.4
35.6
0.9
22.9
5.5
139.7
9
228.6
FC10-MM18
1
25.4
18
457.2
1.3
33.0
135º
85º
4.5
114.3
2.1
53.3
5.5
139.7
9
228.6
FC10-MM24
1
25.4
24
609.6
1.3
33.0
180º
125º
8.6
218.4
2.1
53.3
5.5
139.7
9
228.6
FC15-MM12
1.5
38.1
12
304.8
2.25
57.2
90º
35º
1.5
38.1
.75
19.1
4
101.6
11
279.4
FC15-MM14
1.5
38.1
14
355.6
2.25
57.2
90º
35º
1.5
38.1
.75
19.1
4
101.6
11
279.4
FC15-MM18
1.5
38.1
18
457.2
2.25
57.2
150º
55º
4.0
101.6
1.5
38.1
4
101.6
11
279.4
FC15-MM24
1.5
38.1
24
609.6
2.25
57.2
180º
85º
8.0
203.2
2.75
69.9
4
101.6
11
279.4
FC15-MM30
1.5
38.1
30
762.0
2.25
57.2
180º
115º
12.0
304.8
2.75
69.9
4
101.6
11
279.4
FC20-MM12
2
50.8
12
304.8
2.72
69.1
75º
30º
1.5
38.1
0.60
15.2
5
127.0
12
304.8
FC20-MM14
2
50.8
14
355.6
2.72
69.1
75º
30º
1.5
38.1
0.60
15.2
5
127.0
12
304.8
FC20-MM18
2
50.8
18
457.2
2.72
69.1
120º
50º
3.0
76.2
1.5
38.1
5
127.0
12
304.8
FC20-MM24
2
50.8
24
609.6
2.72
69.1
180º
75º
7.0
177.8
3.0
76.2
5
127.0
12
304.8
FC20-MM36
2
50.8
36
914.4
2.72
69.1
180º
105º
12.0
304.8
3.0
76.2
5
127.0
12
304.8
FC30-MM18
3
76.2
18
457.2
3.97
100.8
70º
35º
2.0
50.8
1.0
25.4
8
203.2
16
406.4
FC30-MM24
3
76.2
24
609.6
3.97
100.8
110º
55º
4.8
121.9
2.5
63.5
8
203.2
16
406.4


Ordering Specifications - Male Swivel x Male


Max. Angular Bending (Degree)
Max. Lateral Offset
Min. Bend Radius
Model No.
NPT Thread Size
Length
Hose O.D.
Static Position
Intermit. Flexing
Static Install.
Intermit. Flexing
Static Install.
Intermit. Flexing
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
FC15-SWM12
1.5
19.1
12
304.8
2.25
57.2
90°
35°
1.5
38.1
0.75
19.1
4
101.6
11
279.4
FC15-SWM14
1.5
25.4
14
355.6
2.25
57.2
90°
35°
1.5
38.1
0.75
19.1
4
101.6
11
279.4
FC15-SWM18
1.5
25.4
18
457.2
2.25
57.2
150°
55°
4.0
101.6
1.50
38.1
4
101.6
11
279.4
FC15-SWM24
1.5
25.4
24
609.6
2.25
57.2
180°
85°
8.0
203.2
2.75
69.9
4
101.6
11
279.4
FC20-SWM12
2
38.1
12
304.8
2.72
69.1
75°
30°
1.5
38.1
0.60
15.2
5
127.0
12
304.8
FC20-SWM14
2
38.1
14
355.6
2.72
69.1
75°
30°
1.5
38.1
0.60
15.2
5
127.0
12
304.8
FC20-SWM18
2
38.1
18
457.2
2.72
69.1
120°
50°
3.0
76.2
1.50
38.1
5
127.0
12
304.8
FC20-SWM24
2
38.1
24
609.6
2.72
69.1
180°
75°
7.0
177.8
3.0
76.2
5
127.0
12
304.8

  • Contact customer service for special sizes or other applications such as female threads, swivels and elbow fittings.
  • In North America call 800-422-2525. International call 513-870-3315.

Note: Stainless Steel Flexible Connector models listed above are for use in NAFTA countries only, such as Canada and Mexico.
