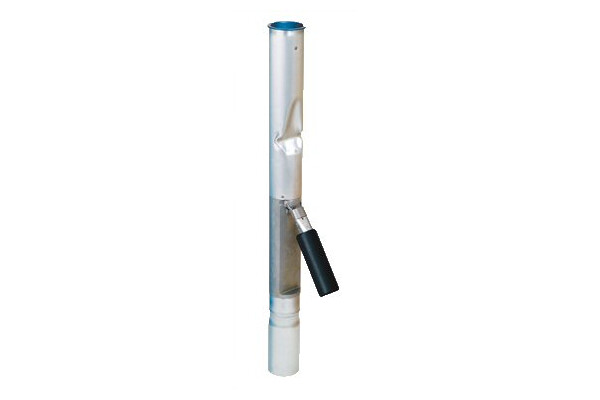

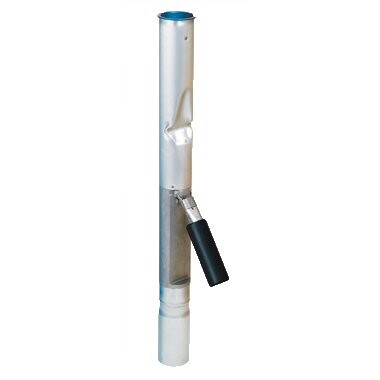

71SO Overfill Prevention Valve



The CARB-certified OPW 71SO vapor-tight Overfill Prevention Valve is designed to prevent the overfill of underground storage tanks by providing a positive shut-off of product delivery. The shut-off valve is an integral part of the drop tube used for gravity filling. The OPW 71SO allows easy installation (without breaking concrete) and requires no special manholes.

The OPW 71SO is a vapor-tight two-stage shut-off valve. When the liquid level rises to about 95% of tank capacity, the valve mechanism is released, closing automatically with the flow. This reduces the flow rate to approximately 5 gpm through a bypass valve. The operator may then stop the filling process and disconnect and drain the delivery hose. As long as the liquid exceeds the 95% level, the valve will close automatically each time delivery is attempted.

If the delivery is not stopped and the liquid rises to about 98% of tank capacity, the bypass valve closes completely. No additional liquid can flow into the tank until the level drops below a reset point.

Raising the Standard in Overfill Prevention

From the company that brought you the industry standard OPW 61SO, OPW raises the standard with the introduction of the New 71SO Overfill Prevention Valve – breakthrough innovation that takes overfill prevention to a whole new level of overfill perfection.

The new 71SO is a two-stage, positive shut-off valve, providing completely automatic operation with no pre-checks to perform, no resets, and no overrides to be broken or abused. The valve closes when the tank level rises to 95% capacity and provides a special bypass valve so the tank can be filled to a maximum capacity of 98%. The 71SO is available for direct-bury and remote applications.

  • Eliminates curing issues due to hot or cold temperatures
  • Easier, quicker, installation
  • Higher quality, more reliable installation
  • Lower costs
  • Greater protection against fugitive emissions and pressure decay
  • Fastest flow rate in the industry

Features & Benefits
  • Completely Automatic Operation – does not rely on the alertness or speed of response of the delivery attendant for certainty of overfill prevention.
  • Keeps the Top of UST “Dry,” per EPA Requirements – eliminating possible leaks at loose bung fittings and the need for double containment on vent lines.
  • Does Not Rely on Pressure in the UST to Stop Flow – allowing faster fill times and reducing spill risk.
  • Speeds Delivery Operations – product flows unimpeded into the tank until the hose “kick” that accompanies the valve shut-off provides a clear signal that the liquid has reached the shut-off level.
  • Simple and Inexpensive Installation – in both two-point and coaxial fill applications, no additional excavation, manholes or vent piping are required.
  • Simple, Easy and Quick Installation – No excavation or special manholes required.
  • Economical – Costs a fraction of expensive, complicated and difficult-to-install valves.
  • Furnished Complete – Supplied with new upper and lower drop tubes, mounting hardware and thorough instructions for quick job site time.
  • Completely Automatic Operation – No pre-checks to perform, no resets, and no overrides to be broken or abused.
  • No Pressurization of the Tank – Operates directly from liquid level.
  • Will Accept a Dipstick for Gauging.
  • Retrofits Directly – For both new and existing tanks with 4" fill risers.
  • Quick Drain Feature – Automatically drains hose when head pressure is relieved.
  • No Epoxy Sealants Required!

Recommended products for replacement

    Technical Information

    Materials
    Valve Body: Cast aluminium
    Float: Nitrile rubber, closed cell foam
    Valve: Aluminium
    Seals: Viton®
    Upper & lower drop tube: Aluminium
    Plastic parts: Acetal
    Hardware: Stainless steel

    Ordering Information
    Product No. Description

    Bury Depth

    Tank Diameter

    Upper Tube

    Lower Tube Length

    Overall Length.

    Max. Riser Length

    Max. Nominal Tank Dia.

    Max. Actual Tank Dia.

    Weight

    ft.

    m

    ft.

    m

    in.

    m

    in.

    m

    in.

    m

    in.

    m

    in.

    m

    in.

    m

    lbs.

    kg

    71SO-400C Vapor-Tight Overfill Valve, 5 Ft. Bury, 8 Foot Tank

    5

    1.5

    8

    2.4

    60

    1.5

    83

    2.1

    154 ¾

    3.9

    53 ½

    1.4

    96

    2.4

    107

    2.7

    16

    7

    71SO-410C Vapor-Tight Overfill Valve, 10 Ft. Bury, 10 Foot Tank

    10

    3.0

    10

    3.0

    120

    3.1

    102

    2.6

    234 ¾

    5.9

    113 ½

    2.9

    120

    3.1

    126

    3.2

    25

    11

    71SO-420C Vapor-Tight Overfill Valve, 10 Ft. Bury, 12 Foot Tank

    10

    3.0

    12

    3.6

    120

    3.1

    126

    3.2

    258 ¾

    6.5

    113 ½

    2.9

    144

    3.7

    150

    3.8

    26

    12

    71SO-4000 Non Vapor-tight Overfill Valve, 5 ft. Bury, 8 ft. Tank

    5

    1.5

    8

    2.4

    60

    1.5

    83

    2.1

    155 ¾

    3.9

    53 ½

    1.4

    96

    2.4

    107

    2.7

    16

    7

    71SO-4010 Non Vapor-Tight Overfill Valve, 10 Ft. Bury, 10 ft. Tank

    10

    3.0

    10

    3.0

    120

    3.1

    102

    2.6

    234 ¾

    5.9

    113 ½

    2.9

    120

    3.1

    126

    3.2

    25

    11

    71SOM-412C E85 Vapor-tight Overfill Valve

    10

    3.0

    10

    3.0

    120

    3.1

    102

    2.6

    234 ¾

    5.9

    113 ½

    2.9

    120

    3.1

    126

    3.2

    38

    17.3

    71SO-TOOLCT 71SO Installation Tool

    2.5

    1

    61JSK-4RMT Jack Screw Kit for Vapor-Tight Remote Applications

    1.5

    0.7

    61JSK-4410 Jack Screw Kit for Composite Base Spill Buckets

    1

    0.5

    61JSK-44CB Jack Screw Kit for Cast Iron Base Spill Buckets

    1

    0.5

    71JSK-4RMT E85 Jack Screw for Remote-Fill Applications

    1

    0.5

    71JSK-44MA E85 Jack Screw for Direct-Fill Applications

    1.5

    0.7

    61JSK-4410 AND 61JSK-44CB Instruction Sheet Order Number: H15289M



    Product No. Description

    A- Upper Tube Length

    B- Lower Tube Length

    C- Overall Length

    Max. Riser Length

    Max. Nominal Tank Dia.

    Max. Actual Tank Dia.

    Weight

    in.

    m

    in.

    m

    in.

    m

    in.

    m

    in.

    m

    in.

    m

    lbs.

    kg

    71SO-400CT Testable Vapor-Tight Overfill Valve, 5 Ft. Bury, 8 Foot Tank

    60

    1.5

    83

    2.1

    154 ¾

    3.9

    53 ½

    1.4

    96

    2.4

    107

    2.7

    16

    7

    71SO-410CT Testable Vapor-Tight Overfill Valve, 10 Ft. Bury, 10 Foot Tank

    120

    3.1

    102

    2.6

    234 ¾

    5.9

    113 ½

    2.9

    120

    3.1

    126

    3.2

    25

    11

    71SO-420CT Testable Vapor-Tight Overfill Valve, 10 Ft. Bury, 12 Foot Tank

    120

    3.1

    126

    3.2

    258 ¾

    6.5

    113 ½

    2.9

    144

    3.7

    150

    3.8

    26

    12
