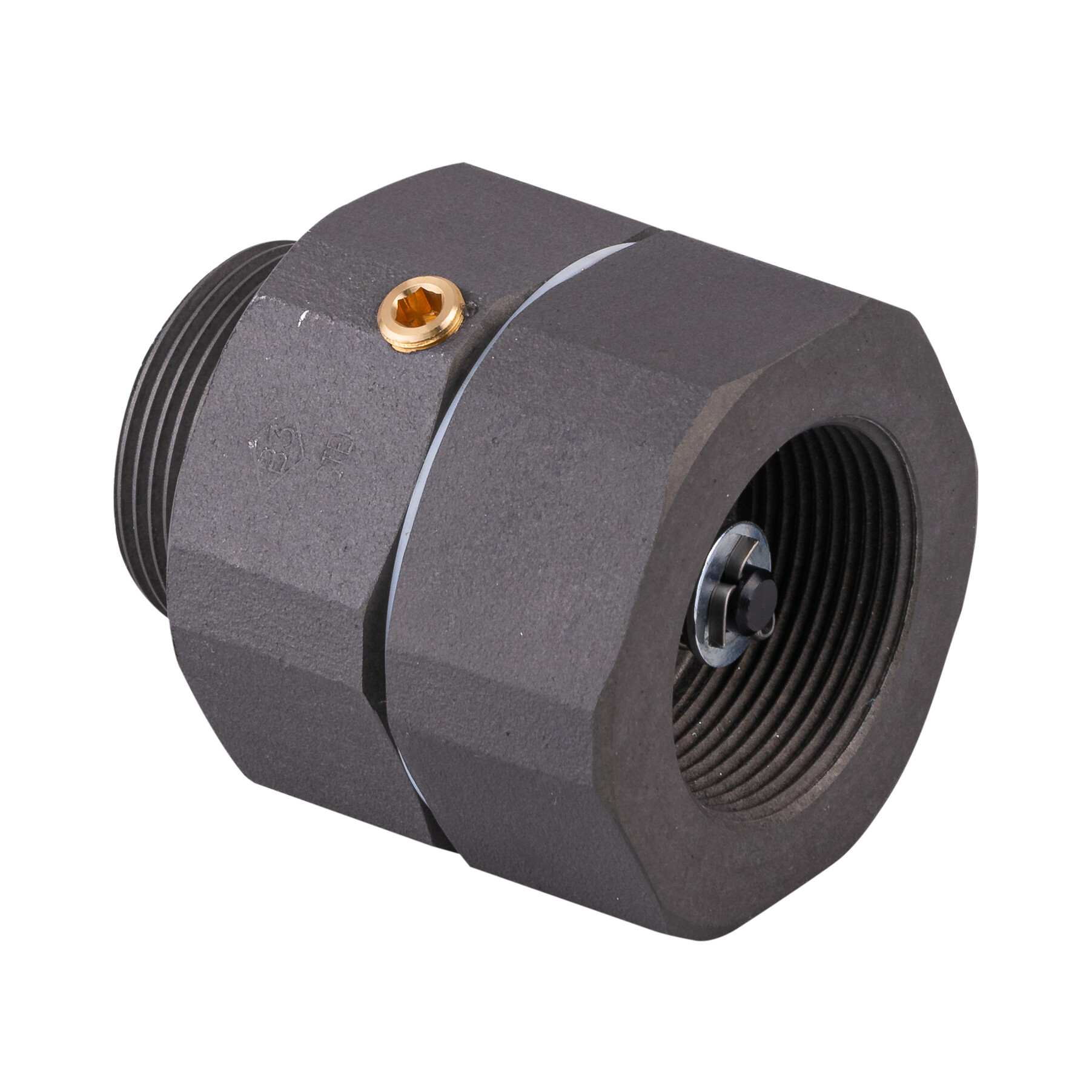

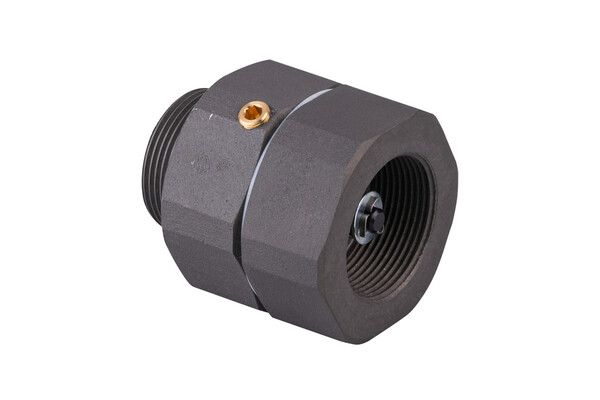

38mm aluminium threaded swivel


The SJ1.5L is an aluminium swivel incorporating a 38mm threaded mount and integral check valve to retain residual hose internal pressure (mandatory under NSC Regulations).

Features & Benefits
  • Ball bearings allow for trouble free rotation, thus eliminating thrust & hose kinking.
  • Swivel body is manufactured from lightweight aluminium, anodised for long life.
  • Swivel incorporates a check valve, to retain residual pressure in the hose. (Mandatory under NSC regulations).
  • Can be mounted via hose tail or threaded end.

Technical Information

Poppet opens at 65kPa.

1½” tapered male BSP thread (outlet).
1 ½” parallel female BSP thread (inlet).

-Anodised aluminium body.
-Acetal poppet.
-Steel ball bearings.
-Viton sealing o-ring.
-Stainless Steel fasteners.

0.55 kg.

The swivel incorporates a check valve, to retain residual pressure in the hose. (Mandatory under NSC regulations)

Remove cotter pin to remove poppet.
Remove plug to release ball bearings and separate halves.

Adjustment or Service

Ordering Information

SJ1.5L: Swivel 1½" straight swivel c/w hold back valve.

Associated Equipment

SJ032: Swivel 32mm (1 ¼") with hold back valve and ball bearings.
