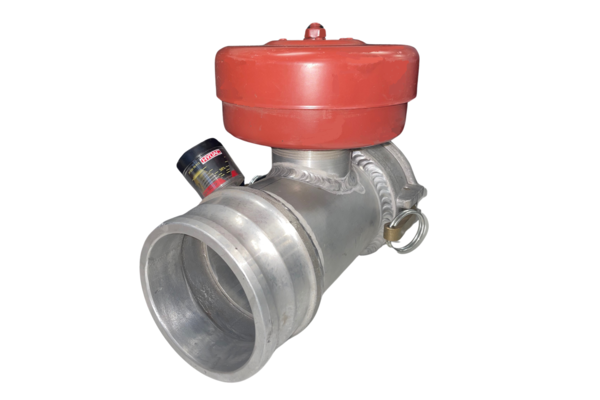

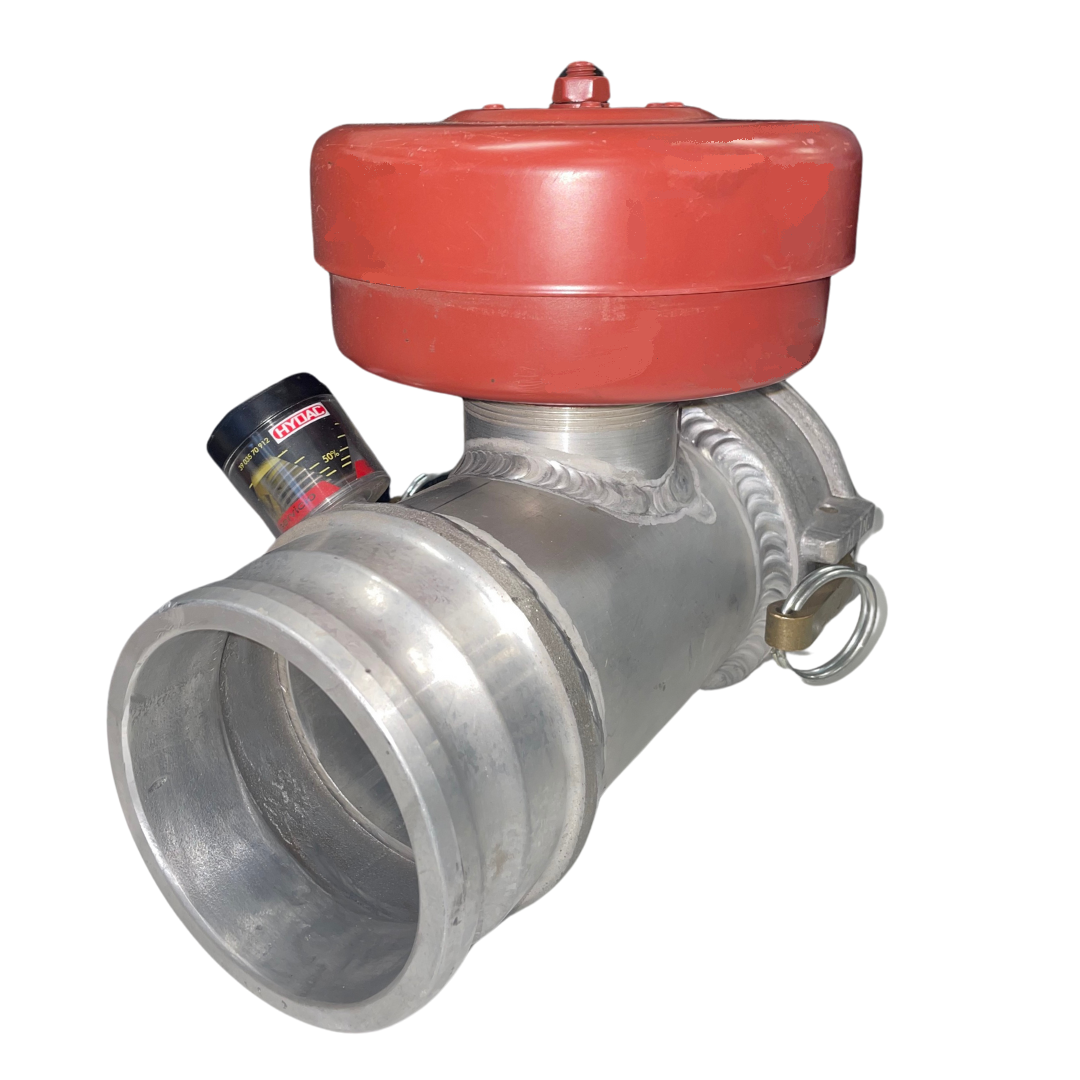

VCAF103



The VCAF103 is typically used at remote fuel storage
facilities where a vapour recovery system is not available.

When truck delivers its load of fuel, the empty space in the tank is filled with air from around the tank. Without this
filter fitted, any particles (i.e. dust) in the air is sucked into
the tank which mixes with the fuel and can then cause
damage in vehicle engines.

The need was initiated by a mine site incentive to keep the fuel being delivered as clean as possible by significantly reducing ingress of particles larger than 5 microns.

Features & Benefits
  • 4" camlock fitting.
  • 3 micron particle filter with clogging indicator
  • 2,600 LPM capacity.
  • Replaceable element.

Technical Information

Clogging Indicator

No Yellow visible - element is clear.

Some Yellow Visible - element is clogging.

Full yellow Visible - Element requires replacement.



Ordering Information

VCAF103: Vapour Recovery Air Filter.
