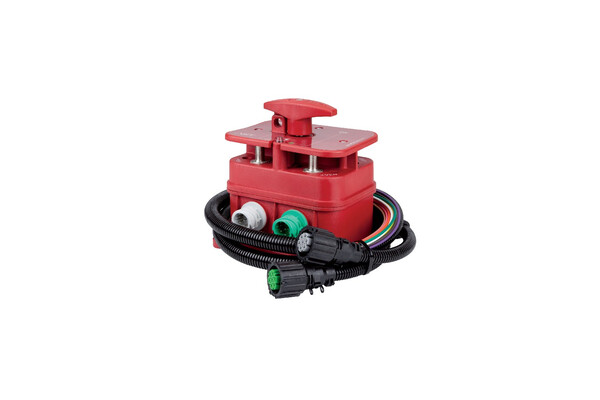

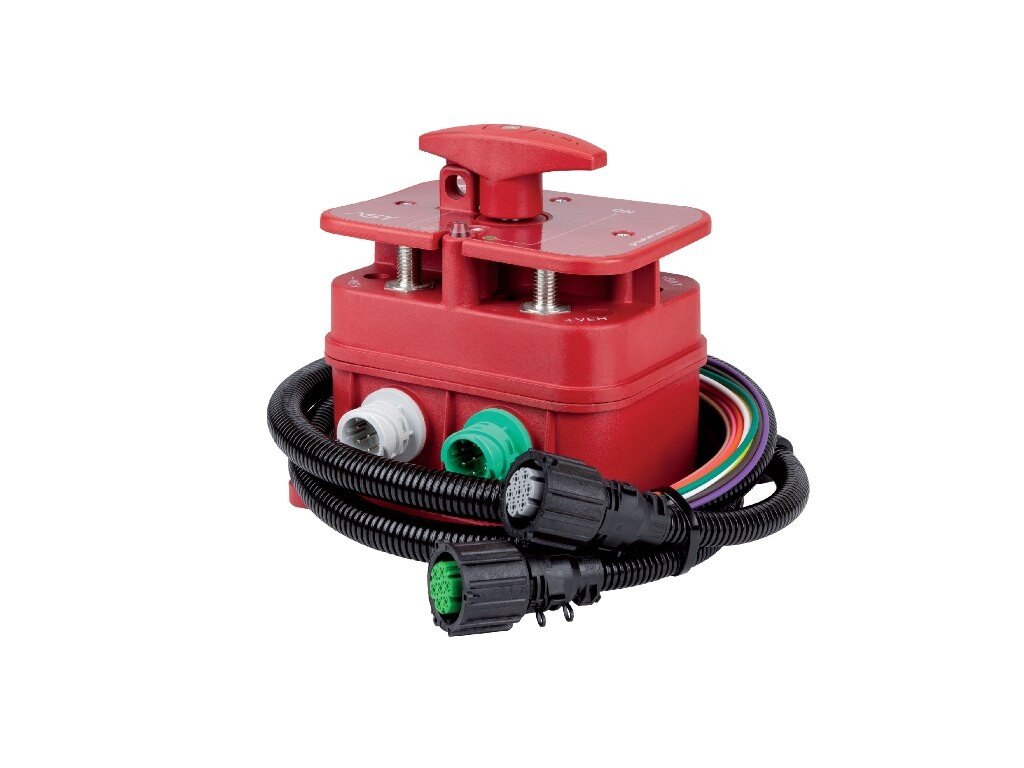

Battery Isolation Switches



Liquip are proud to distribute AST's range of T-switch battery isolation switches. These T-switches are used in conjunction with Liquip's Rollover sensors to ensure power is isolated in the event of a rollover incident.

Recommended products for replacement

Categories
Features & Benefits
  • Integrated Lockout.
  • Auto Control Handle Reset when tripped.
  • Trip with loss of V- applied to Green connector @ Pin 3.
  • On Off Indicator.
  • High Visibility Fascia.
  • 2 x Normally Open Auxiliary Circuits.
  • LED Status Indicator.
  • IP67 Rated.
  • Continuous Rating - 500Amps.
  • Peak current capability (30 sec) - 2250 Amps.
Technical Information

Approvals
T-Switches are compliant to ADR (European Agreement Concerning Transport of Dangerous Goods by Road), CE, EX IIG and EEx m ib IIC T6 / T4 E1 10R - 036832 certified. The products also fully comply to Australian Standard as spelled out in document AS2809-2008 as well as ADR2009 9.2.2.3 European ADR Standard. Valid certificate of registration and compliance are 05 ATEX 6050 X & E1 10R - 036832.

Ordering Information

TSW12K: Manual 500amp Isolation Switch 12V.

TSW24K: Manual 500amp Isolation Switch 24V.

HRN1.5X2RW: Harness Kit for TS12 and TS24 Isolation Switch.

Associated Equipment

RS400: Liquip Rollover Sensor.

RS400-12Z: RS400 + 12V AST/Baxters BIS.

RS400-24Z: RS400 + 24V AST/Baxters BIS.

MES3:3” Mechanical Engine Strangler.

MES5: 5” Mechanical Engine Strangler.
