API Load/Unload Valve - API490 Series



Liquip's API490 Series API adaptors are a precisely engineered and built bottom loading and discharge adaptor that conforms to API RP 1004 and provides total interchangeability with all loading valves.

The API490 Series features a two-piece body with replaceable nosecone. API adaptors are available in various options and can be fitted with a range of seals to suit most applications.

Liquip can supply API adaptor valves as single units or in "Kits". A Kit is a part that combined two or more parts e.g. API496VZ is an API adaptor supplied with a mating 4" TTMA gasket. Please see ordering information tab for further detail.

Features & Benefits
  • Aluminium components are heat treated for strength and hardness.
  • Complies to API RP1004 – compatible with all API couplers.
  • Ease of maintenance for reduced downtime.
  • Set of mounts to match industry standard air interlock valves such as the Liquip CV300.
  • Ergonomically designed handle.
  • Lightweight design – 4.8kg
  • High strength, transparent nylon material sight glass to visually check for retained product available.
  • Flange is gramophone finish for improved sealing.
  • Minimum pressure drop through a 100mm bore.
  • Electrical continuity guaranteed by use of non-anodised nose cone.
  • Drain plug, ½” BSPT (when fitted).

Recommended products for replacement

    Technical Information

    Pressure Rating
    Pressure rated to API RP1004 standard (517 kPa).

    100mm bore all through for minimum pressure drop.

    Weight
    4.8kg.

    Materials
    Main body is aluminium.

    Poppet Travel
    52mm.

    Operation
    Spring loaded poppet can be opened by the handle for discharge, or by an API coupler for bottom loading or unloading.

    Continuity
    Electrical continuity guaranteed by use of non-anodised nose cone.

    Mounting
    Gramophone finished flange is 100mm TTMA.

    Mounts with handle on the right hand side.

    Ordering Information (common models)

    API adaptors

    API491: API adaptor, Handle moves UP, Viton B70 seals, No sight glass or drain,

    API491D: API adaptor, Handle moves DOWN, Viton B70 seals, No sight glass or drain.

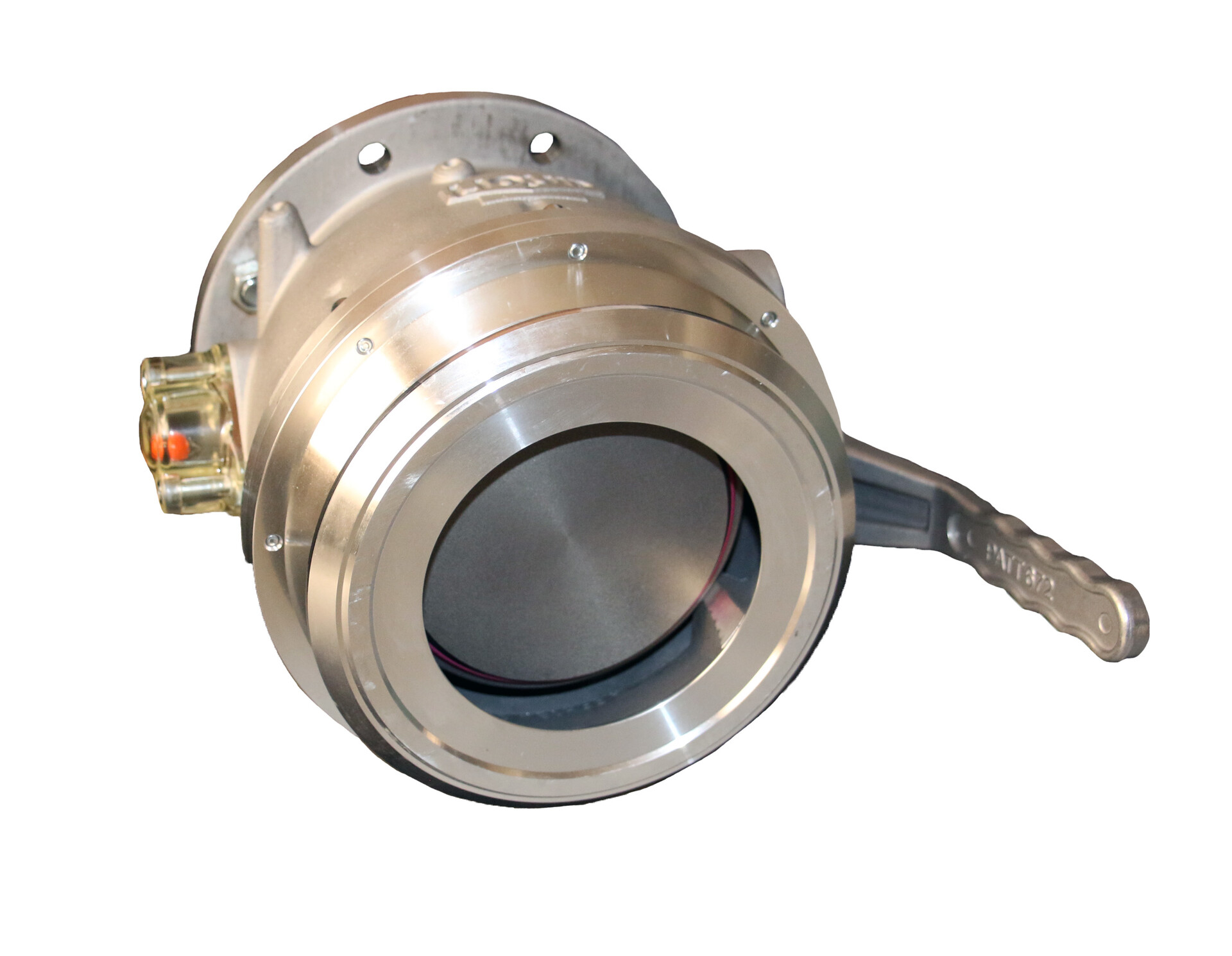

    API496: API adaptor, Handle move UP, Viton B70 seals, Complete with sight glass & drain.

    API496B: API adaptor, Handle move UP, Viton B70 seals,  Complete with blank plate & drain.

    API496D: API Adaptor, Handle moves DOWN, Viton B70 seals, Complete with sight glass & drain.

    API496DVG: API Adaptor, Handle moves DOWN, Viton GFLT seals, Complete with sight glass & drain.

    API496J:  Jet Selective API Adaptor, Handle move UP, Viton B70 seals, Complete with sight glass & drain.

    API496DJ: Jet Selective API adaptor, Handle moves DOWN, Viton B70 seals, Complete with sight glass & drain.

    API496G: Avgas Selective API Adaptor, Handle move UP, Viton B70 seals, Complete with sight glass & drain.

    API496DG: Avgas Selective API Adaptor, Handle moves DOWN, Viton B70 seals, Complete with sight glass & drain.

    API496C: Chemical Spec API Adaptor, Handle moves UP, complete with Aluminium/Stainless Steel components, FFKM seals and sight glass.

    API adaptors supplied with 4" TTMA gasket

    API491Z: API491 supplied with 4" TTMA Cork gasket.

    API491DZ: API491D supplied with 4" TTMA Cork gasket.

    API491VZ: API491 supplied with 4" TTMA Viton gasket.

    API496Z: API496 supplied with 4" TTMA Cork gasket.

    API496VZ: API496 supplied with 4" TTMA Viton gasket.

    API496BVZ: API496B supplied with 4" TTMA Viton gasket.

    All models are also available in Z-Kit form, which come supplied with a NBR Cork, Viton A or PTFE gasket. If you require a specific configuration please contact the Liquip Sales team.

    Associated Equipment

    API-DC: Aluminium API Dust Cap with Camlocks.

    API-DCLA: Aluminium API Dust Cap with lockable levers.

    0657: 4" TTMA NBR Cork Gasket.

    0657V: 4" TTMA Viton A Gasket.

    4292: 4" TTMA PTFE Gasket.

    BF4-SG-25: 4" TTMA Flange Sight glass 25mm thickness.

    BF4-SG-45: 4" TTMA Flange Sight glass 40mm thickness.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    API ADAPTORS

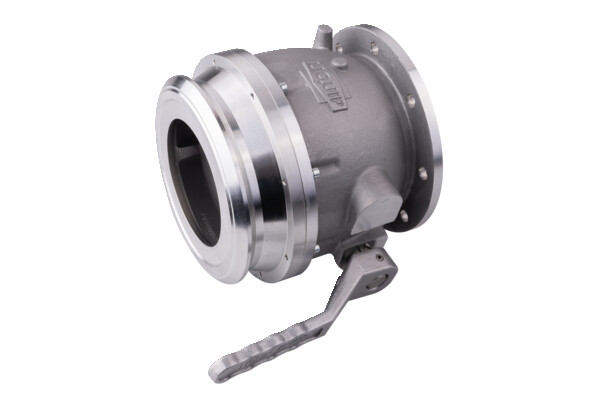

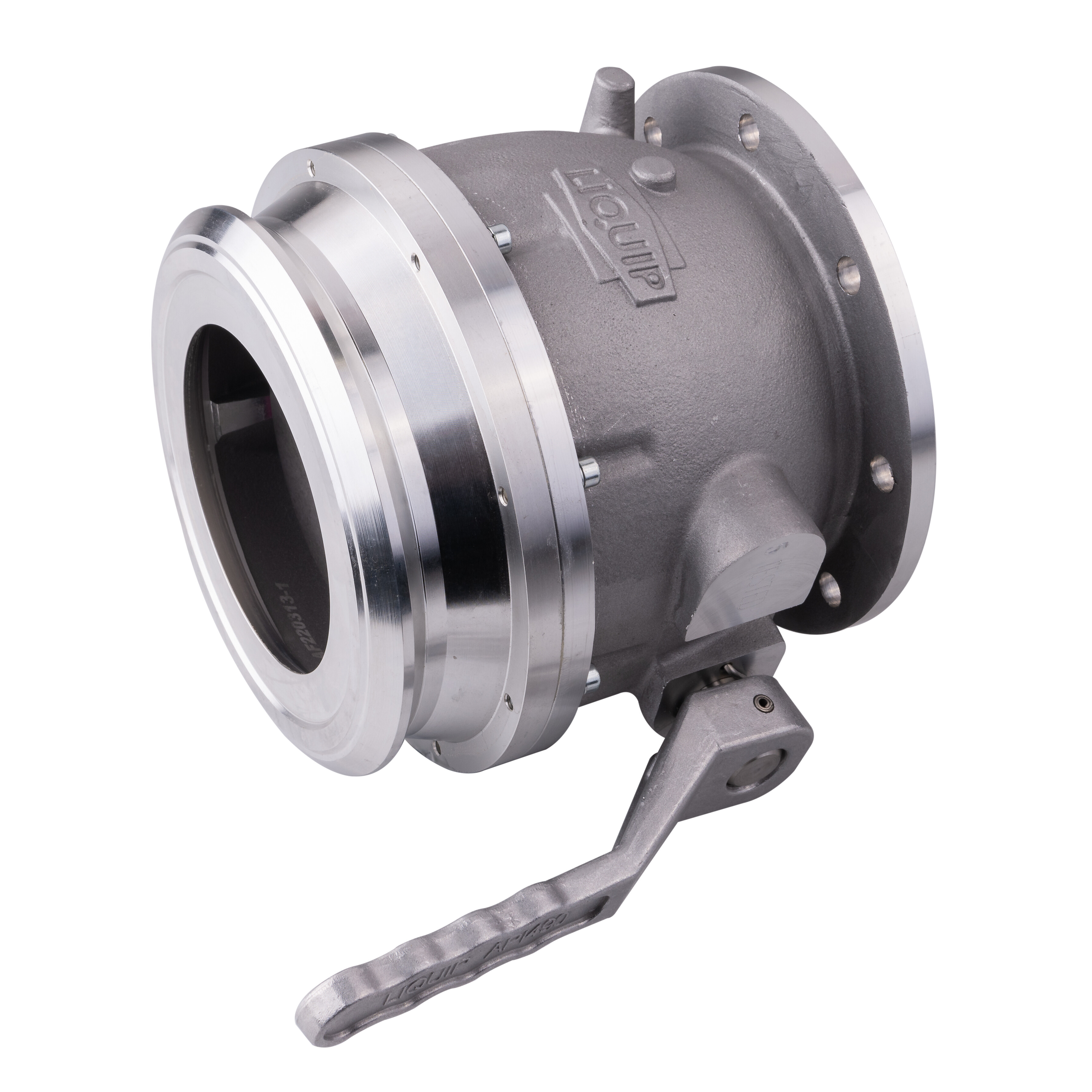

    API491 API adaptor, Handle moves UP, Viton B70 seals, No sight glass or drain

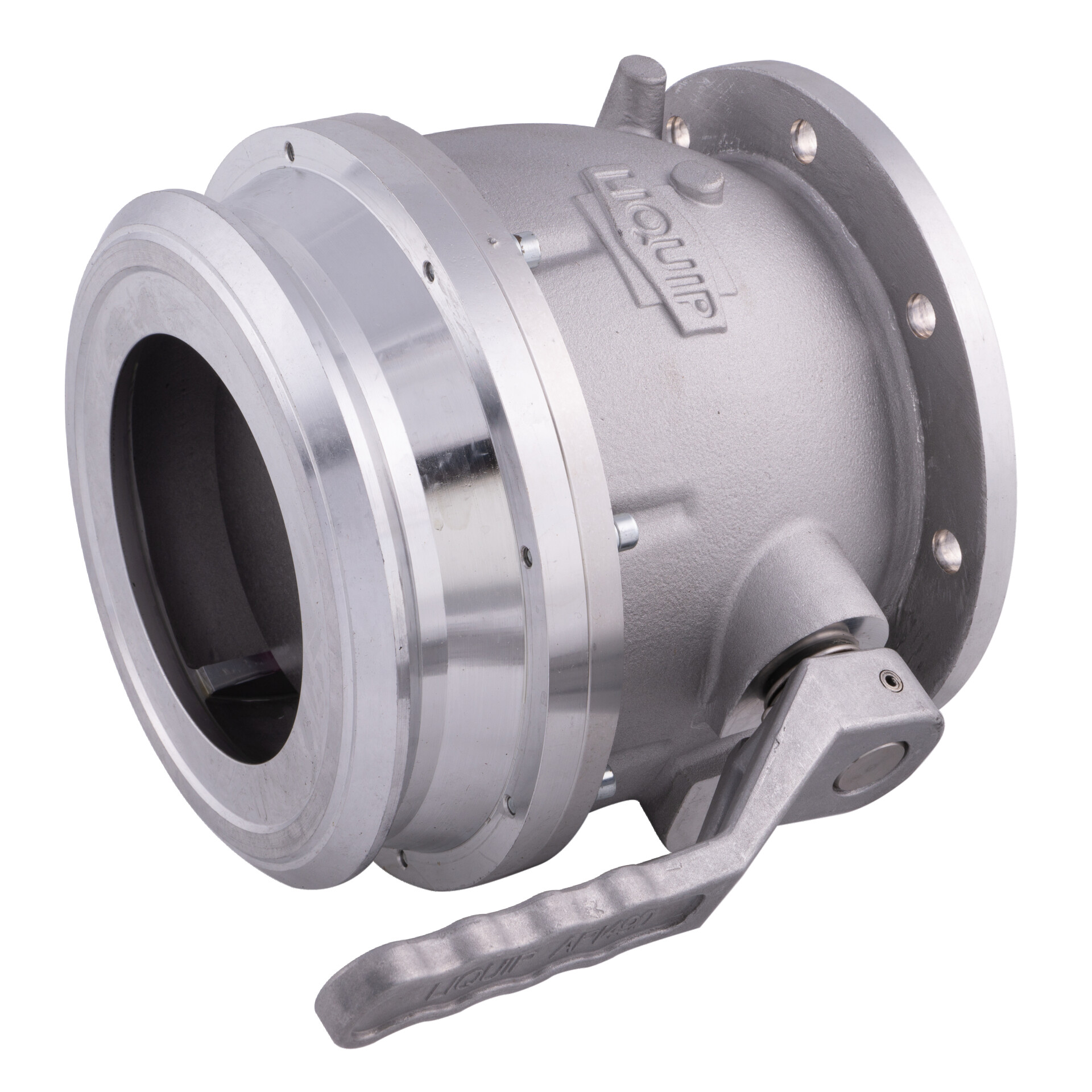

    API491D API adaptor, Handle moves DOWN, Viton B70 seals, No sight glass or drain.

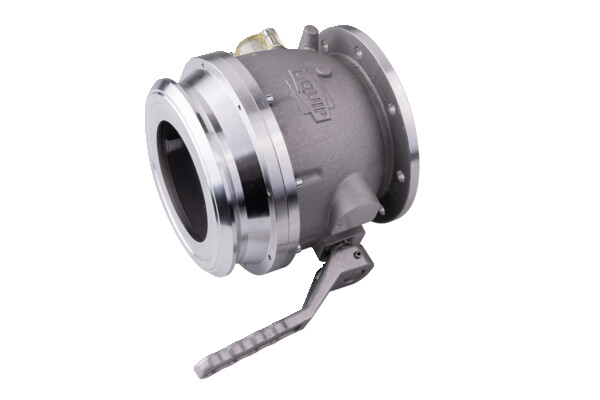

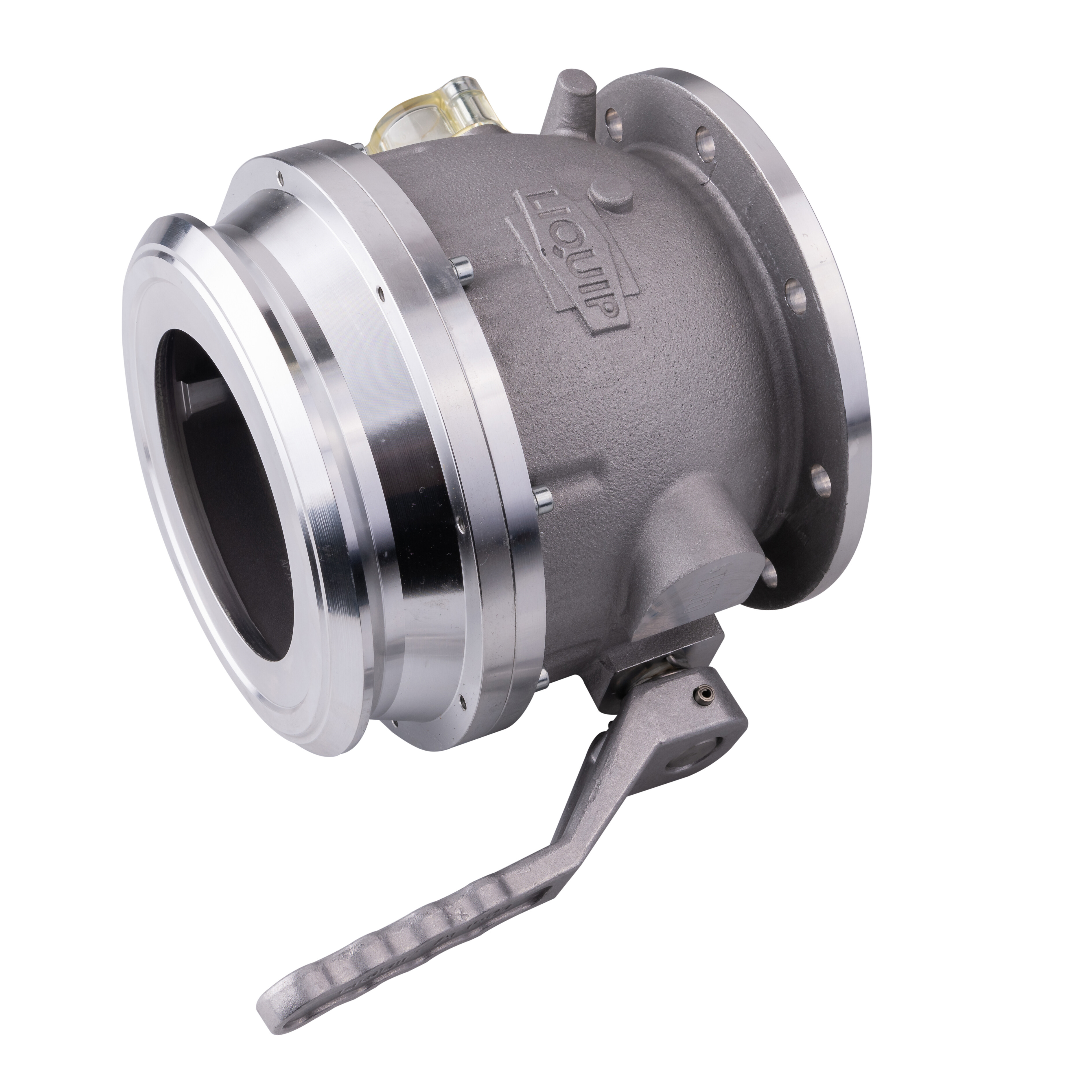

    API496 API adaptor, Handle move UP, Viton B70 seals, Complete with sight glass & drain.

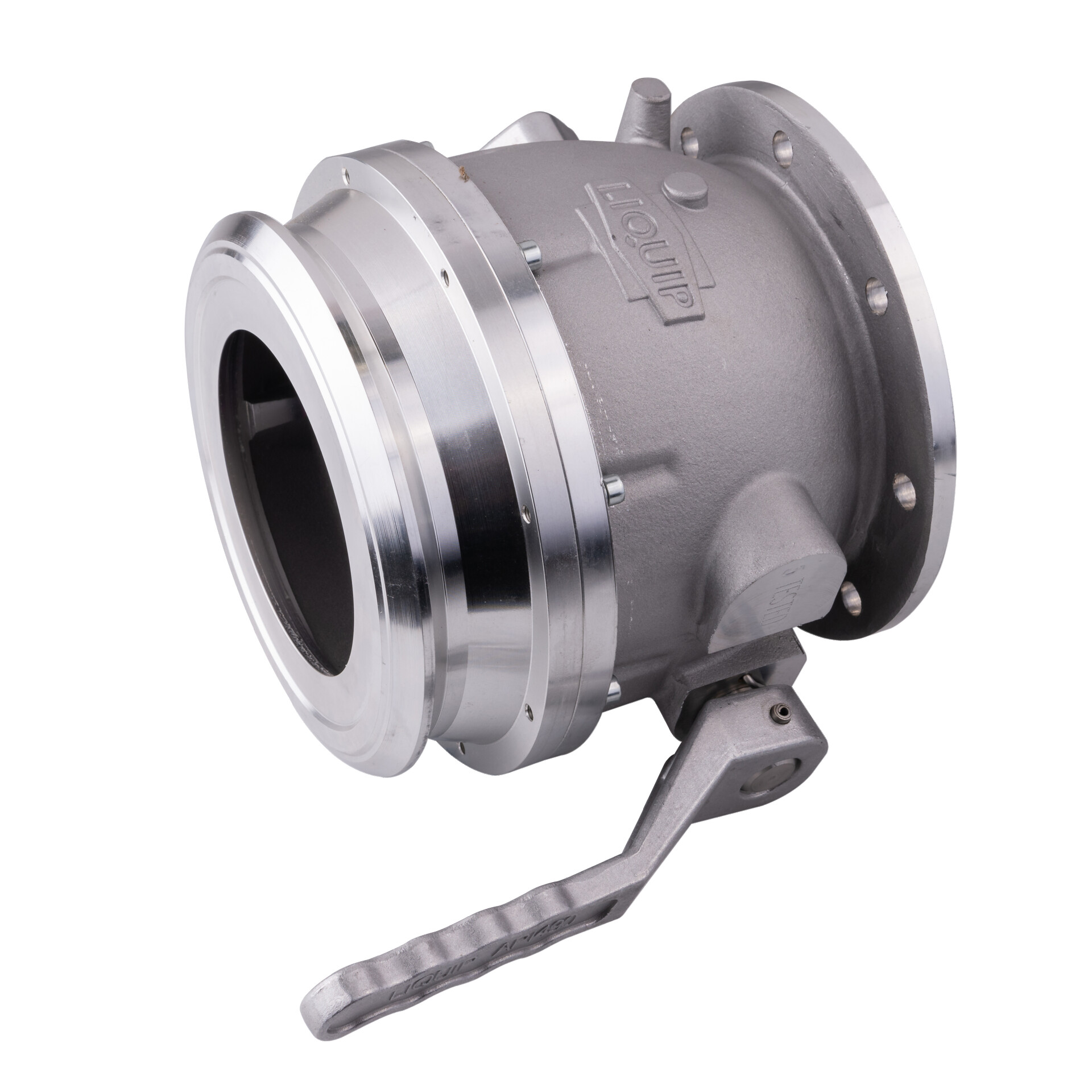

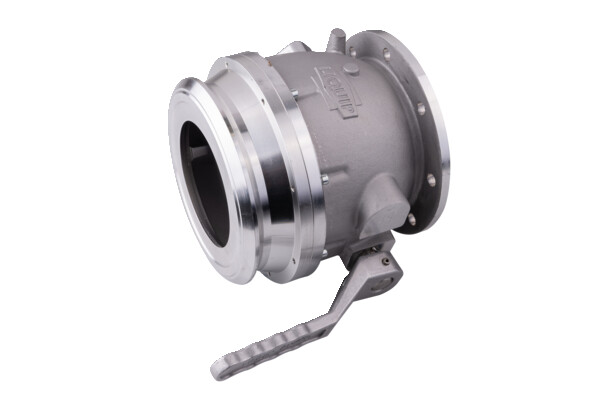

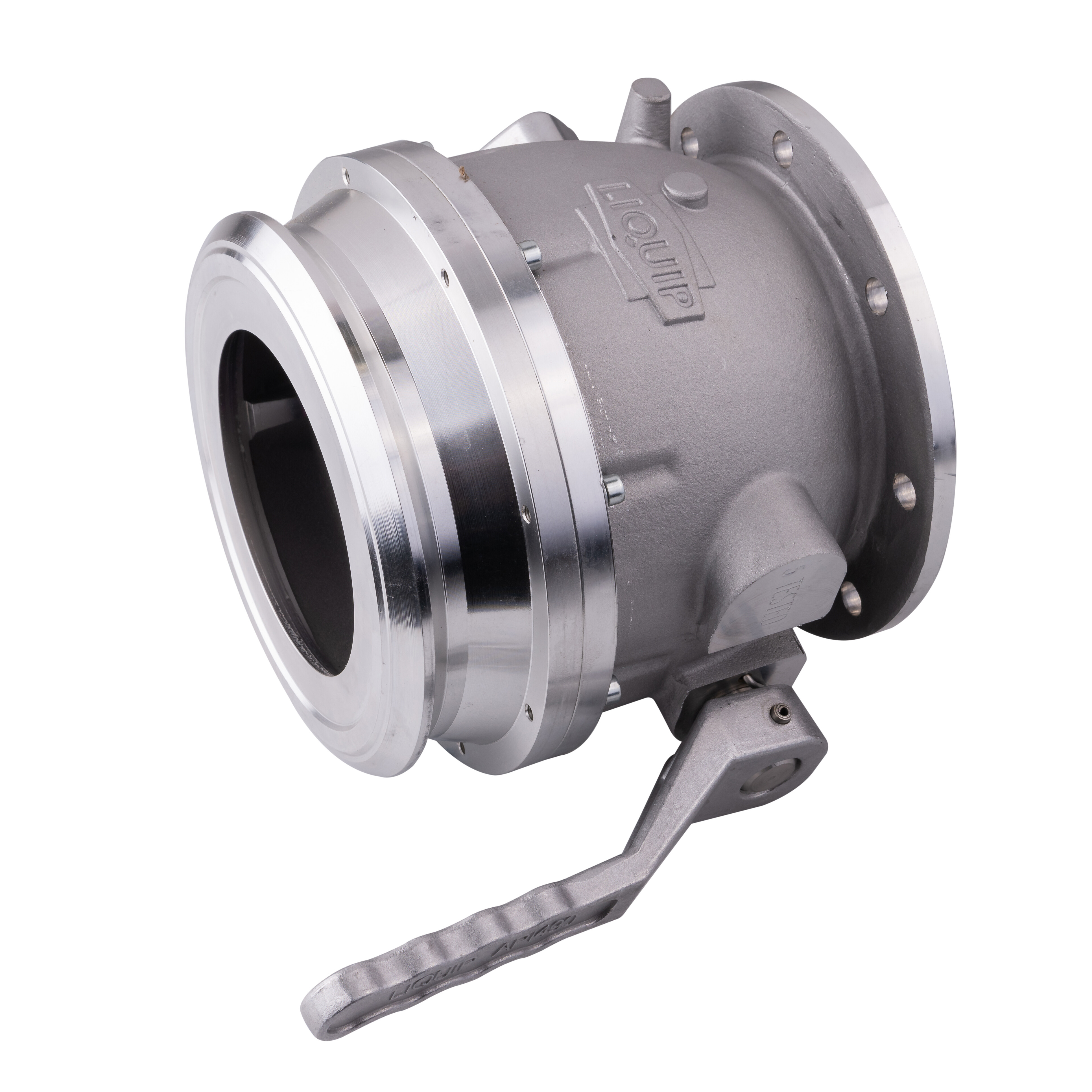

    API496B API adaptor, Handle move UP, Viton B70 seals,  Complete with blank plate & drain.

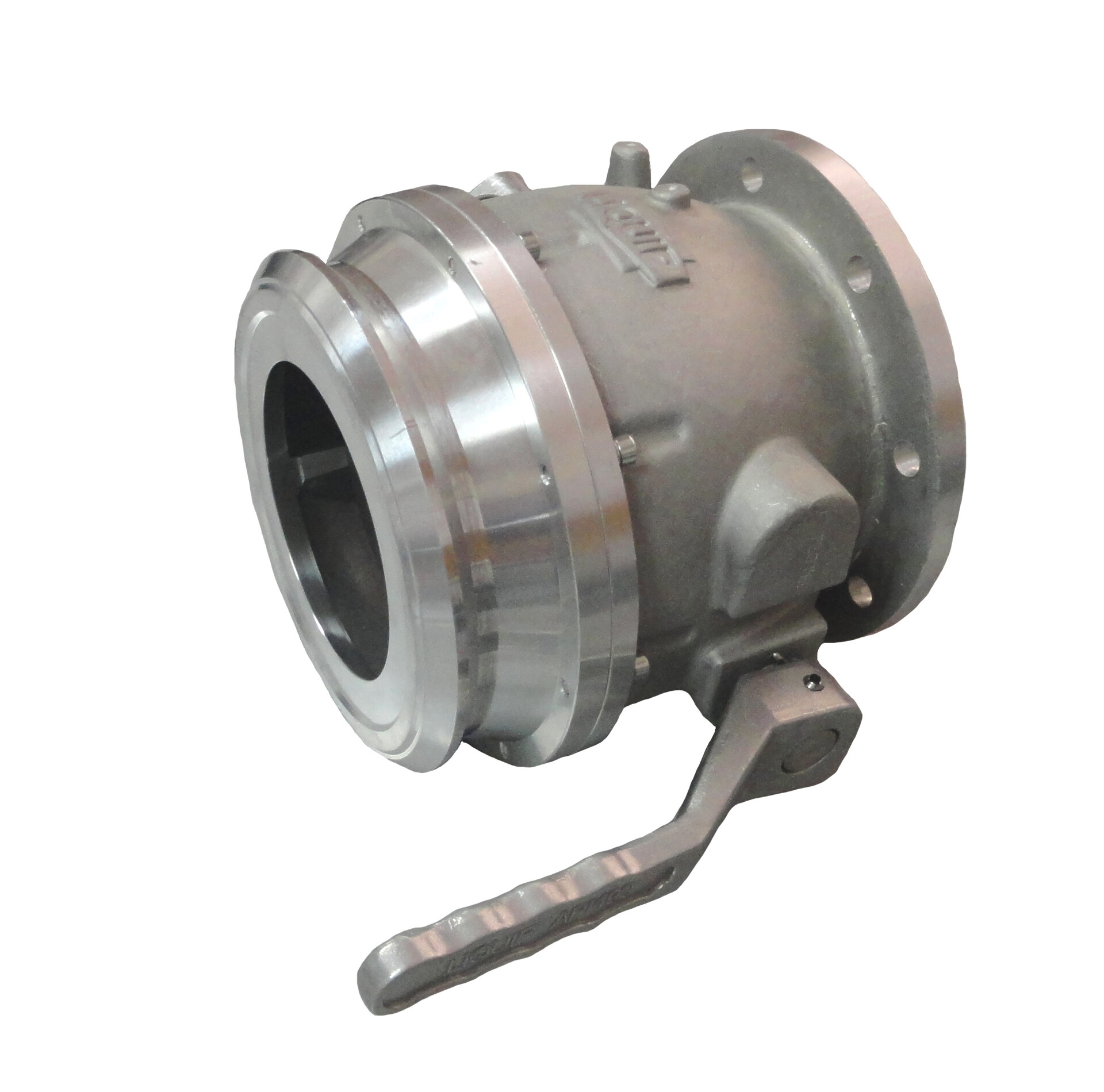

    API496C Chemical Spec API Adaptor, Handle moves UP, complete with Aluminium/Stainless Steel components, FFKM seals, sight glass, handle moves down.

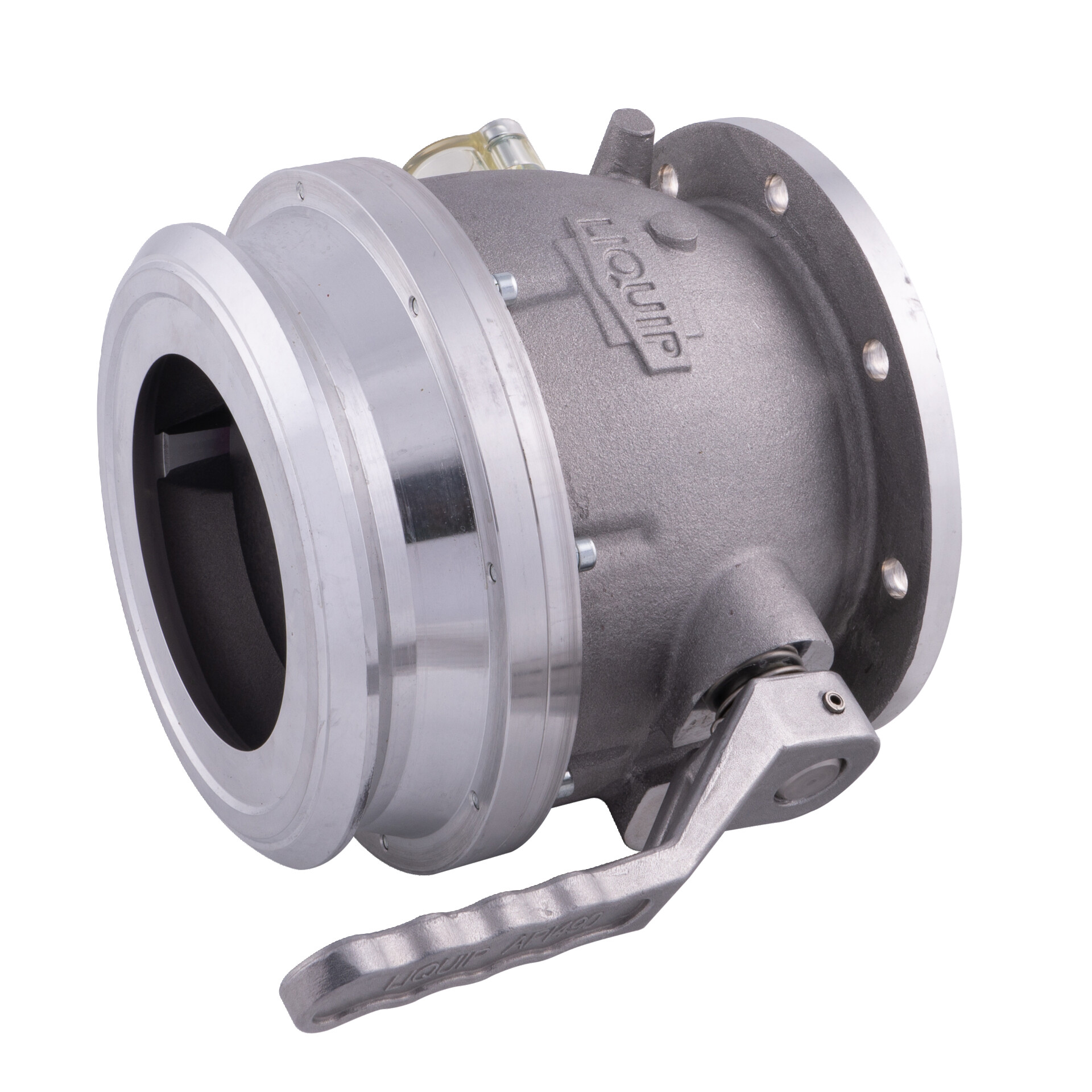

    API496D API Adaptor, Handle moves DOWN, Viton B70 seals, Complete with sight glass & drain.
    API496DG Avgas Selective API Adaptor, Handle moves DOWN, Viton B70 seals, Complete with sight glass & drain.
    API496DJ Jet Selective API adaptor, Handle moves DOWN, Viton B70 seals, Complete with sight glass & drain.
    API496DVG API Adaptor, Handle moves DOWN, Viton GFLT seals, Complete with sight glass & drain.

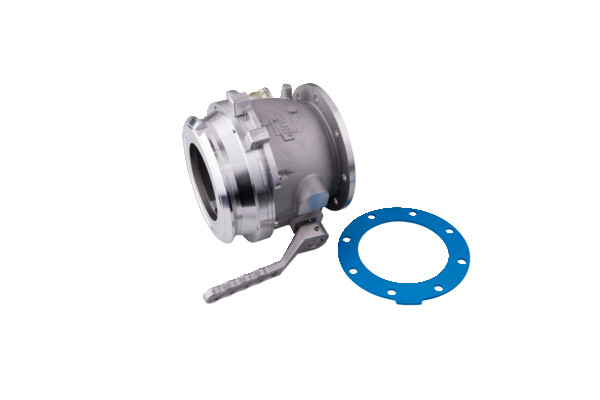

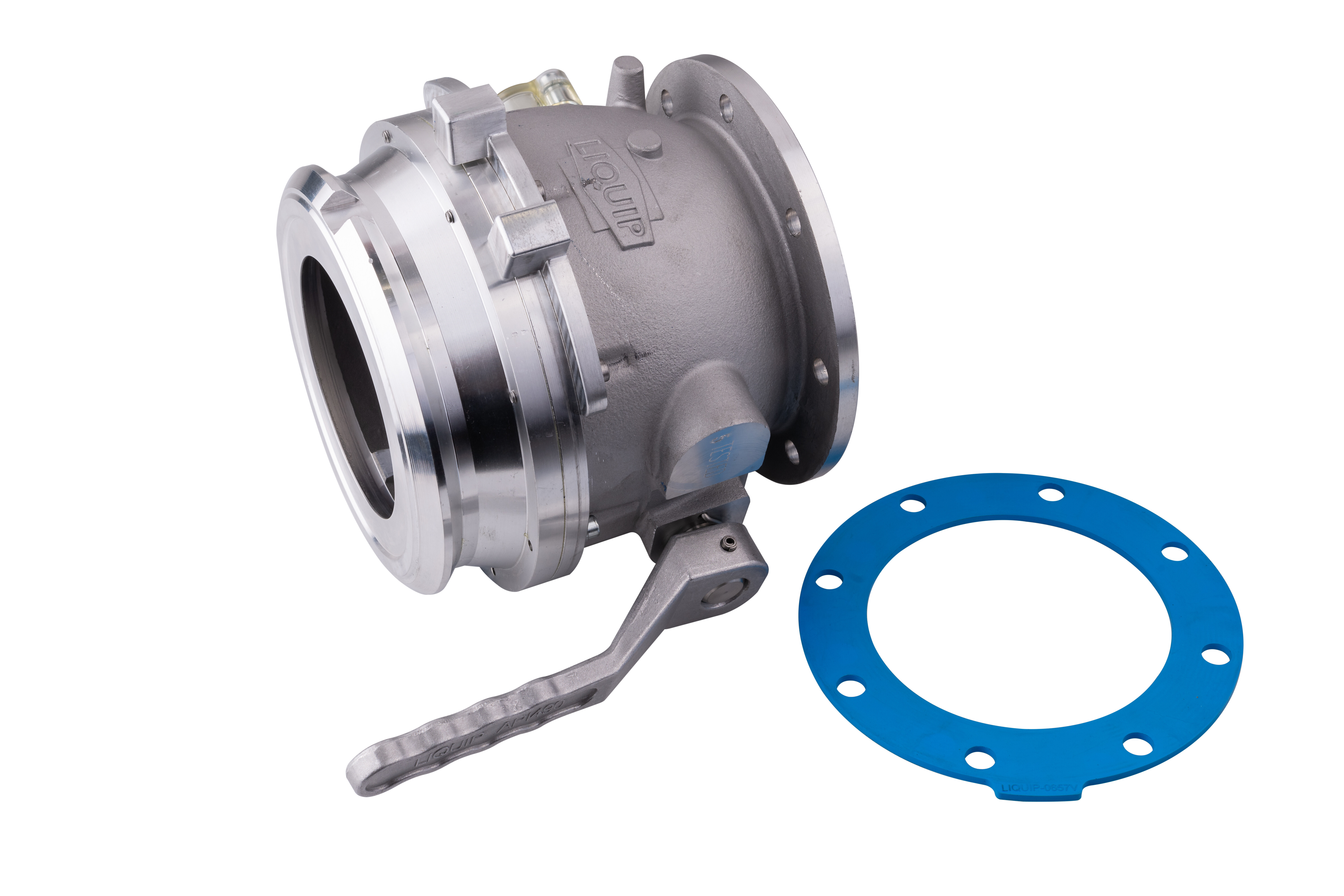

    API496G Avgas Selective API Adaptor, Handle move UP, Viton B70 seals, Complete with sight glass & drain.

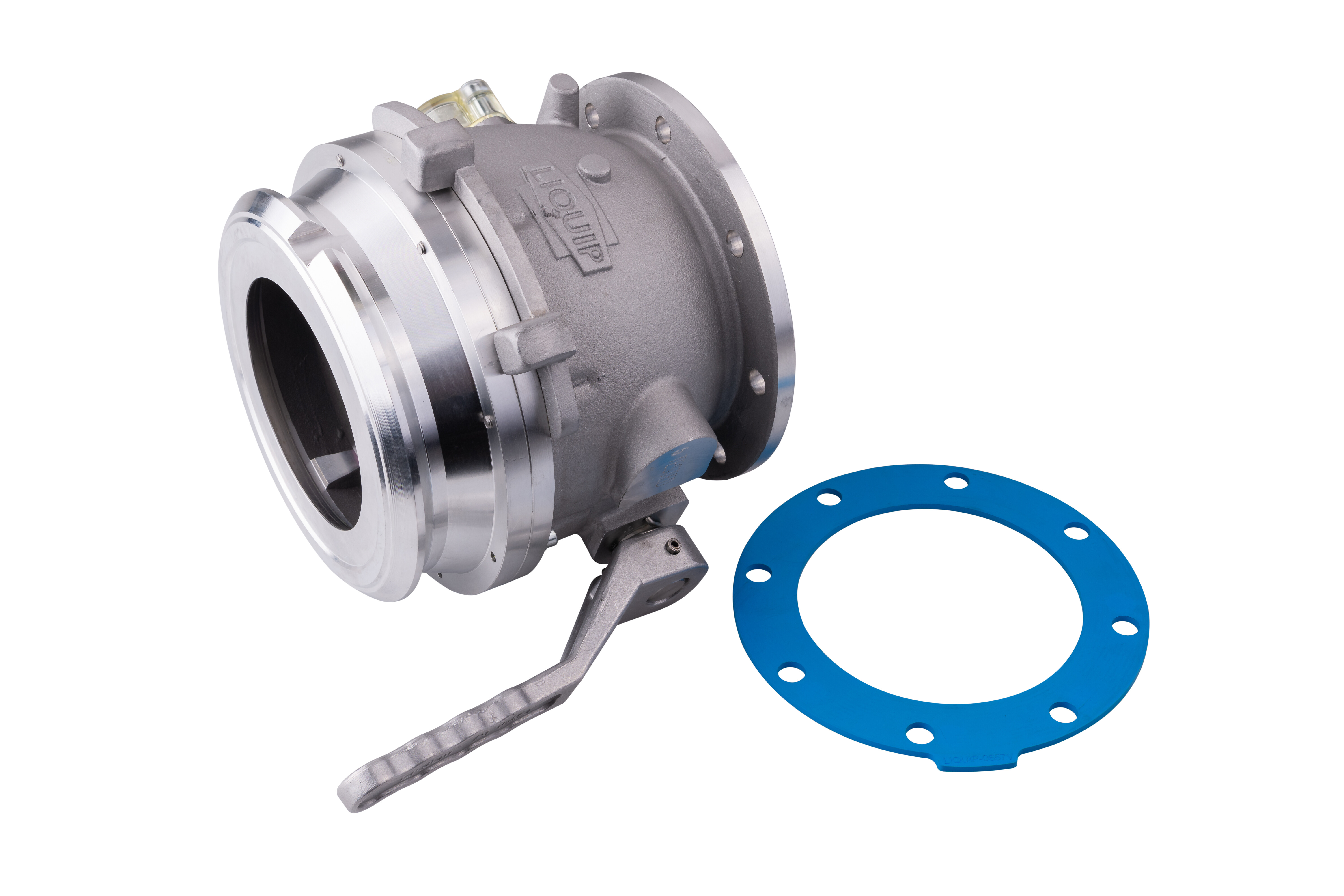

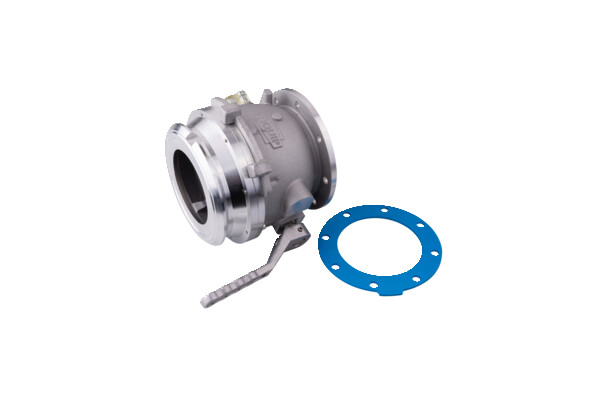

    API496J Jet Selective API Adaptor, Handle move UP, Viton B70 seals, Complete with sight glass & drain.
    API ADAPTORS SUPPLIED WITH 4" TTMA GASKET
    API491DZ API491D supplied with 4" TTMA Cork gasket.
    API491VZ API491 supplied with 4" TTMA Viton gasket.
    API491Z API491 supplied with 4" TTMA Cork gasket.
    API496BVZ API496B supplied with 4" TTMA Viton gasket.
    API496Z API496 supplied with 4" TTMA Viton gasket.
