SLV5 Cable Operated Series



Liquip offers a range of cable operated and manually operated. Emergency valves are operated from the tank top or bottom of the tank and include the latest technical advancements in their designs to ensure high flow rates and safe loading and unloading is achieved.

The Liquip bottom valve leads the industry with its low profile, low splash and vortex free design enabling faster tanker unloading than traditional mushroom poppet valves.

Used globally by road tankers that carry fuels, the Liquip SLV5 series has become a benchmark for the industry. Easy to maintain because of its simplicity and low profile, excellent for both loading and discharge, this valve also reduces static created during flow by reducing splash and vortex.

All Liquip foot valves have a specially designed hinged poppet that provides a reduction in static electricity for fast and safe operation at high flow rates.

The valve is operated with a cable, which lifts the hinged poppet (which also acts as a splash deflector).

Features & Benefits
  • Incorporates the latest technical advancements to ensure fast and safe loading and discharge of road tankers.
  • A unique hinged poppet design has a concave design which operates as a splash deflector, eliminating vortexing and reducing splash, surge and static build up during loading and unloading.
  • The valve is installed in the compartment floor and controls the flow of product from each compartment.
  • Incorporates a shear groove that is designed to retain the compartment contents in the event of accidental damage to the outlet piping or API adaptors.
  • Minimal pressure drop across the system.
  • Can be operated by cable and compartment operators from the ground or top of the tanker.
  • Manual operator can easily be replaced by a Air Operator Assembly (ARO100) for pneumatic operation.
  • Faster flow rates and a reduction in static electricity for improved and safer operation.
  • Hinged poppet design gives minimum height, so valve requires very little clearance to drop out for servicing.
  • Specially bonded lip seal design for superior sealing and extended life.

Recommended products for replacement

    Technical Information

    Periodic Service
    No routine maintenance required.  Check sealing of valve as required by authorities.

    Pressure rating
    Nominal Ø100mm flow area except poppet is Ø125 bore for minimum pressure drop. Needs a minimum of 350kPa of air pressure.

    Mounting
    Bolted to sump or tank flange at the bottom of tank 8 holes Ø9.5 on a 210 PCD.

    NOTE: If valve is to be used in Australia the following gaskets must be used to comply with SLP (Safe Load Practice) Pass-2-Load: (1 x 0200V; 1 x 0272V and 2 x 0273V).

    Weight
    2.9kg.

    Materials
    Aluminium body.  Stainless steel main spindle/springs. Bonded Viton main seal.

    Conversion to pneumatic operation
    1. Drain compartment and pipeline outlet dry
    2. Disconnect operating cable and remove bracket-lever-plunger subassembly.
    3. Fit pneumatic actuator ARO100 using a new gasket (0273V)
    4. Fit 1/8” BSP hose connectors into actuator port and connect to air supply per standard procedure

    Ordering Information

    SLV5CO: Cable Operated Internal Valve with Bonded Viton A seal.

    SLV5M: Cable Operated Internal Valve with Bonded Viton A seal (top operated only).

    Associated Equipment

    CL402RG: Manual top operator (Aluminium handle / body, Viton A o-ring and Z/P steel internals).

    ACL405RGAT: Air operated camlift (Aluminium handle and body, Teflon seals & stainless steel fasteners).

    LW410: Stainless Steel Lifting Wire Kit.

    SLV5-13A:  Aluminium SLV5 Tank Flange c/w metric studs & nuts.

    SLV5-13M:  Mild Steel SLV5 Tank Flange c/w metric studs & nuts.

    SLV5-47: 4" Mild Steel Adaptor Outlet to suit 4" Steel Tube.

    SLV5-110: Aluminium Adaptor Outlet to suit 100mm tube.

    SLV5-114: Aluminium Adaptor Outlet to suit 4" pipe.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart

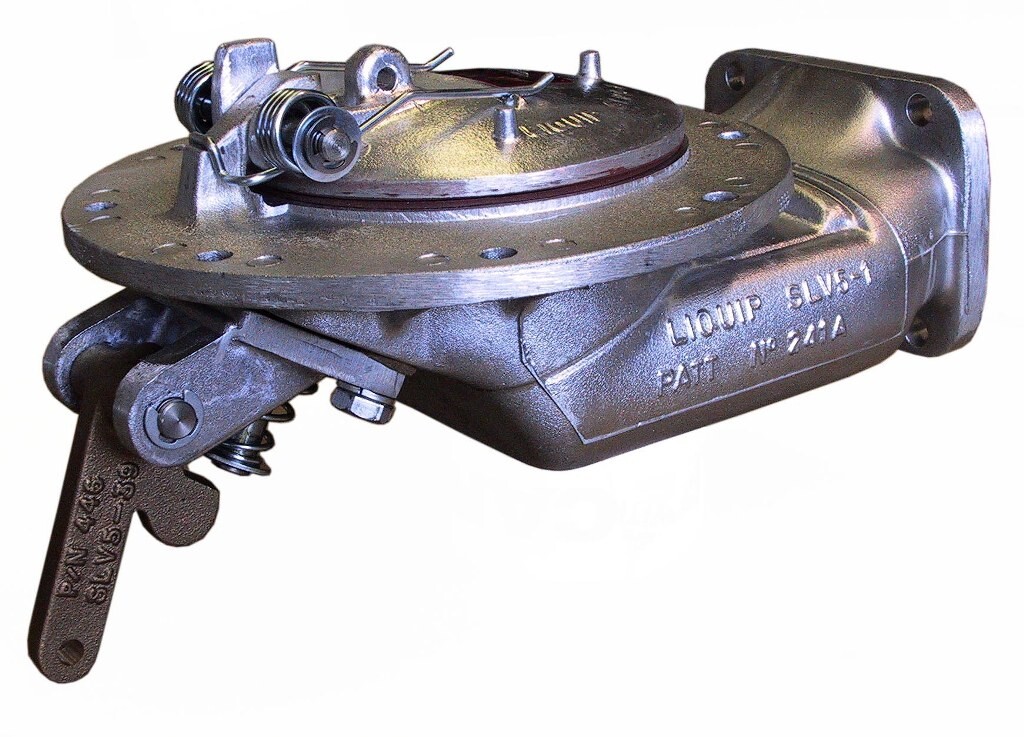

    SLV5CO Cable Operated Internal Valve with Bonded Viton A seal.

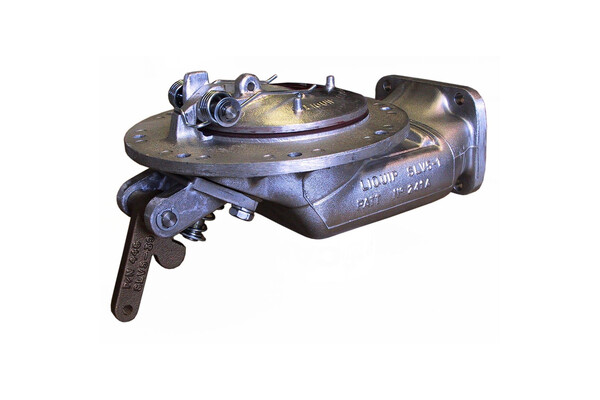

    SLV5M Cable Operated Internal Valve with Bonded Viton A seal (top operated only).
