Static Earthing Reels - Large Drum



Static reels are used to bond two pieces of equipment to allow static charge to be safely equalised. Static reels are typically used when product is transferred from one tank to another e.g. when pumping between a tanker and storage tank or when fueling aircraft.

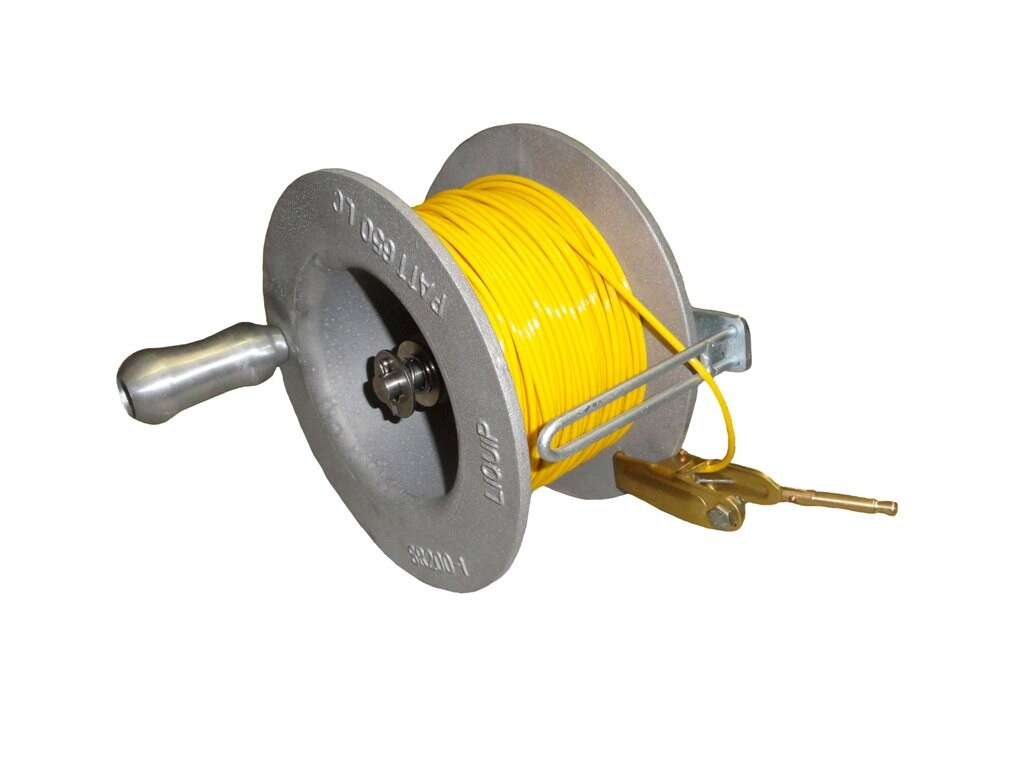

Liquip offers the SR202, which has been developed to provide users with a safe and reliable static earthing reel.

The SR202 has a large drum so that it can be wound quickly and is fitted with a cable guide as standard.

Features & Benefits
  • Large diameter drum means less turns are required to wind cable back onto reel.
  • Free spinning handle and is comfortable to use.
  • Stainless steel components are used to ensure corrosion does not break continuity.
  • Reliable continuity is ensured through the use of a carbon brush on a stainless steel shaft.

Recommended products for replacement

    Technical Information

    Resistance
    Maximum end-to-end resistance 2 ohms.

    Wire/cable capacity
    Can hold up to a max of 76m standard PVC coated wire (4mm diameter).

    Materials.
    -Carbon brush runs in sealed section to eliminate dirt and corrosion.
    -
    Shaft has grease reservoir for all-of-life lubrication.

    Ordering Information

    SR200: Large diameter static reel comes with cable guide, manual operation (cable and static clamp supplied separately).

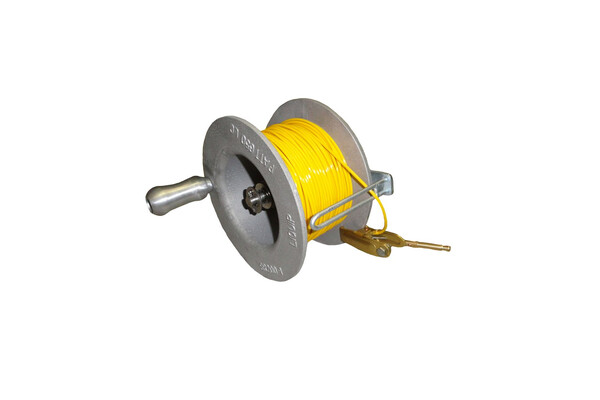

    SR202: Large diameter static reel comes with 30M of yellow cable and static clamp.
