VCM450: Vapour adaptor 100mm (4") flow through.

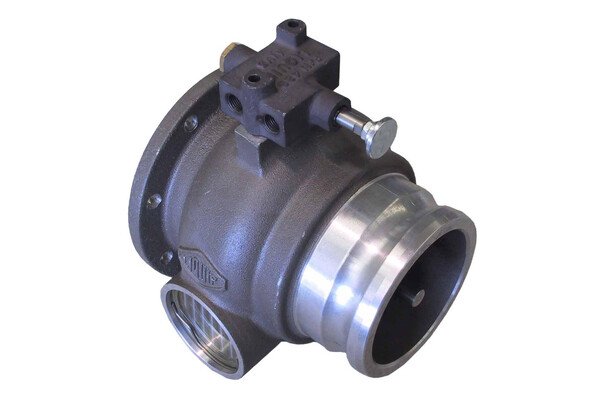

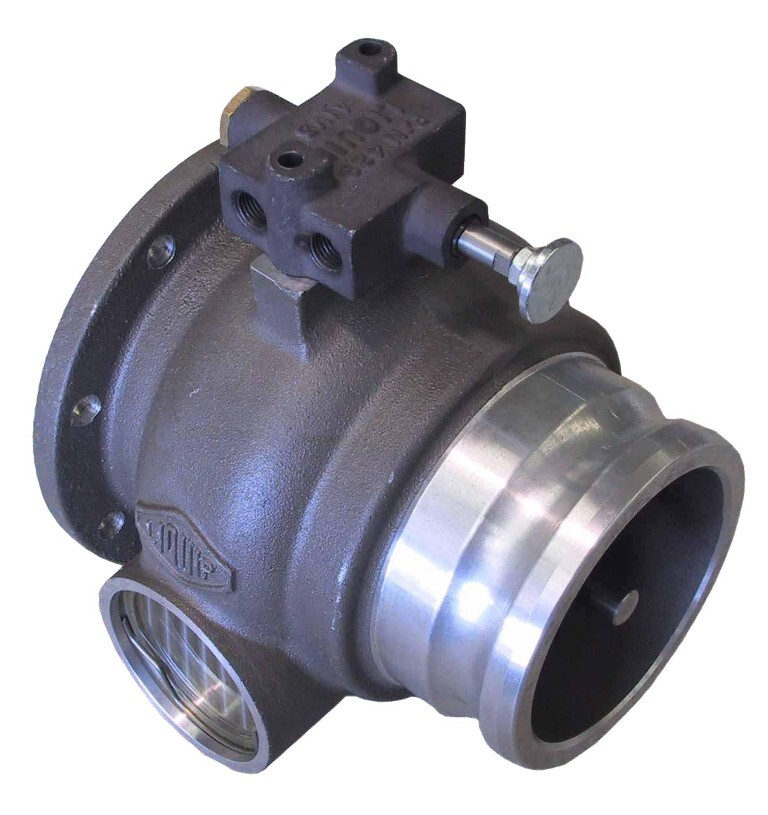

VCM3P: Vapour adaptor with proximity switch holder.

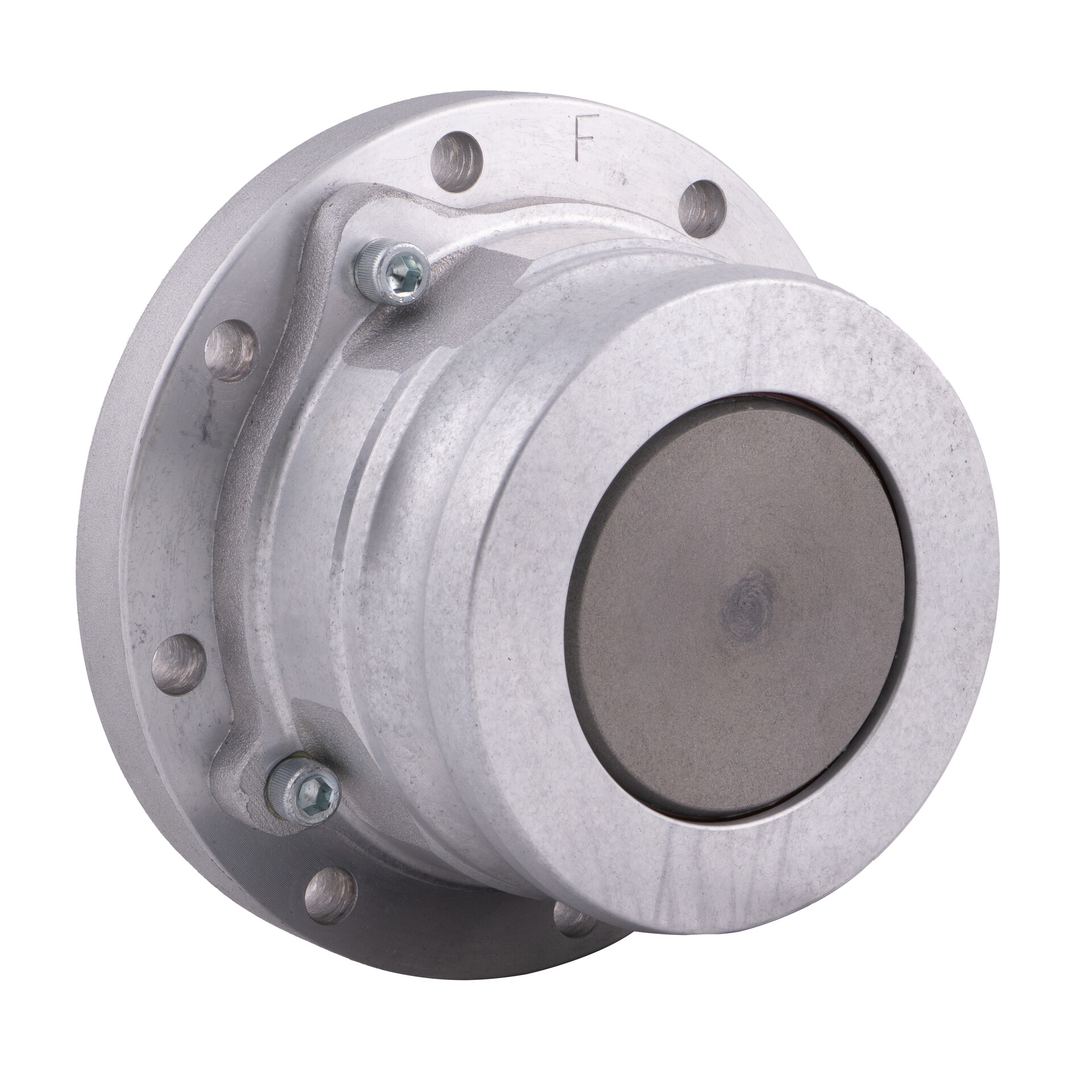

VCM3-F: Al Vapour adaptor 100mm Male to 100mm TTMA flange.
Liquip offers a range of vapour recovery adaptors which provide users with a safe and efficient method for handling and transferring of product vapour.
The VCM450 provides high flow rates into multiple compartments with minimal pressure drop across the adaptor and can be supplied with a proximity switch holder.
When connected to a female vapour coupler the adaptor poppet is pushed inwards to allow vapour flow and the coupler also pushes the striker plate of the adaptor forward to provide an electrical signal that the vapour recovery system is connected.
The VCM3 series is a poppet sealed cam and groove connection for truck vapour return lines.
The VCM3 series has an aluminium body with a 100mm (4") TTMA flange mounting. The seals are Viton and the shaft runs in a delrin bush.
A standard camlock will not fit into this adaptor, only an approved vapour coupler will fit.
NOTE: VCM3 series for use in Australia and NZ only.
