Dip Tube Guides

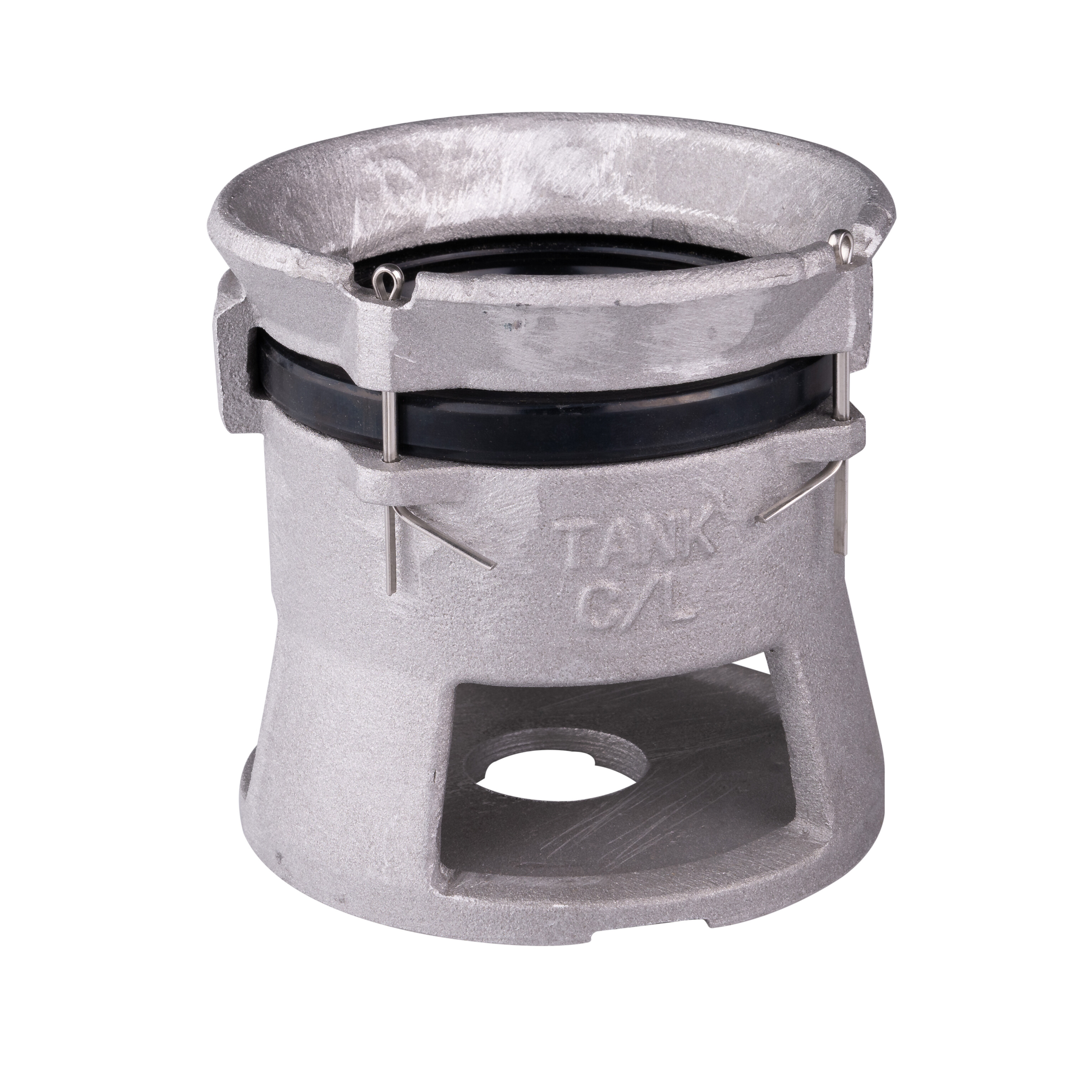

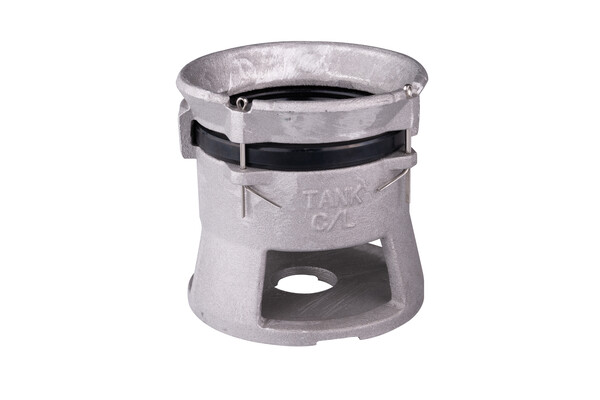

Liquip's Dip Tube Guides are installed in the base of the tanker and guide the Dip Tube to ensure it is kept in the perpendicular plane while the tanker truck is in motion.

Dip Tube Guides are welded to the floor of each compartment directly below the dip adaptors located on the tank top.

Ordering Information

DTG3-R: Aluminium Dip Tube Guide with integral striker pad and elastomer bearing.

DTG3-R-AT: Aluminium Dip Tube Guide with integral striker pad and Teflon bearing.

DTG3-M: Mild Steel Dip Tube Guide, no striker pad and plain bore.

Associated Equipment

DTS3-2200: Dip Tube 80mm x 2200mm.
