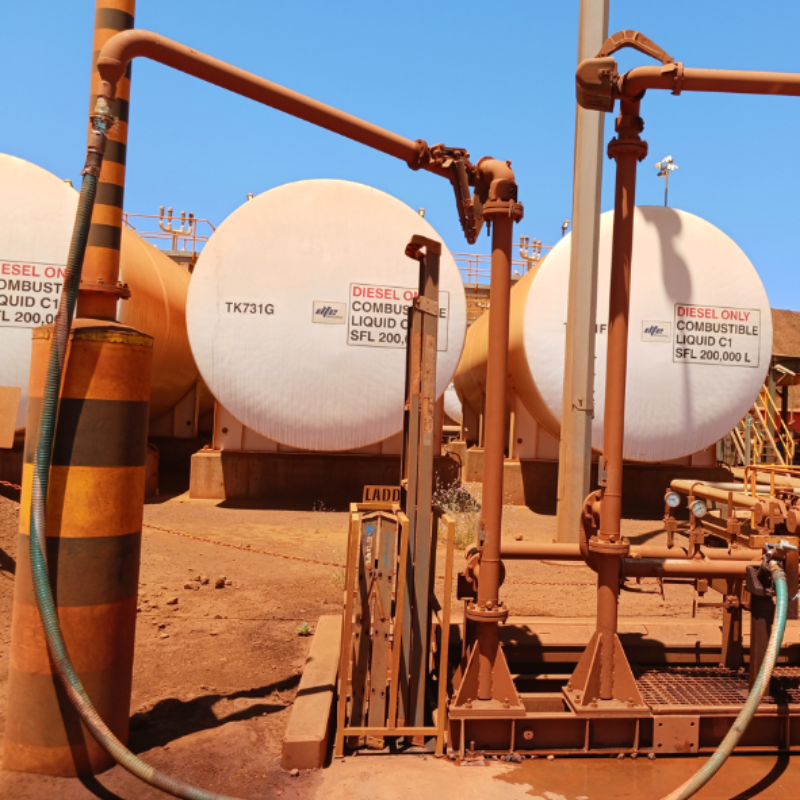

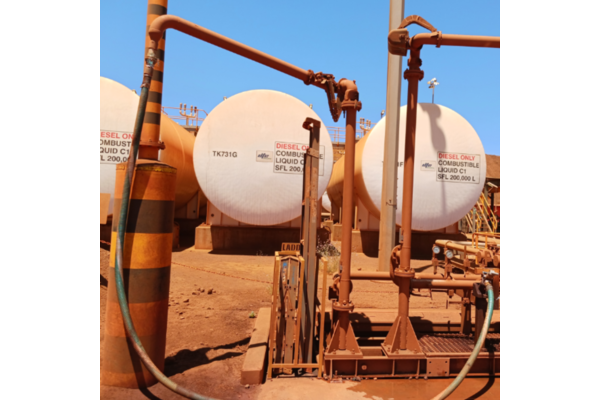

Mine Site/Rail Loading Arm



Liquip provides bottom loading mine site loading arm solutions for infrastructure projects, service vehicle and rail refueling/loading.

Liquip's mine site/rail arms are the sweet spot between ruggedness, dependability, functionality and performance.

Liquip considers end users specifications, to enable fast, safe and efficient refueling.

Liquip's mine site/ rail loading arms can be tailored to suit a variety of applications.

Liquip's mine site/ rail loading arms can be tailored to suit a variety of applications. The two most common options are:

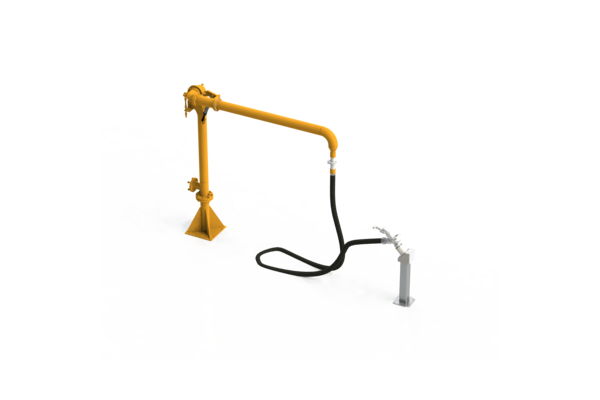

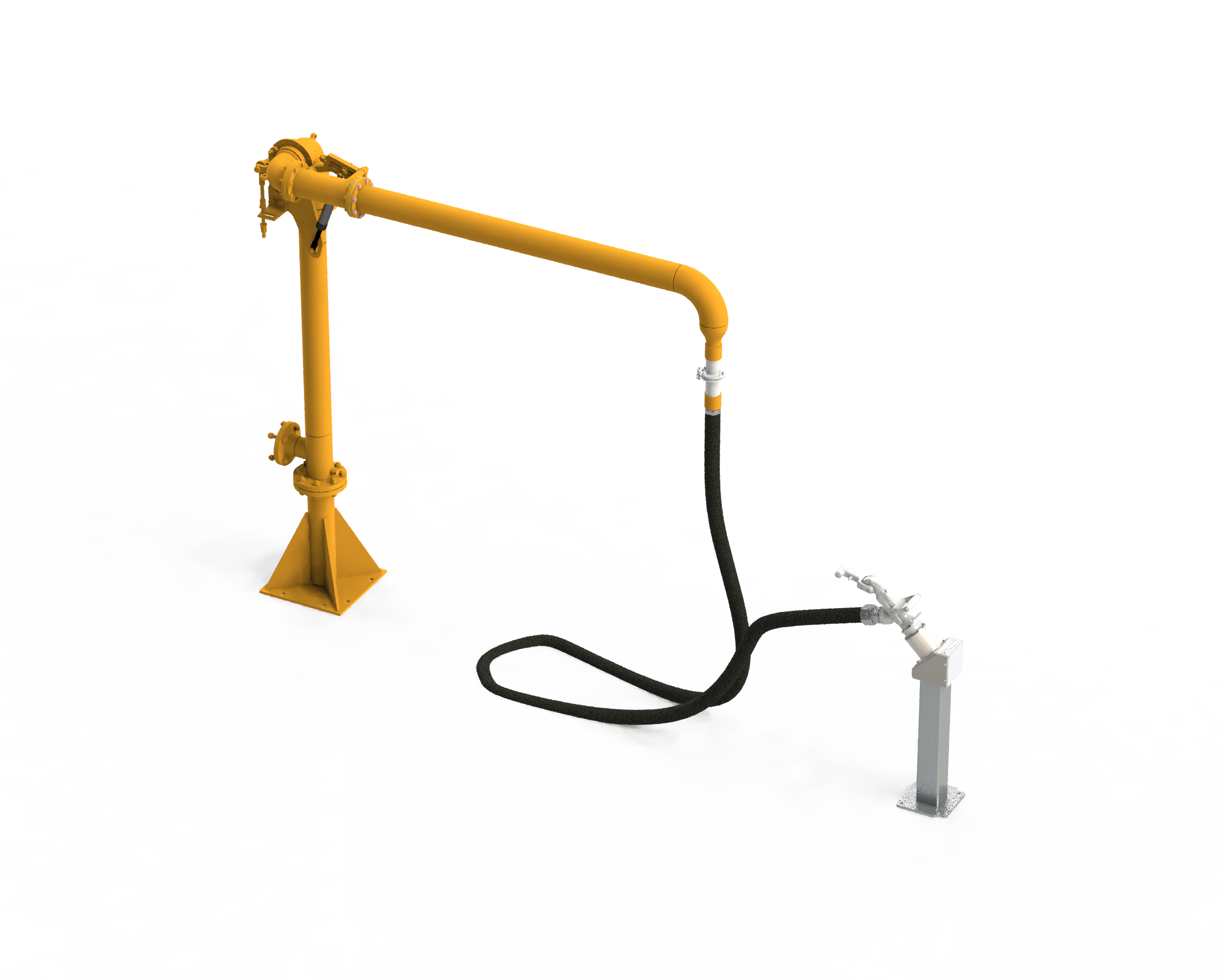

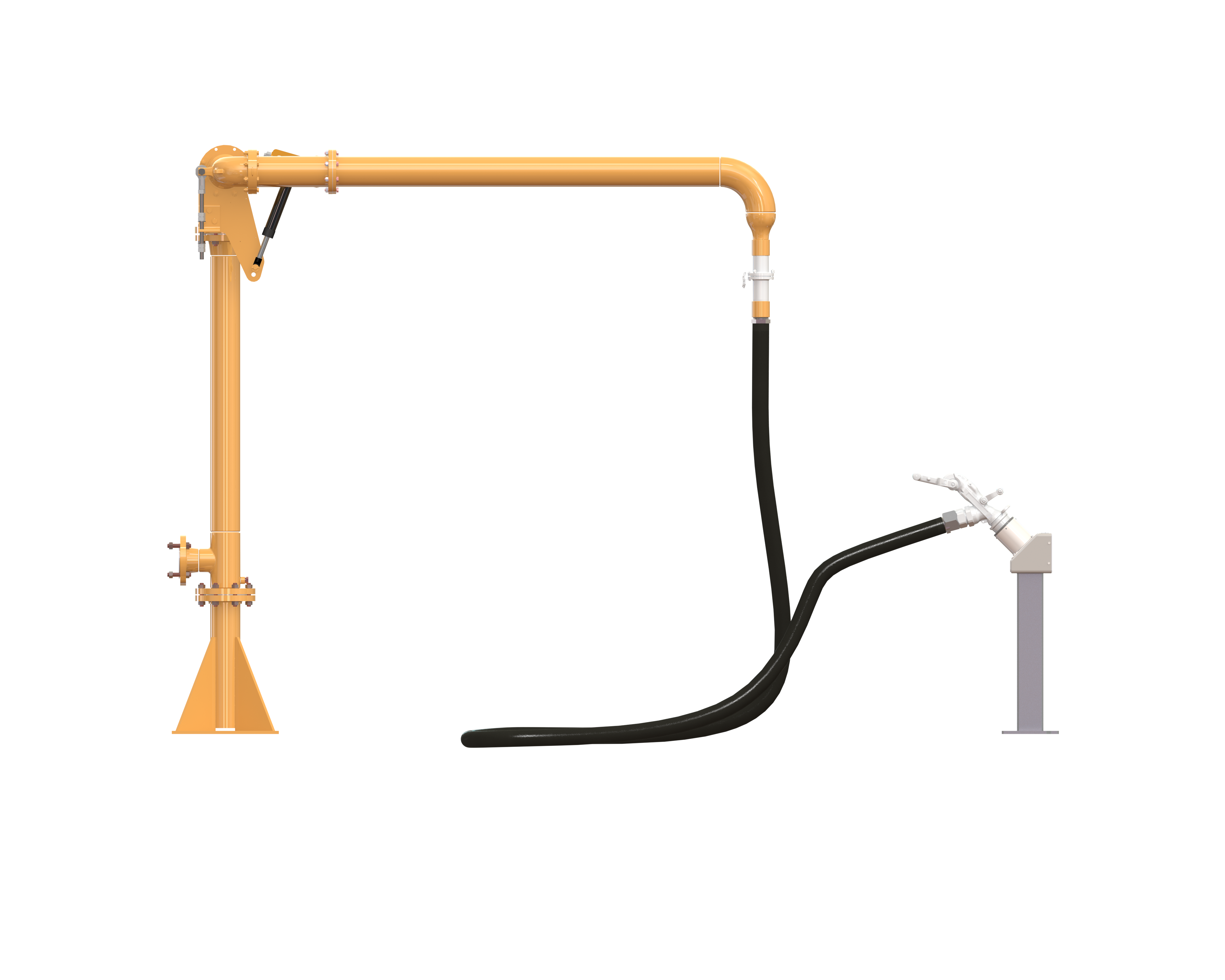

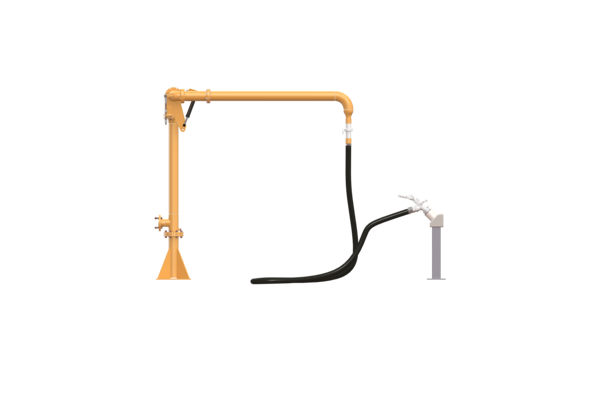

  • Overhead style arm with riser pipe, LBM800 balance mechanism, hose and nozzle.
  • Overhead style arm with riser pipe, heavy duty base swivel, hose and nozzle.





Recommended products for replacement

Categories
Features & Benefits
  • Quick refuelling at flow rates up to 1,000 LPM.
  • Reduce slip & trip hazards by removing hoses from the ground whilst also eliminating manual handling of heavy hoses.
  • Easily manoeuvre the loading arm to facilitate fast and efficient connections.
  • Designed to decrease wear and tear on hoses meaning less maintenance increases service life and ultimately reduces total cost of ownership.
  • Can be shipped partially assembled for efficient and safe shipping whilst allowing for easy on site installation.
  • Heavy duty yet versatile design to suit a variety of applications including fixed refuelling bays and mobile service vehicles.
  • Painted to site specifications and suitable for extreme weather conditions.
  • Can be supplied complete with hose and refuelling nozzle.
  • Safety Breakaway can be integrated for a full drive-away protection system.

    Option with LBM800 Balance Mechanism.
  • Superior safety through the use of Liquip’s unique balance assembly swivel design.
  • Balance mechanism is greased for life.
  • Uses Liquip’s unique gas strut “Velvet Touch“ technology for smooth operation over entire stroke of the loading arm.

    Option with Heavy Duty Base Swivel.
  • Simplified design for cost effective applications where optimal performance and integrated features are not required.
Technical Information

Materials
Carbon steel / Aluminium / (Stainless Steel on request).

Design Pressure
1,000 kPa.

Test Pressure
1,500 kPa.

Flow Rates
Flow rates are up to 1,000 LPM.

Temperature limits
*-28°C to + 90°C (-18°F to + 200°F)

Range of motion
Horizontal 360°,
*Vertical +15° to -15°.

Typical Reach
2 metres (arm only).
Further reach available with hose.

End connections
Inlet  - 4” (DN100) ASME 150 RF.
Outlet Coupling  - High Flow Dry Break Refuelling Nozzle.

Counter balance type
*Single or Dual gas struts.

Primary seal materials
*Viton™ B70 or GFLT.
Others on request.

Dust seal material
*Buna Nitrile, or HAN.
(Others on request).

Gasket material
Klinger or Viton™ A.
(Others on request).

Safety Break-away
Optional Stainless steel emergency release breakaway valve to protect against product spillage in the event of drive-away.

Ordering Information

Loading arm survey forms are available for users to fill out . Survey forms detail all technical requirements for your loading arm needs.
These forms can be downloaded once you login to the liquip website.
Alternatively, you can contact liquip to receive a loading arm survey form and discuss any specific requirements you may have.

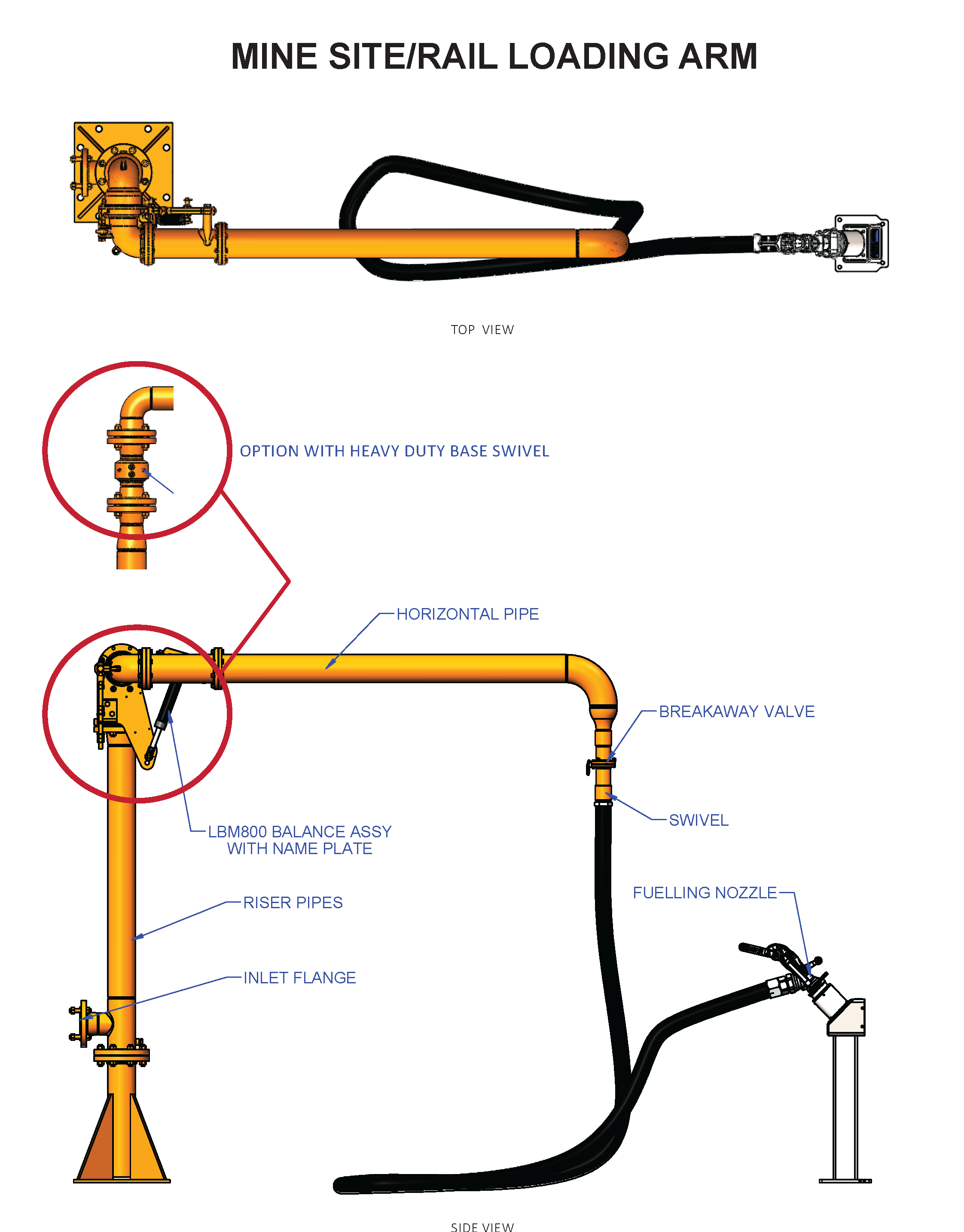

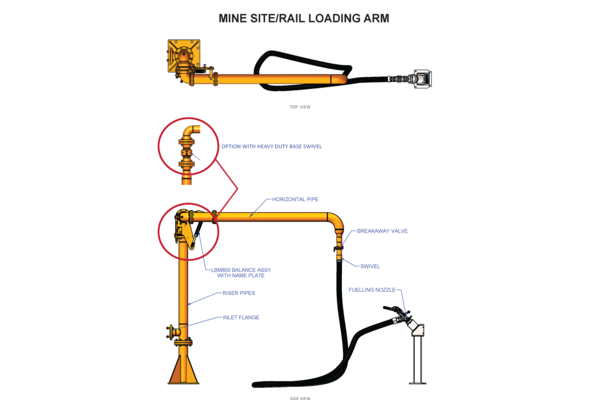

Associated Equipment

Mine Site/Rail  loading components

  • Inlet flange
  • Riser pipes
  • Breakaway Valve
  • Horizontal Pipe
  • Fuelling Nozzle

Options

  • LBM800 Balance Assembly.
  • Heavy Duty Base Swivel
