Long Reach Boom Style Top Loading Arms



Top loading provides an efficient and cost effective way to load in many situations and is still a prominent method of loading throughout many different countries.

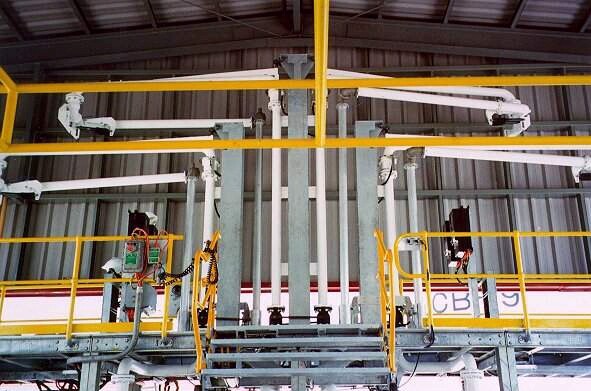

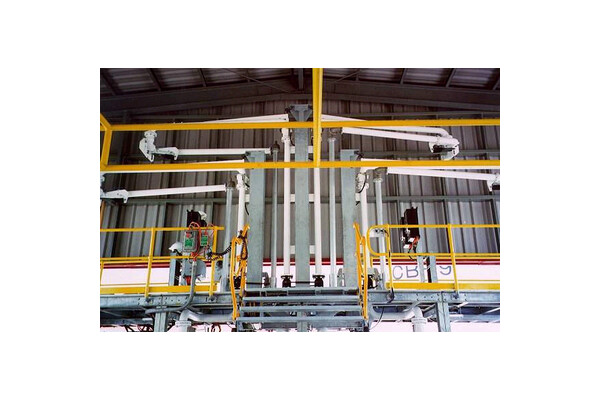

Liquip’s long reach boom style top loading arms are our most versatile top loading arms, commonly used in rail car and tanker applications. They provide an efficient and cost effective method to load all compartments of a typical road tanker without the need to reposition the tanker. They are suitable for variable reach applications and can easily load tanks on either side the gantry.

Liquip can supply vapour cones as an optional extra for hydrocarbons applications, allowing operators to recover vapour and limit environmental impacts.

Recommended products for replacement

Categories
Features & Benefits
  • Unique boom style design allows for loading both sides of the gantry.
  • Long reach top loading arms allow for full cross-over capability and a horizontal reach of up to 5,500mm.
  • Designed to provide long reach operation whilst being easy to operate/manoeuvre.
  • Heavy Duty durable design allows for a range of accessories to be included in designs if required eg. Loading valves, Vapour cones,
  • Overfill probe holders and rotation limiters.
  • Scissor back design means convenient and compact storage and no wasted space.
  • Each Boom style top loading arm is designed to maximise reach and weight capabilities.
  • Choice of flanged or welded construction.
  • Flow rates typically up to 1,500 LPM.
  • A special high load base swivel can be supplied as required for longer ‘wet’ arms.
  • Suitable for rail or tanker loading.
  • Uses Liquip’s unique gas strut “Velvet Touch“ technology.
  • Custom designs are available to suit individual loading applications and configurations.
Technical Information

Seals
Viton™ seals supplied as standard.

Configuration
Up to 4 arms per bay (5 or 6 arm bays are possible, but consult Liquip for details).

Flow Rates
Typical flow rates are up to 1,500 LPM.

Horizontal reach
Up to 5,500mm.

Materials
Boom style top loading arms are available in aluminium, mild steel and stainless steel.

Ordering Information

Loading arm survey forms are available for users to fill out.

Survey forms detail all technical requirements for your loading arm needs. These forms can be downloaded once you login to the liquip website. Click here to obtain a login.

Alternatively, you can contact Liquip to receive a loading arm survey form and discuss any specific requirements you may have.

Associated Equipment

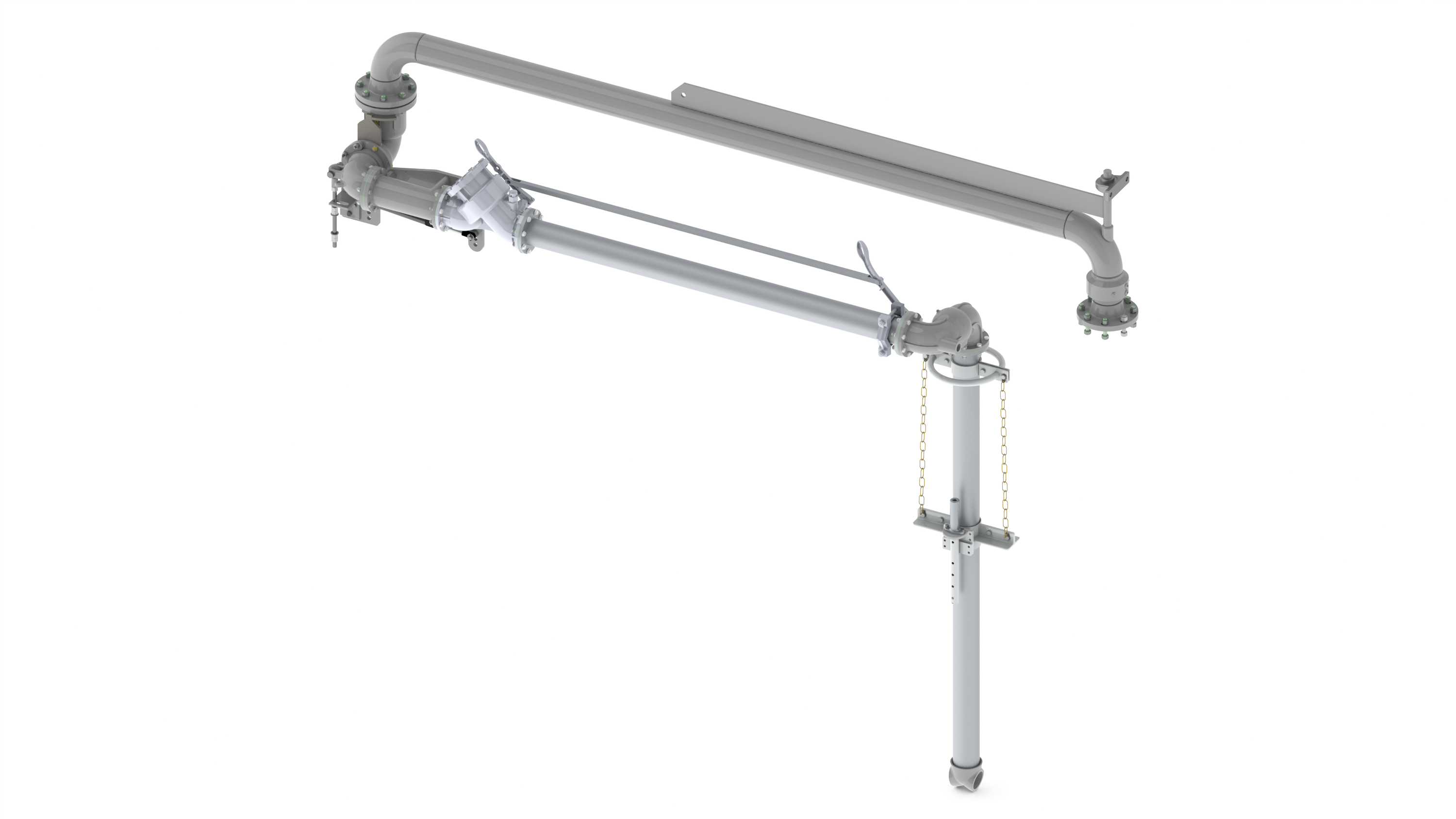

Boom style Long Reach loading components

  • Primary arm with base swivel.
  • Balance Assembly.
  • Gas Struts.
  • Secondary arm.
  • Intermediate Swivels.
  • Drop spear.

Options:

  • Loading valve with remote handle.
  • Position indicating brackets.
  • Rotation limiter.
  • Vapour cone.
  • Diffuser, Deflector and Strainer.
  • Pneumatic Counter Balance.
  • Spear mounted overfill protection sensor.
  • Up/down stops.
  • Butterfly Valves.
  • Sightglasses.
  • Spools.
  • Riser Pipes.
