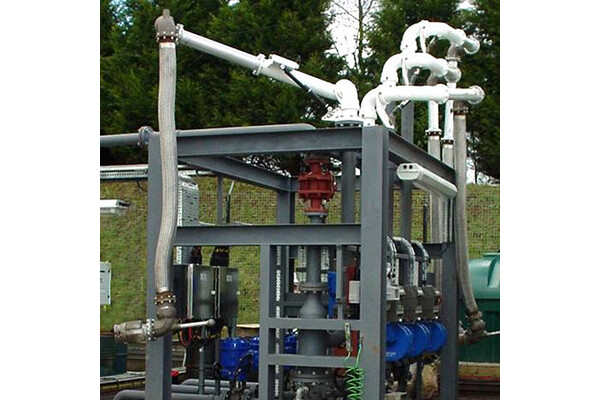

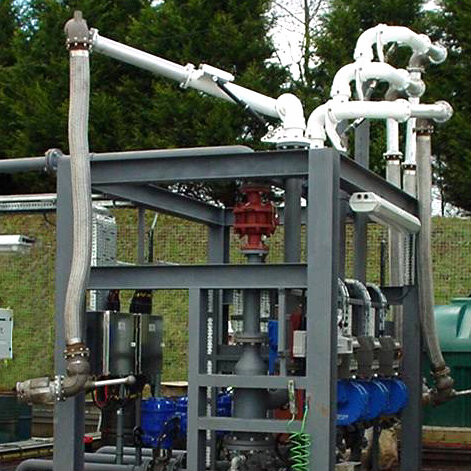

Vapour Recovery Arms



The Liquip Vapour Recovery Arm provides a safe and efficient method of vapour collection during loading.

Vapour recovery arms are fitted with a low pressure drop vapour coupler which allows for vapour recovery during multiple compartment loading.

Features & Benefits
  • A safe, fast and cleaner method for vapour recovery.
  • Removes the potential safety risk of vapour hoses on loading bay floors.
  • Eliminates the need for costly hoses replacements.
  • Vapour loading arms are available in all bottom loading configurations.
  • Uses Liquip's unique gas strut "Velvet Touch" technology.

Recommended products for replacement

    Technical Information

    Counter balance type
    Single or Dual gas struts..

    Range of motion
    Horizontal 360°, Vertical +15° to -15°.

    Mounting connections
    4” Class 150 ANSI RF flange.

    Pressure Ratings
    Working Pressure: 1,000 kPa,(not including coupler).
    Test Pressure: 1,500 kPa (not including coupler).
    Maximum coupling pressure: 500 kPa working.

    Temperature limits
    -30°C to + 60°C.

    Primary seal materials
    Viton B70 or GFLT.

    Dust seal material
    Buna Nitrile or HAN.

    Gasket material
    Klingersil or Viton A.

    Ordering Information

    Contact Liquip to receive a loading arm survey form and discuss any specific requirements you may have.

    Associated Equipment

    Vapour recovery loading components

    • Balance assembly.
    • Gas struts.
    • Straight swivels.
    • Intermediate swivels.
    • Coupler swivels.
    • Vapour couplers.
    • Drop hoses & covers.
    • Butterfly valves.
    • Sightglasses.
    • Spools.
    • Riser pipes.
    • Parking adaptor e.g. VCFPA.
