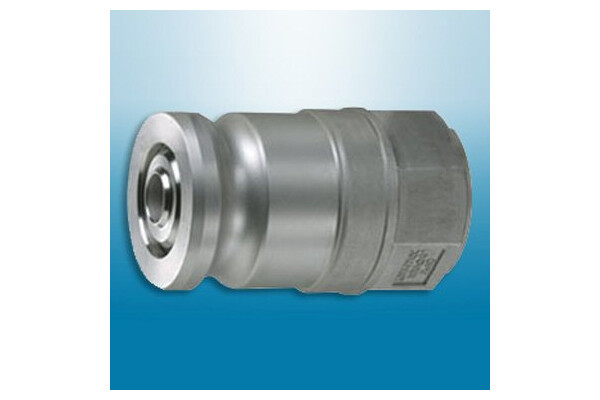

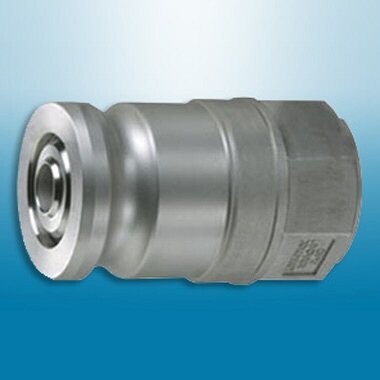

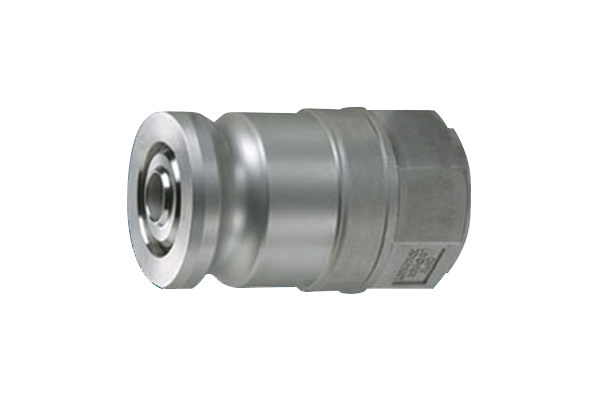

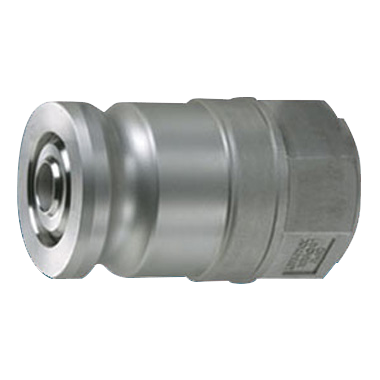

1600AN Series Kamvalok Adaptor

The 1600AN Series Adaptor is specifically designed to mate with OPW Kamvalok® Couplings to help prevent liquid spillage during the connection/disconnection process. The adaptor contains a spring-loaded poppet to assure fast closing and a tight seal.

Why Use Kamvaloks?

Kamvalok Applications

  • Available in 1 ½”, 2” & 3” Sizes
  • Heavy-Duty Construction – Available in aluminum, and stainless steel construction (stainless steel corrosion resistance comparable to 316 Stainless Steel)
  • Female Threads – Can be fitted to either a male pipe end or to a hose fitting
  • Spring-Loaded Poppet Design – Assures fast closing and a tight seal
  • Wide Range of Seals Available – Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz®
  • Single Piece Design – Eliminates a possible leak path.
  • Spill Prevention – Poppet-actuated design can only be opened with a Kamvalok® coupling; designed to provide a tight seal when closed.
  • Reliability of Operation – The simple spring-loaded poppet design and heavy-duty construction provide for reliable, long-life operation.
  • Optimum Flow Rate – Even flow and low pressure drop are achieved by a built-in deflector that reduces turbulence.

Available sizes
Available in 1½”, 2" and 3” Sizes.

Housing Materials
Available in aluminium, and stainless steel construction (stainless steel corrosion resistance comparable to 316 Stainless Steel).

Seal Materials
Range of seals including: Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz®.

Thread
Female Threads – Can be fitted to either a male pipe end or to a hose fitting.

Dimensions



  1 1/2" 2" 3"
A 4-3/4" 4-15/16" 6-17/32"
B 2-1/2" 3-1/4" 4-1/2"
C 1-1/2" 2" 3"
D 2-21/32" 3-1/4" 4-7/8"

Repair Kits

Coming soon

Parts Breakdown

Coming soon

Temperature/Pressure Chart

chart-1700dl-d2000-temp-pressure

Flow Chart

Coming soon

Temperature Chart

Coming soon

Kamvalok Operation

Approvals

AAR Number Description
E129504 1600AN Series Kamvalok Adpater – Threaded
E129505 1600ANF Series Kamvalok Adapter – Flanged
E129507 634B/733DCL Series Kamlok/Autolok Dust Caps



CRN Number Region Description
OA4911.52 Alberta 1.5”, 2”, 3” Aluminum and SST Kamvalok
OA4911.5R1 Ontario 1.5”, 2”, 3” Aluminum and SST Kamvalok

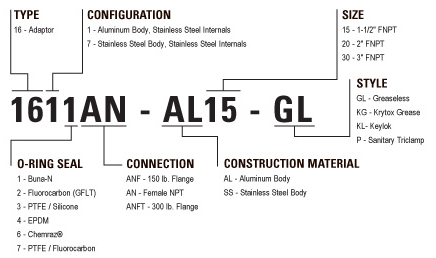

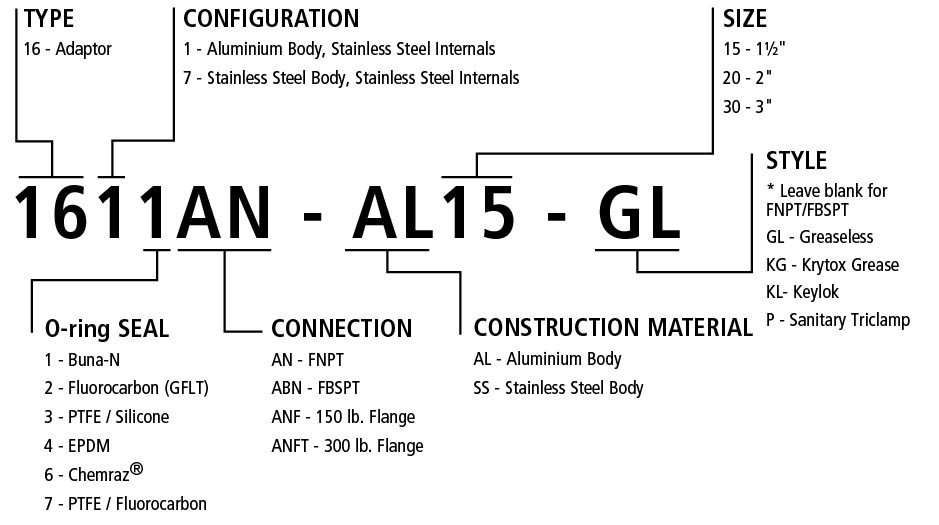

Common Models

1612ABN-AL15: 1½" Kamvalok Adaptor, Aluminium, Viton, BSPT thread.
1611ABN-AL20: 2" Kamvalok Adaptor, Aluminium, Buna, BSPT thread.

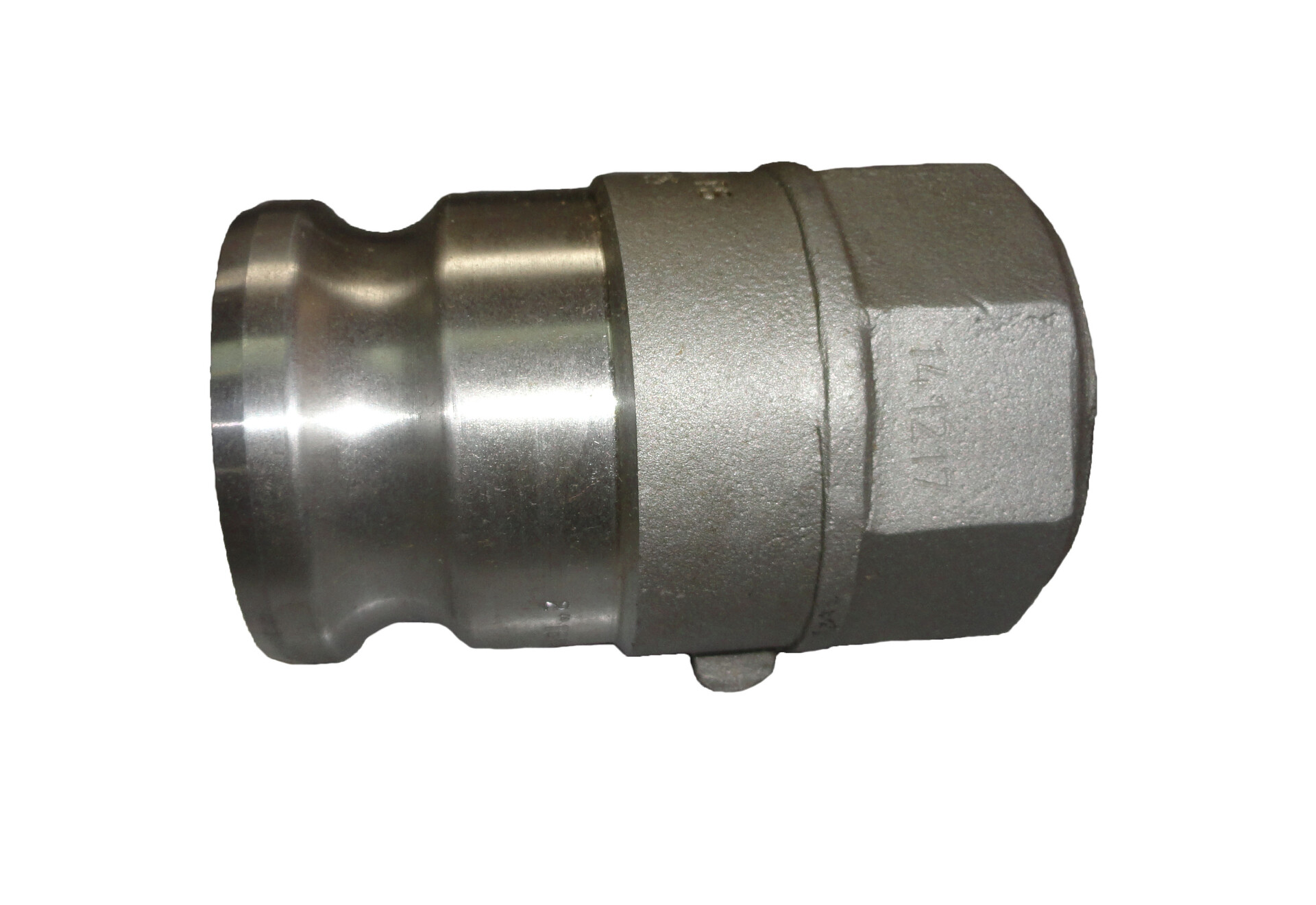

1612ABN-AL20:
2" Kamvalok Adaptor, Aluminium, Viton, BSPT thread.
1612AN-AL20: 2" Kamvalok Adaptor, Aluminium, Viton, FNPT thread.
1613ABN-AL20:
2" Kamvalok Adaptor, Aluminium,  TFE/SIL, BSPT thread.
1612ABN-AL30: 3" Kamvalok Adaptor, Aluminium, Viton, BSPT thread.

1672ABN-SS15: 1½" Kamvalok Adaptor, SST, Viton, BSPT thread.
1672AN-SS20: 2" Kamvalok Adaptor, SST, Viton, FNPT thread.
1672ABN-SS20: 2" Kamvalok Adaptor, SST, Viton, BSPT thread.
1672AN-SS30: 3" Kamvalok Adpator, SST, Viton, FNPT thread.
1673ABN-SS30: 3" Kamvalok Adaptor, SST, PFTE, BSPT thread.
