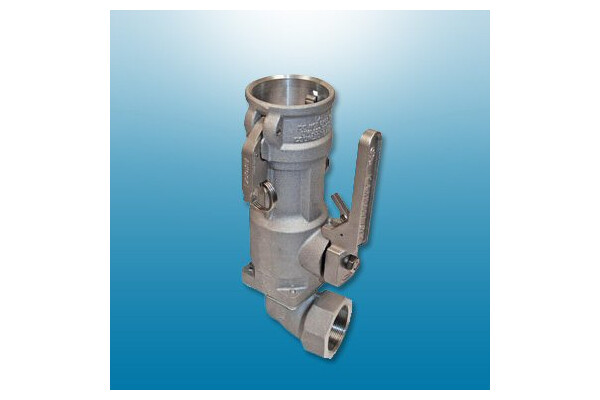

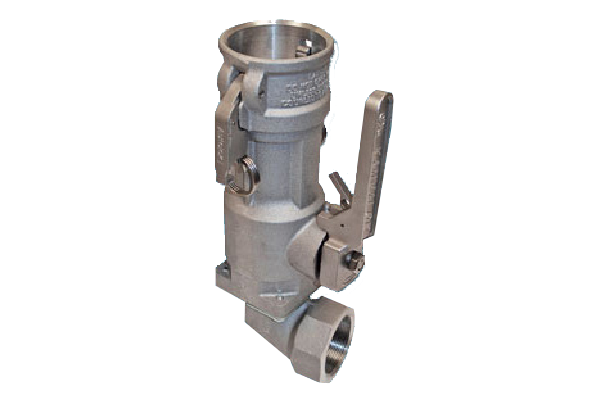

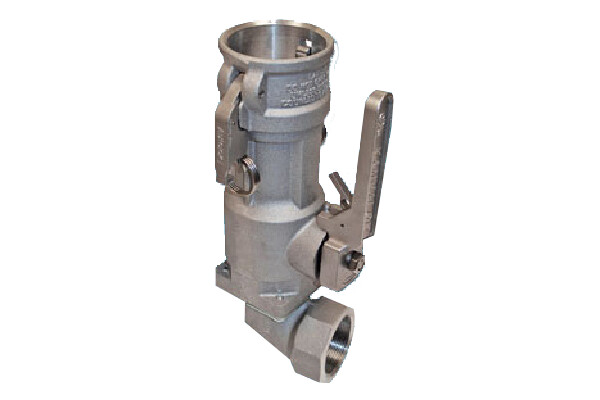

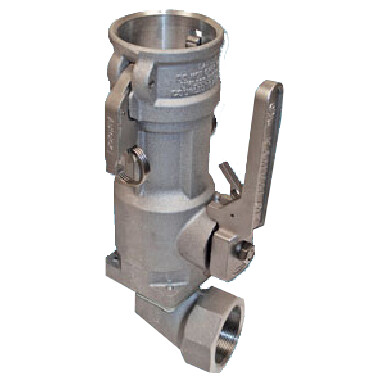

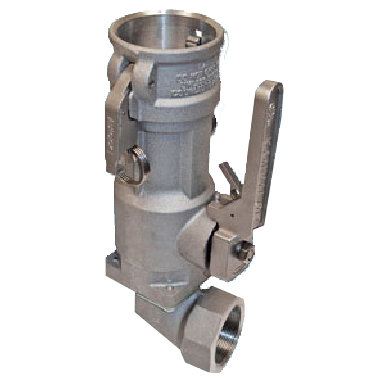

Kamvalok® 1700ESL & 1700ES Series Transportation Couplers



Transport Series Dry Disconnect Couplings are considered the standard of the industry for use on multi-compartment petroleum, solvent and chemical product delivery trucks with an on-board pumping unit.

Applications

Below is a listing of some of the products/applications that have successfully used Kamvalok® couplers.

Chemical Application
Acetone  Tank Cars
Acrylates  In Plant
Acrylic Acid Tank Truck
Acrylonitrile Tank Cars
Acrylonitrile, MMA, Butyl Acrylate
Allyl Chloride
Allyl Lites
Amines (Various) Tank Truck
Anthranilic Acid (AA) Tank Cars
Anthranilic Acid (AA) Tank Truck
Automotive Paint In Plant
Benzene Tank Cars
Benzene Tank Truck
Butyl Acrylate Tank Trucks
Butyl Acrylate, Acrylic Acid, Acrylic Monomers
C5 Raffinate Tank Truck
Crude Acetone  Tank Truck
Crude MBA Tank Truck
CTLO (coal tar light oil) Tank Cars
Cumene  Tank Truck
DCDP  Tank Truck
Diesel Exhaust Fluid (DEF)  Totes
Dow Therm Tank Trucks
Enserv  Totes/trucks
Epichlorohydrin  Tank Cars
Ethelyne Oxide Rail Car
Ethyl Acrylate  Tank Cars
Ethyl Acrylate  Tank Truck
Ethylene Oxide (EO)  Tank Cars
Flex Caustic  Tank Truck
Glycol (deicing fluids)  Tank Trucks
Hydrogen Peroxide  Rail Car
Isoprene  Tank Truck
Isopropyl Alcohol  Tank Truck
Light Paralysis Oil Tank Truck
LRO  Tank Truck
Lubricating Oils  Tank Trucks
Methanol  Rail Car
Mixed Alcohol  Tank Truck
Monochloroacetic Acid, 80% Solution (MCAA)
Nitirc Acid  Tank Truck
Paralysis  Tank Truck
Peperzine  Tank Truck
Piperylene  Tank Truck
Polyol  Rail Car
Propylene Tank Cars
Propylene Oxide (PO)  Tank Truck
Propylene Oxide (PO)  Rail Car
RTBA  Tank Truck
Sour Gasoline  Tank Cars
Spent Caustic  Tank Truck
Styrene   Tank Truck
Styrene   Rail Car
Sulfuric Acid (H2SO4), virgin 96%  Tank Truck
Tebol 99 Tank Truck
Telene (tobacco herbicide)  Totes/trucks
Telone II
Tert-Butyl Hydroperoxide (TBHP)  Tank Truck
Trichlorobenzoic (TBA) Acetone  Tank Truck
Trichlorobenzoic (TBA) Heavies  Tank Truck
WFE Distillate  Tank Truck
WFE Feed  Tank Truck
WFE Heavies  Tank Truck

Features & Benefits
  • Available in 2”
  • Aluminium material of construction.
  • Offered with or without AutolokTM Locking Arms.
  • Features Poppeted Seal Cylinder with Snap-on Nose Seal.
  • Simple Cam and Groove Design with Lever Actuation.
  • 360° Orientation – coupler can be connected in any orientation onto the adaptor.
  • Manufactured in compliance with the highest quality standards of design, materials and construction.
  • Spill Protection - Helps to reduce the hazards involved in the connection/disconnection process of transferring hazardous materials.
  • Autolok™ Locking Arms - Provide added protection with an automatic locking mechanism signaled by a positive click. Uncoupling requires only an easy tug on the lock release.
  • Provides For Total Closed-Loop Loading Capabilities - When used with the OPW 2173N Vapor Recovery Dry Disconnect coupling protects people and property from dangerous and potentially costly exposure by keeping hazardous liquids and vapors in-line and out of the environment.
  • Dual Protection - OPW Kamvaloks® provide automatic closure from both directions - the coupler and the adaptor.
  • Ease of Use - The simple connection and disconnection design and lever actuated internal poppet configuration makes this the first choice for liquid transfer operations.

Recommended products for replacement

    Technical Information

    700ESL

    Design Parameters

    Dimensions

    Materials

    Size In Inches (Nominal) 2"
    A Top of body to centerline of elbow 9-9/16"
    B Centerline of elbow to end of elbow 2-3/4"
    C Distance across cam arms when closed 4-3/8"
    C1 Distance across cam arms when open 8"
    D Centerline of stem to end of handle 4-5/8"
    E Diameter of coupler end 3-33/64"
    F Length of unit 11-3/16"
    G Centerline of coupler to outside of handle 3-5/8"
    H Pipe thread (NPT) 2"
    J Distance across flats of octagon 3"

    Parts Breakdown

    1700ES

    Dimensions

    Parts Breakdown

    2” ES KAMVALOK COUPLER PARTS LIST

    Temperature/Pressure Chart

    Kamvalok Operations

    Approvals

    AAR Number Description
    E129504 1600AN Series Kamvalok Adpater – Threaded
    E129505 1600ANF Series Kamvalok Adapter – Flanged
    E129507 634B/733DCL Series Kamlok/Autolok Dust Caps



    CRN Number Region Description
    OA4911.5R1 Ontario 1.5”, 2”, 3” Aluminum and SST Kamvalok
    Ordering Information

    Order Guide



    Ordering Specification:

    1700ESL

    Prod. No. Size/Description
    1711ESL-AL20 2” KVL Coupler/Elbow Swivel, Locking Arms, Buna-N
    1712ESL-AL20 2” KVL Coupler/Elbow Swivel, Locking Arms, Fluorocarbon
    1714ESL-AL20 2” KVL Coupler/Elbow Swivel, Locking Arms, EPDM

    Order Guide



    Ordering Specification:

    1700ES

    Prod. No. Size/Description
    1711ES-0200 2” Aluminum, Acetal, Buna-N Seals
    1712ES-0200 2” Aluminum, Acetal, Fluorocarbon Seals
    1714ES-0020 2” EPDM Aluminum, Acetal, EPDM
