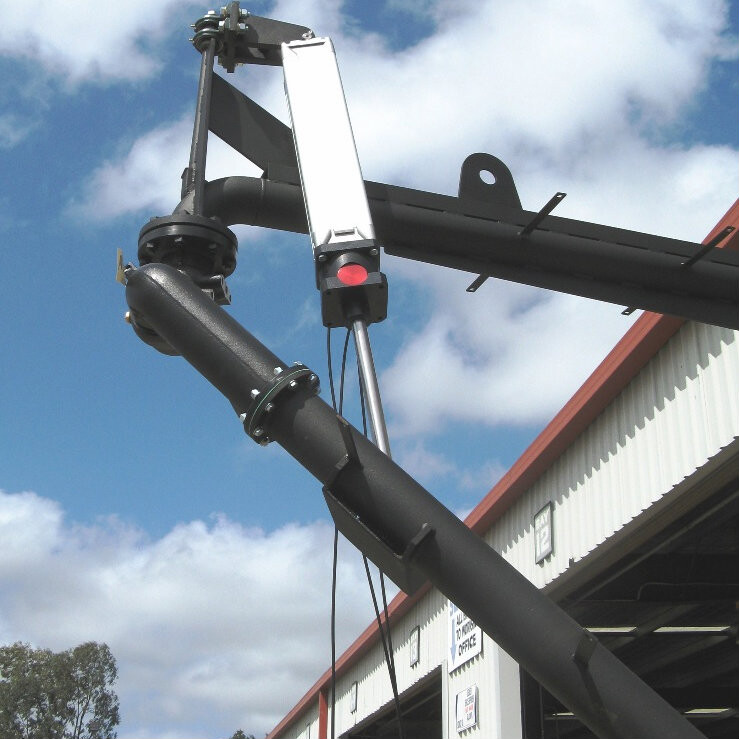

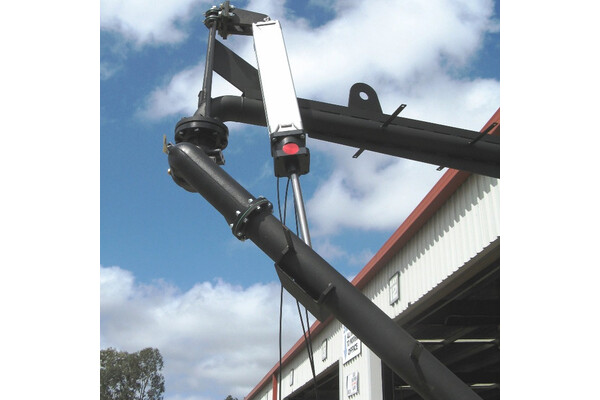

Bitumen Arms

Liquip manufactures loading arms for a wide range of liquid transfer applications. Bitumen top loading arms are amongst the most common loading arms that Liquip designs and builds.

Bitumen loading arms can be designed to meet your applications whilst providing increased efficiency and superior operator safety.

  • Removes the need to have hoses full of product on the terminal floor.
  • High temperature bearing grease and paint ensures longevity of each load arm.
  • Arms are designed so that heat tracing of the arm can be easily installed on site.
  • Allows for fast, safe and efficient Bitumen loading.
  • Constructed with a heavy duty base swivel to support heavy loads.

Materials
All steel construction for temperature compatibility.

Seals
Viton seals supplied as standard.

Temperature Range
Wide range of temperatures available. Contact Liquip for further details.

Loading arm survey forms are available for users to fill out. Survey forms detail all technical requirements for your loading arm needs. These forms can be downloaded once you login to the Liquip website. Click here to obtain a login.

Alternatively, you can contact Liquip to receive a loading arm survey form and discuss any specific requirements you may have.

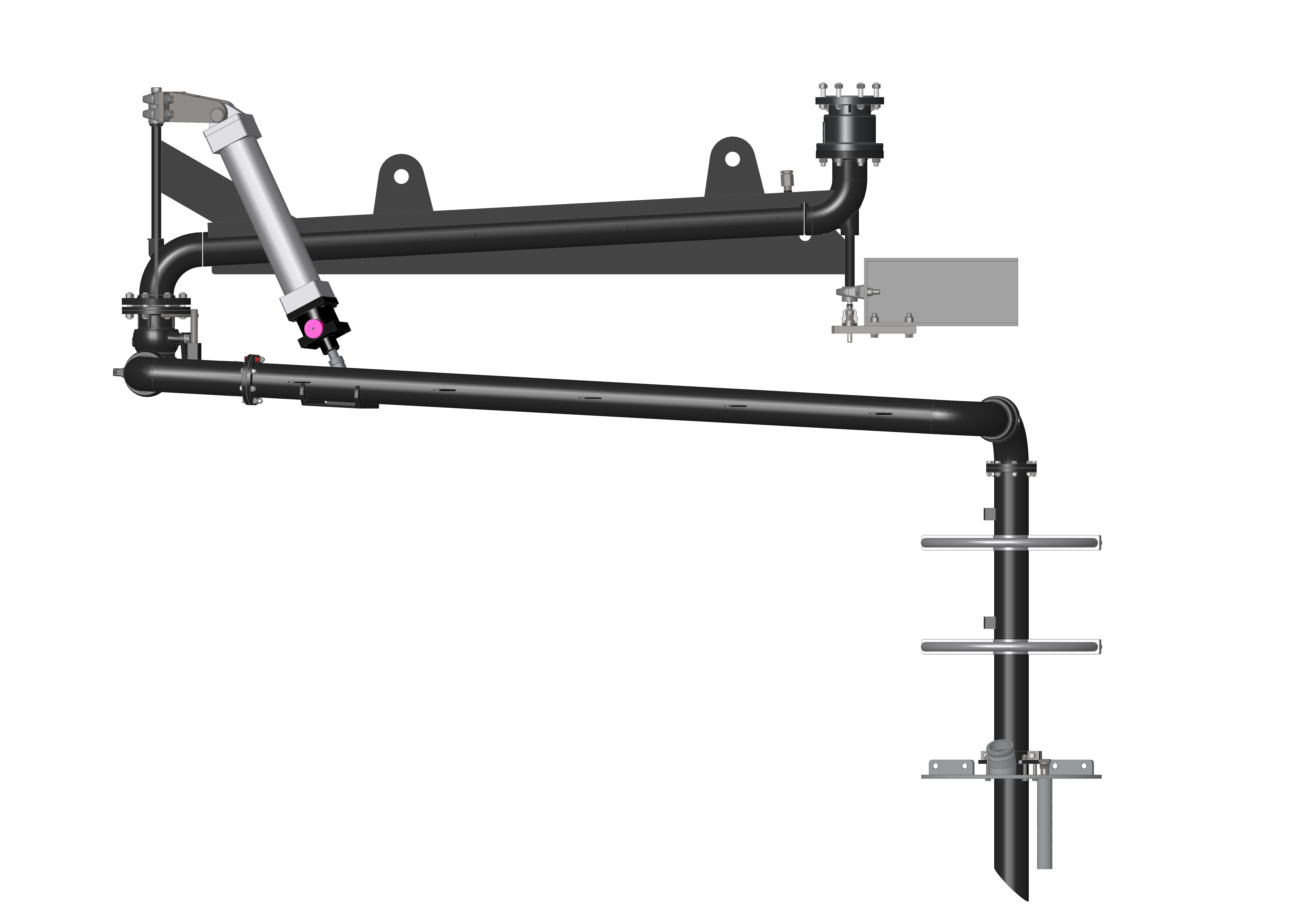

​Bitumen loading components

  • Primary arm with base swivel and thrust bearing support.
  • Balance assembly with pneumatic actuator.
  • Secondary spool.
  • Intermediate swivel.
  • Drop spear drop hose.

Options

  • Vapour plates.
