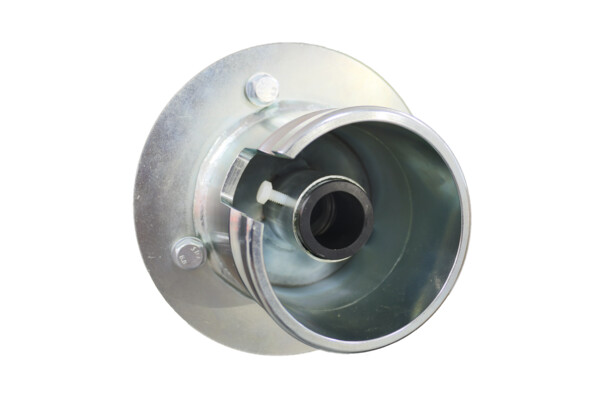

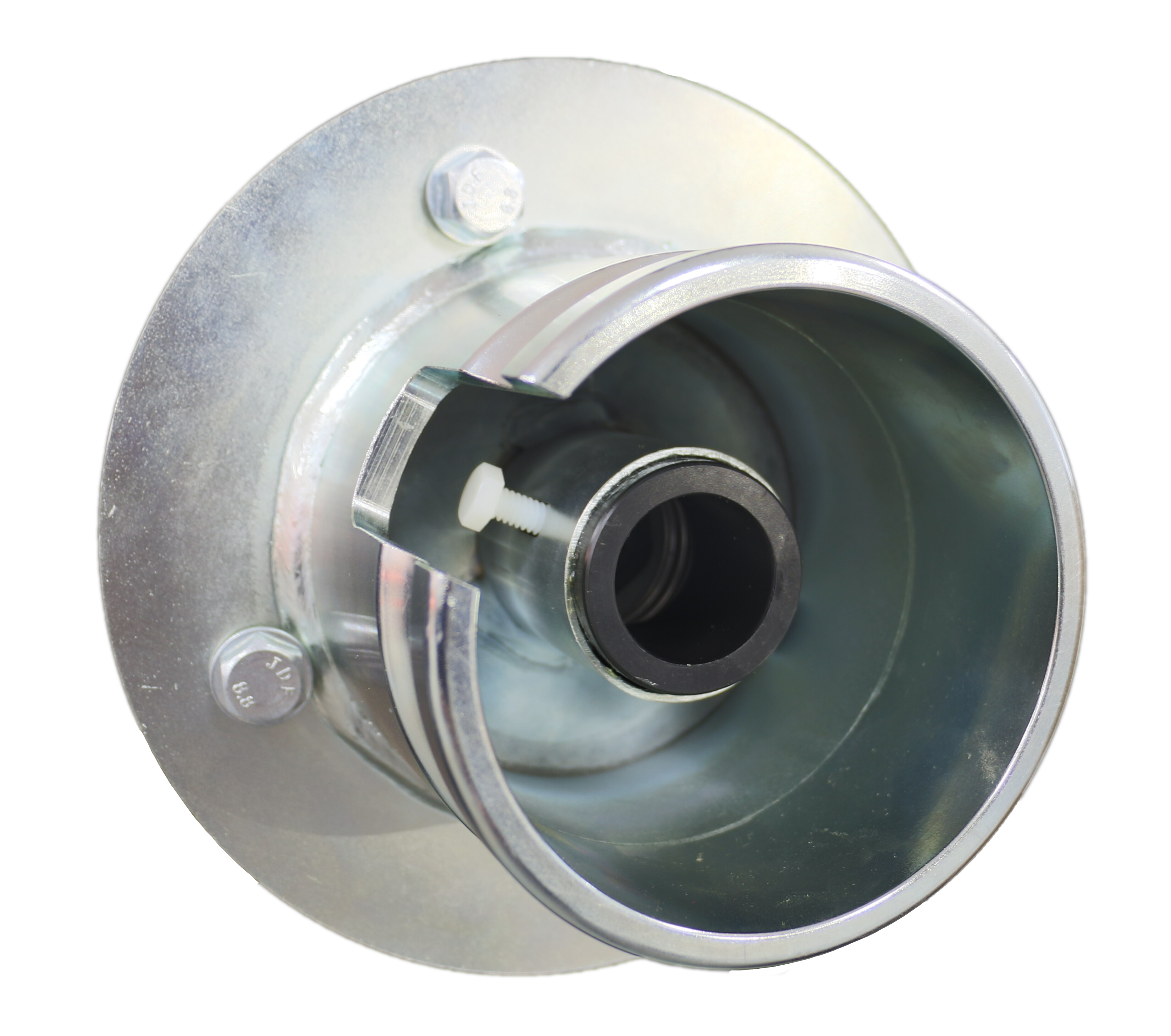

Vapour Parking Adaptor - VCFPA

The VCFPA is a parking adaptor for vapour couplers.

The vapour coupler is coupled and an integral proximity sensor (supplied separately) is actuated to enable system interlocks.

The VCFPA ensures the coupler remains closed when parked.

  • Ensures vapour recovery loading arms or hoses are correctly stowed and secured.
  • Provision is provided for proximity sensor to detect when coupler is safely parked.
  • Compatible with all known variants of vapour couplers.

Materials
-Nosecone - Zinc plated steel.
-Back plate - Zinc plated steel.
-Spring - Stainless steel.

Mounting
Bolts onto bracket supplied by customer using 4 mounting holes. Align parking adaptor so slot in the nose cone is at the top to suit couplers such as VCF500 that have an opening shaft at the top.

May be made free standing (bolt to concrete or skid floor) by special order.

Weight
2kg.

VCFPA: Vapour parking adaptor comes with proximity switch mount (prox switch not included).

VCF075W: 100mm Female Camlock to 100mm Male Hosetail vapour coupling.

VCF500: 4" Vapour Coupler with Dunny Lid. Spigot and blind flange.

5544: Proximity switch (M30).
