Maximum vacuum
90 kPa.
Maximum working pressure
700 kPa.
Mounting
Strainer basket can only be fitted for correct direction of flow via 4" TTMA flanges.
Seals
Nitrilie Seal.
In-line Strainers
Liquip offers a range of lightweight in-line strainers that are typically mounted on prime movers or in mobile pumping systems to protect downstream equipment from debris and foreign objects.
- Protects down stream equipment such as meters and pumps from debris and
foreign objects. - Lightweight inexpensive aluminium suction line strainer.
- Available with a variety of filter mesh sizes to suit various applications.
- Durable cast aluminium design.
- Low pressure drop.
- 100mm (4") TTMA flanged for easy installation.
- Easy cleaning via access through a quick release lid.

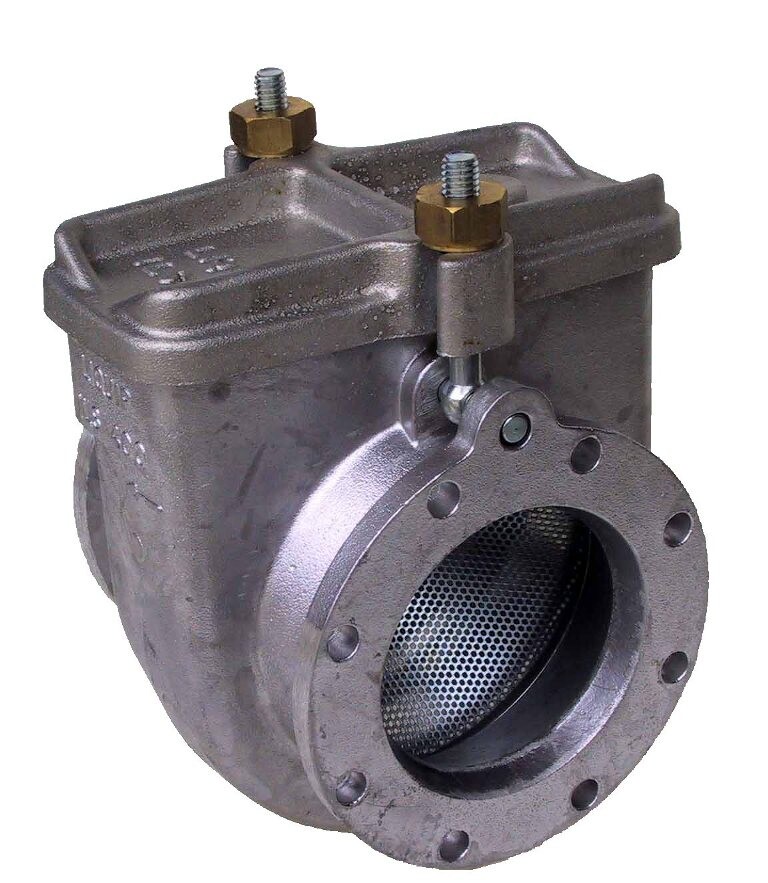

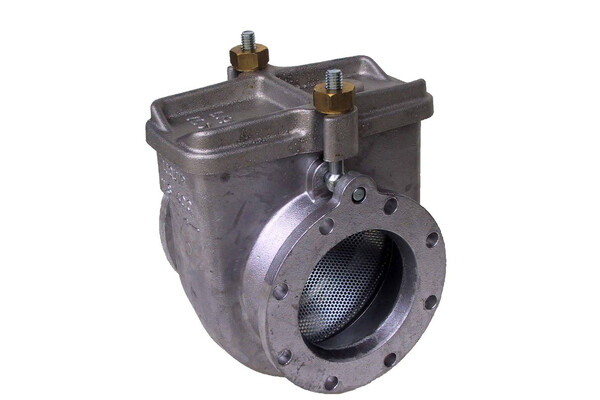

ILS400: Aluminium In-Line Strainer 4" TTMA flange both end with quick release lid for easy cleaning.
ILS400TPA: Aluminium In-Line Strainer 4" TTMA flange both end with quick release lid for easy cleaning with 1/4" NPT boss.
ILS400-3:Aluminium strainer basket, zinc plated finish, no mesh.
ILS400-3-80P:Aluminium strainer basket, stainless steel finish, 80 mesh.
ILS400-3-200P:Aluminium strainer basket, stainless steel finish, 200 mesh.
ILS400-3-350P:Aluminium strainer basket, stainless steel finish, 250 mesh.
ILS400-3-40S:Aluminium strainer basket, stainless steel finish, 40 mesh (typically ARMY spec).
LBV450VG: Aluminium 4" Butterfly Valve.
BF4-SG-40: 4" TTMA sightglass (40 mm thick).
BF4-SG-25: 4" TTMA sightglass (25 mm thick).
