Gantry Plugs & Cables (mil spec) - GPx14

The GPx14 is a 4 pin gantry plug which comes a mil spec plug to allow for quick connection/disconnection.

The GPx14 is designed for use with common industry overfill protection monitors and vehicles including the Liquip RM140 “Overfill Monitor”.

Quick disconnect gantry plug for overfill monitors.
Allows customers to exchange suspected faulty or damaged gantry plugs without needing an electrician.
Cater for up to 8 compartments with 2-wire probes.
Acts as a break-away junction if drivers fail to disconnect gantry plugs and just drives away.
Cable is ten-core either self-coiling or 8m long uncoiled, both with petroleum-resistant outer.
Each core is 32 strand tinned copper.
Robust petroleum-resistant housing which can withstand harsh environments.
High-visibility cable for ease of visibility and safety.

Cable specifications
Resistance R = 0.0178 /m.
Capacitance C = 45 pF/m.
Inductance L = 0.325 FH/m.

Materials
-Aluminium Quick Release plug.
-Polyurethane socket body.
-Stainless steel pins and fittings.
-10 core cable, outer polyurethane.

Weight
4kg (complete kit).

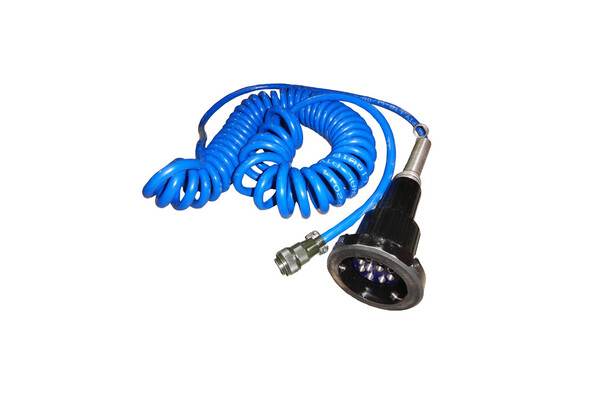

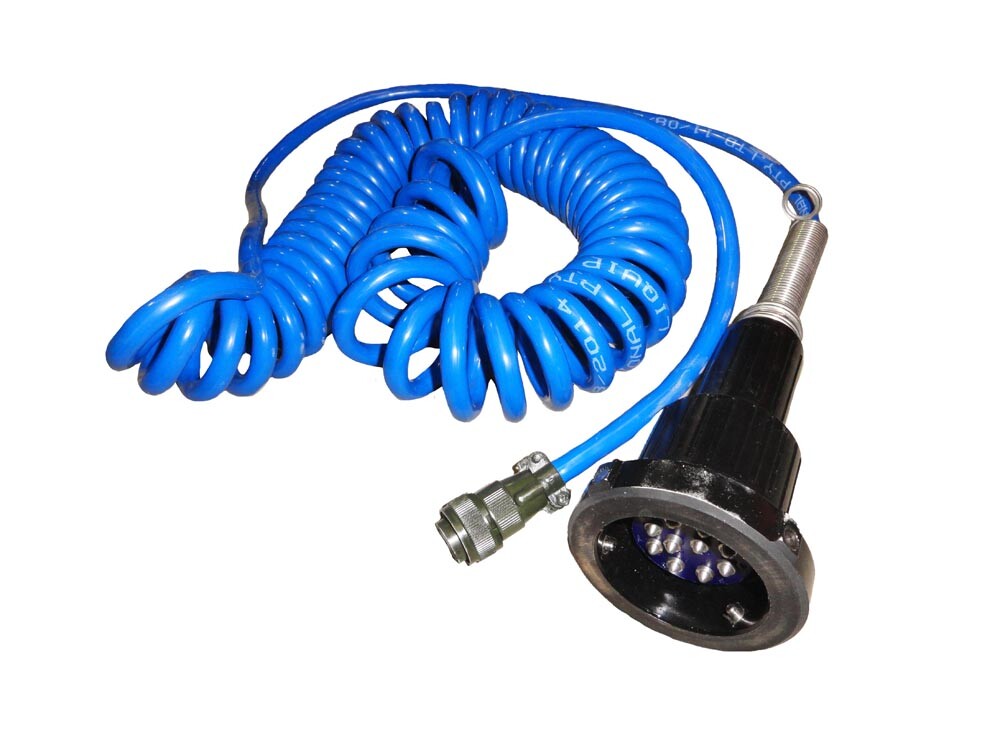

GP114: 4 pin gantry plug with self coiling cable.(Quick Release).

GP214: 4 pin gantry plug with 8m uncoiled cable. (Quick Release).

RM140: Overfill Protection & Grounding Monitor.

Liquip TP series of truck plug.
