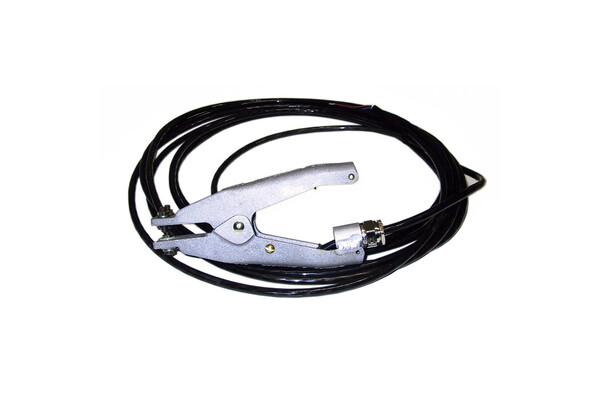

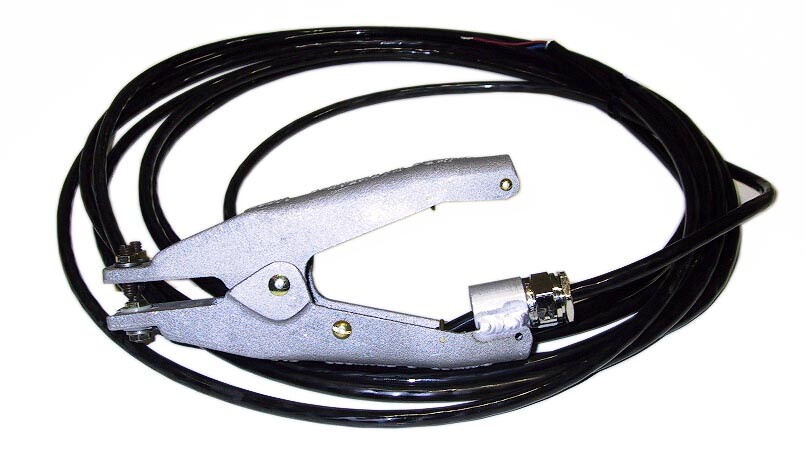

Earth Assurance Clamps



Liquip offers earth assurance clamps to ensure the correct grounding of a truck's chassis prior to loading or unloading to eliminate static build up.



Features & Benefits
  • 8m cable length supplied.
  • Can be supplied with straight cable or self-storing (curly) cable.

Technical Information

Operation
Before connecting any other equipment to truck, attach clamp to a suitable grounding point no more than 12.7 mm (1/2") thick.

 Materials
-Clamp body - cast aluminium.
-Cable - polyurethane sheathed.
-Contacts - cone point grub screws – stainless steel.

Weight
1.3kg (clamp and cable).


Technical Data
8m cable length supplied
EAC201S has straight cable.
EAC202S has self-storing (curly) cable.

Ordering Information

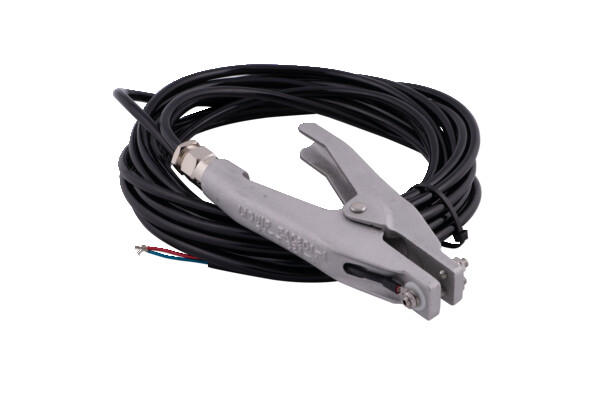

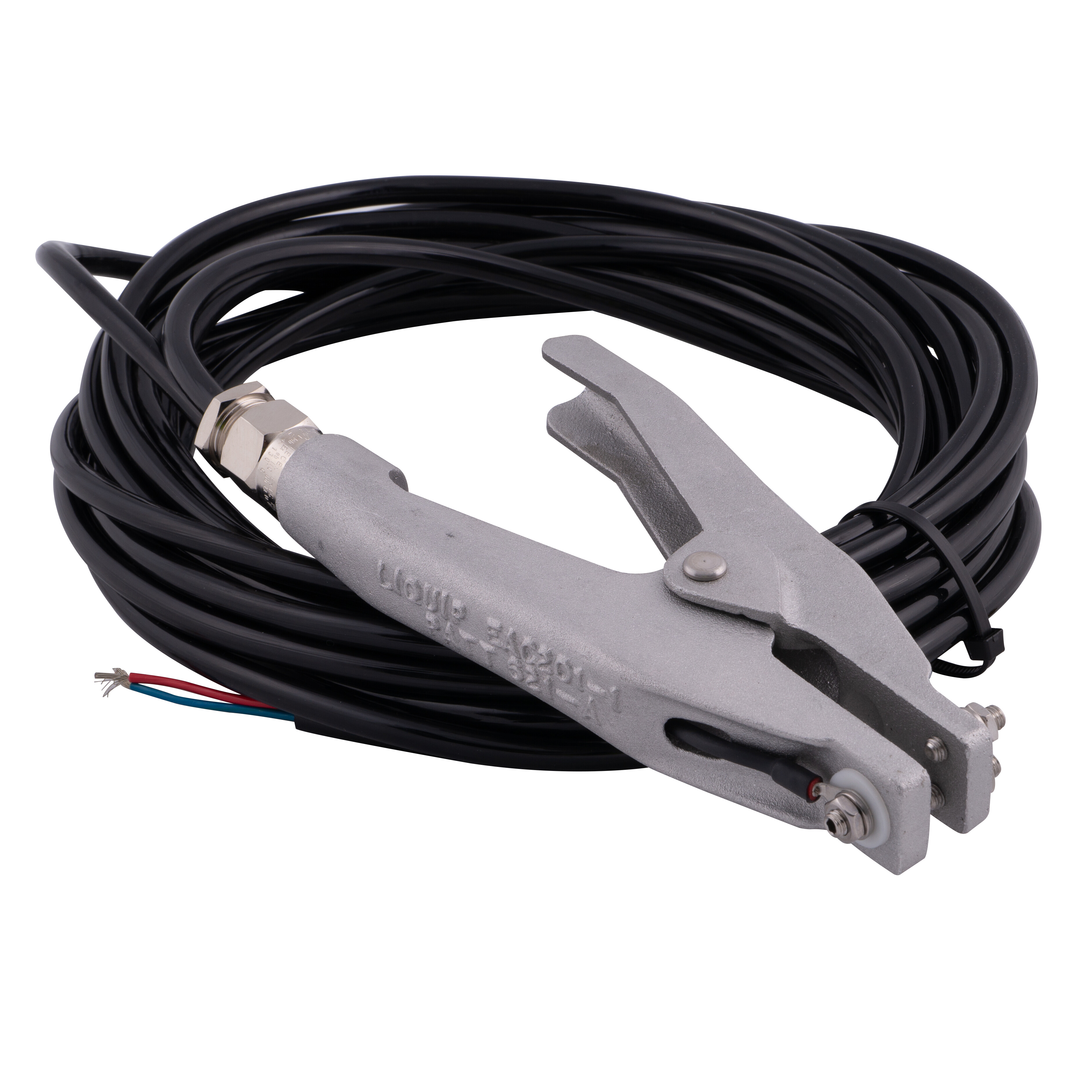

EAC201S: Earth Assurance clamp with 8m straight cable.

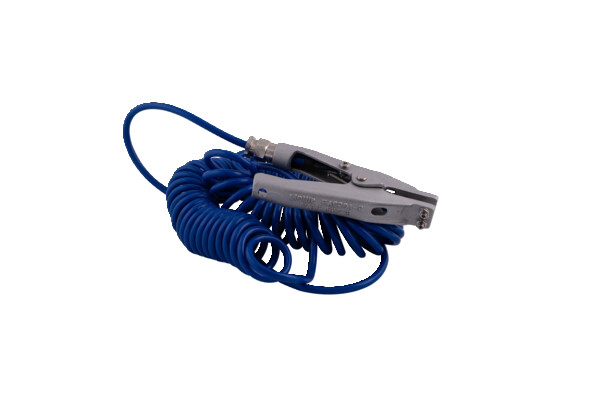

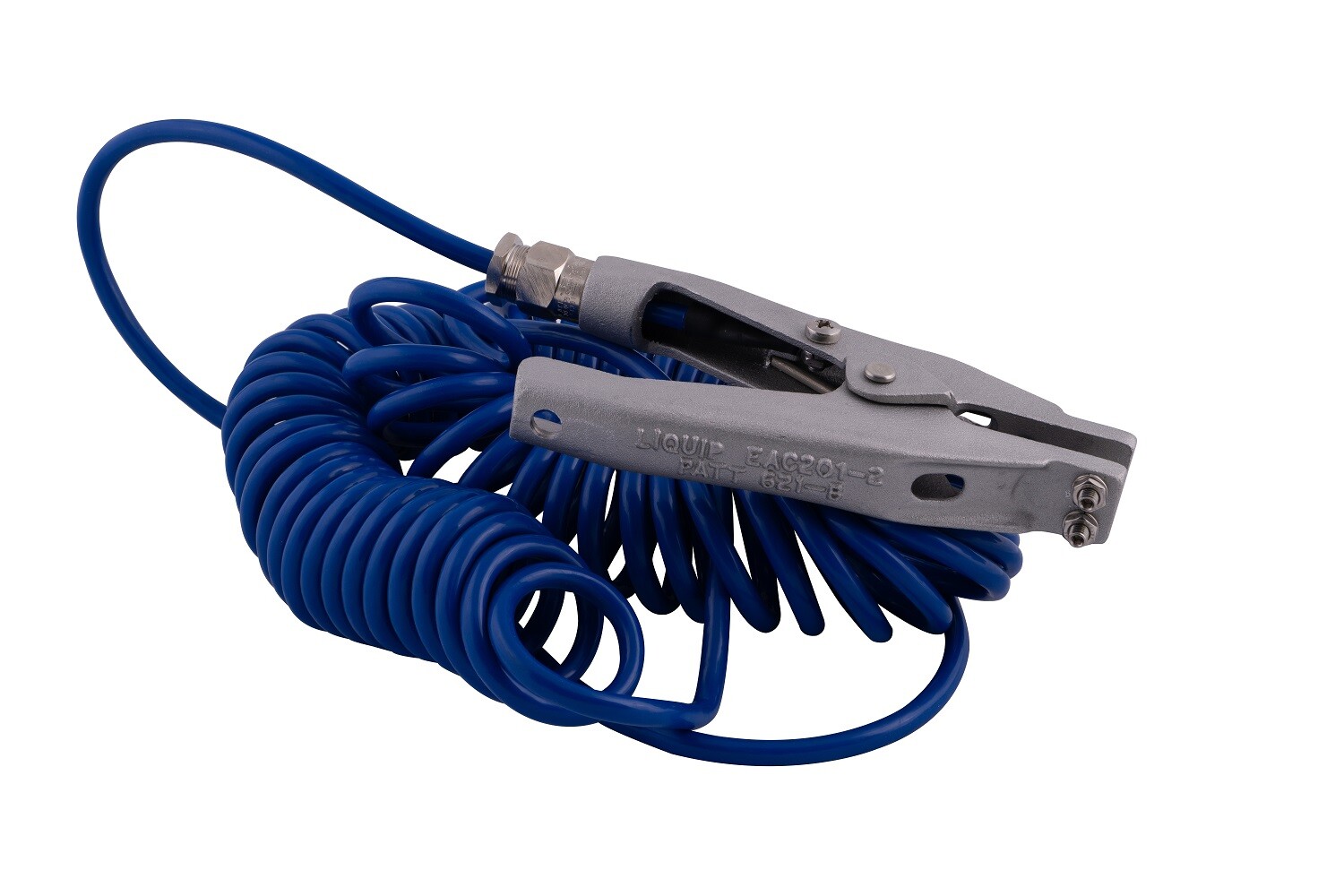

EAC202S: Earth Assurance clamp with 8m self-storing (curly) cable.

Associated Equipment

RM140D: Overfill monitor (typical configuration for Australian market).

RM140E: Overfill monitor (typical configuration for Global markets).
